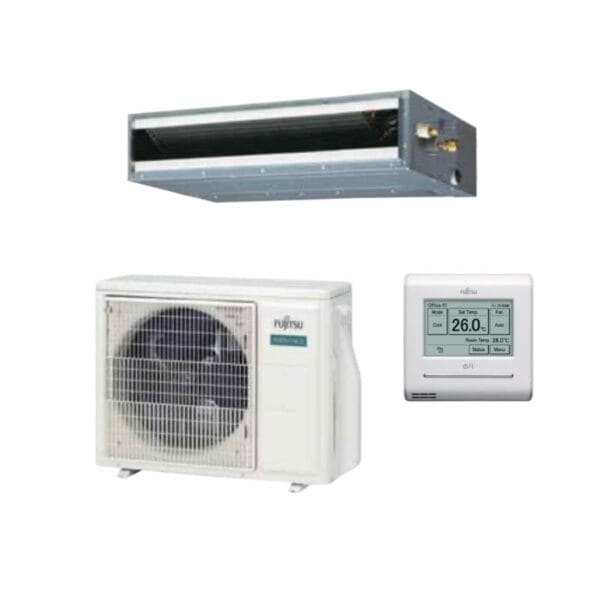

FUJITSU SET-ARTH18KLLAP 5kW Inverter Bulkhead Ducted System ACO

FUJITSU SET-ARTH18KLLAP 5kW Inverter Bulkhead Ducted System

SKU: SET-ARTH18KLLAP / AOTH18KBTA

$2,210.00

Or own it from $85.00 weekly for 6 months*

Or pay in slices, no interest ever

6.35 x 12.7mm (1/4 x 1/2)> Ducted air conditioning> Fujitsu Air Conditioning> Fujitsu Bulkhead Ducted System> Fujitsu Ducted Air Conditioners> View All Ducted Systems Compare

Operation Type	Reverse Cycle
Power Source V/Ph/Hz	240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))	5.00 (0.9 – 5.9)
Heating Capacity kW (Rated (Min – Max))	6.00 (0.9 – 7.5)
Input Power Cooling kW (Rated (Max))	1.38 (2)
Input Power Heating kW (Rated (Max))	1.6 (2.39)
EER Cooling kW/kW	3.62
COP Heating kW/kW	3.75
Star Rating Cooling (0-10) (Hot / Average / Cold)	3 / 3 / 3
Star Rating Heating (0-10) (Hot / Average / Cold)	3 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.868 / 4.508 / 4.656
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.661 / 4.105 / 3.536
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	5.216 / 5.295 / 5.644
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	4.667 / 4.33 / 3.843
Running Current amps (Cooling / Heating)	5.9 / 6.8
Moisture Removal l/hr	2
Indoor Sound Pressure Cooling dBA (High / Quiet)	32 / 27
Indoor Sound Pressure Heating dBA (High / Quiet)	32 / 27
Outdoor Sound Pressure dBA (Cooling / Heating)	48 / 49
Outdoor Sound Power dBA	62
Air Circulation (Indoor – High Fan) Cooling l/sec	261
Air Circulation (Indoor – High Fan) Heating l/sec	261
Indoor Unit Dimensions mm (Height x Width x Depth)	198 x 900 x 620
Indoor Unit Weight kg	20.00
Outdoor Unit Dimensions mm (Height x Width x Depth)	632 x 799 x 290
Outdoor Unit Weight kg	36.00
Piping Connects mm Ø (Liquid / Gas)	6.35 / 12.7
Pipe Length m (Max (Precharged))	30 (20)
Max Height Difference m	20
Operation Range Cooling °CDB (Min to Max)	-10 to 46
Operation Range Heating °CDB (Min to Max)	-15 to 24
Refrigerant Type	R32
Refrigerant Amount g	1,020

Features a compact design to allow for flexible installation in the best available space.

All DCWith All DC, electricity loss is decreased and power consumption reduced.
Auto RestartShould there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
Auto ChangeoverThe unit automatically switches between operating modes based on the temperature setting and room temperature.
Blue Fin Heat ExchangerCorrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
Connectable Distributing DuctSystems are capable of attaching a field-supplied branch ducts distributing the airflow.
Economy ModeLimits the maximum operation current, and performs operation with the power consumption suppressed.
On-Off TimerON-OFF timer can be set to operate once every 24 hours.
Weekly + Setback TimerWeekly + setback timer can set temperature for two-time spans and for each day of the week.
Error Code Display

Ducted air conditioning is surely the ultimate in comfort. The Fujitsu ducted models offer quiet, efficient operation, are easy to maintain, and operated via a wall mounted LCD control that controls all functions of the system.
