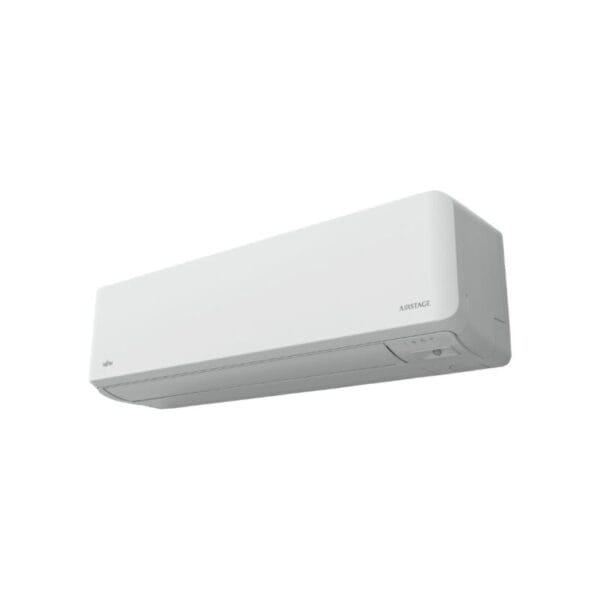

FUJITSU ASTH24KMTD 7.1kW Multi Type System | indoor unit only
Fujitsu Indoor Multi unit. *Does not suit the AOTH24KBCA3.
| Model
Operation Type |
ASTH24KMTD
Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 7.10 (1.1 – 8.3) |
| Running Current amps (Cooling / Heating) | 0.39 / 0.39 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 49 / 29 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 49 / 29 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 325 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 331 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 280 x 980 x 240 |
| Indoor Unit Weight kg | 12.50 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
Description
7.1 kW Cooling
8.0 kW Heating
*Does not suit the AOTH24KBCA3.
Wall Mounted Lifestyle R32 Range
