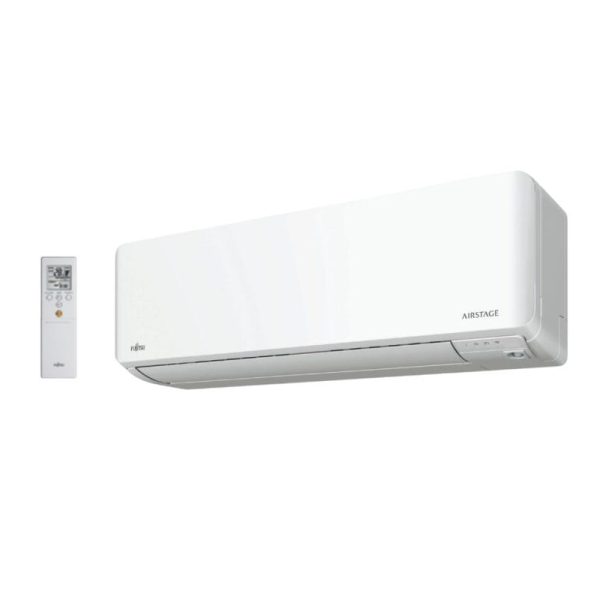

FUJITSU ASTH07KMCD 2.0kW Multi Type System | indoor unit only
Fujitsu Indoor Multi unit
| Model
Operation Type |
ASTH07KMCD
Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 2 |
| Running Current amps (Cooling / Heating) | 0.2 / 0.2 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 38 / 21 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 41 / 22 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 181 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 200 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 270 x 834 x 222 |
| Indoor Unit Weight kg | 10.00 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 9.52 |
| Operation Range Cooling °CDB (Min to Max) | 18 to 32 |
| Operation Range Heating °CDB (Min to Max) | 16 to 30 |
| Refrigerant Type | R32 |
Description
2.0 kW Cooling
2.4 kW Heating
Wall Mounted Lifestyle R32 Range
