Model name |
FMA60RVMA | |||
Power supply | 1 phase, 220-240 V, 50 Hz / 1 phase, 220-230 V, 60 Hz | |||
Indoor air ow rate | H | Cooling | l/s | 300 |
Heating | 300 | |||
Indoor sound pressure level | H/L | Cooling | dB(A) | 35/31 |
Heating | 35/31 | |||
Indoor sound power level | H | Cooling | dB(A) | 49 |
Heating | 49 | |||
Fan speed | 3 steps | |||
Temperature control | – | |||
Dimensions | H x W x D | mm | 245 x 1,000 x 800 | |
Machine weight | kg | 37 | ||
Piping connections | Liquid ( are) |
mm |
ø6.4 | |
Gas ( are) | ø12.7 | |||
Drain | VP 25 (Inside diameter ø25, Outside diameter ø32) | |||
Heat insulation | – | |||
External static pressure | Rated | Pa | 50 (50-150*1) |

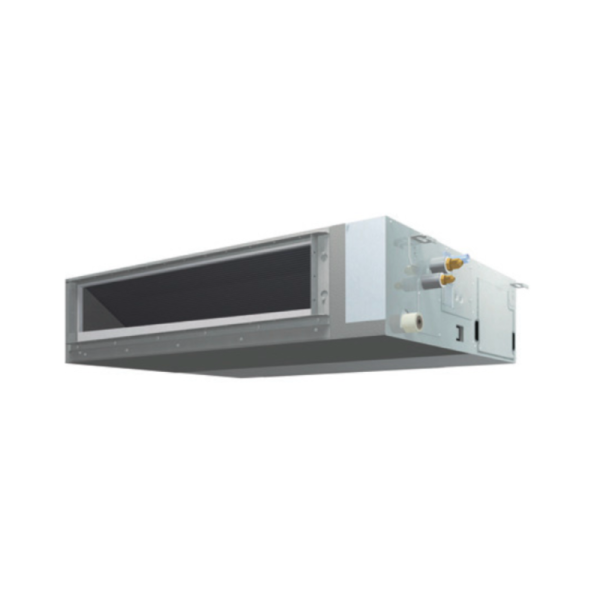

Daikin FMA60RVMA 6kW Reverse Cycle Slim-Line Ducted Multi indoor unit only
6.0 kW Cooling
6.0 kW Heating
Daikin FMA60RVMA 6kW Reverse Cycle Slim-Line Ducted Multi indoor unit only
Controller BRC1E63
Concealed Installation
The duct-connected type can be hidden inside the ceiling to create a clean exterior. It is suitable for living rooms with shallow tray ceilings or areas requiring a discreet appearance. Low and middle range external static pressure models are suitable for both uses, providing excellent design flexibility.
Compact Installation Height
Low external static pressure models are 200 mm high and require a space of just 240 mm between the drop ceiling and ceiling slab. With these compact measurements, any unit can easily be installed in even shallow tray ceilings.
Auto Fan Speed
Daikin inverter air conditioners automatically operate at low capacity most of the time. Turning your system on and off means it has to operate at higher capacity to cool and warm the room. To save electricity, it is more efficient to continue operation using Auto Fan Speed.
Selecting this function ensures your system operates with maximum efficiency and comfort without any further setting. After adjusting the fan speed to high to rapidly reach the set temperature, it switches to low. It then precisely maintains the room temperature using its inverter.
Click here to view the Brochure of Daikin FMA60RVMA 6kW Reverse Cycle Slim-Line Ducted Multi indoor unit only
Daikin Reverse Cycle Bulkhead Multi Indoor Unit Only
As a global air conditioning leader, Daikin is continually researching and identifying new and innovative ways to improve the performance of our products while simultaneously reducing their environmental impact. Our Super Multi NX multi-split system utilises R-32 refrigerant, which provides higher energy efficiency and lower global warming impact than R410A-based air conditioning.
The Super Multi NX outdoor unit is also capable of efficiently sharing capacity between several indoor units. Each indoor unit can be individually controlled to suit your specific requirements. This means airflow, temperature settings and scheduling can all be adjusted to meet personal preferences, delivering whole house comfort for everyone.
Description
6.0 kW Cooling
6.0 kW Heating
Reverse Cycle | Built-in condensate pump
