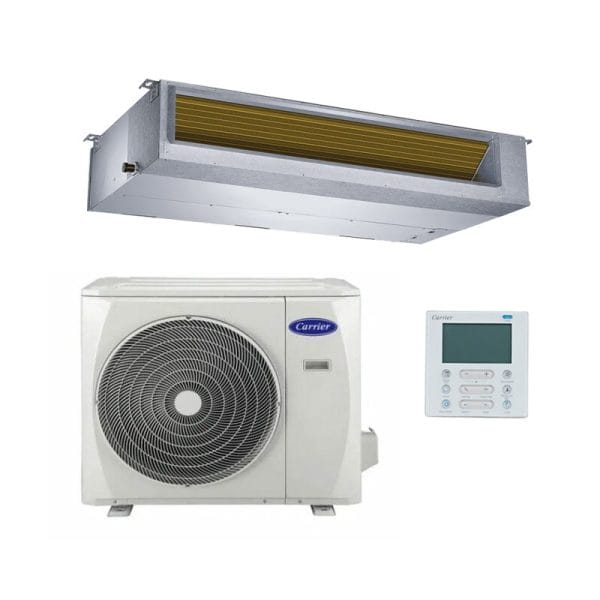

Carrier 53QSM125D8S 12.3kW Inverter Slim Ducted QSM Series Air Conditioner

SKU: 53QSM125D8S (42QSM125D8S / 38QSM125D8S - Wired Controller included with the indoor)

12.3 kW Cooling | 13.0 kW Heating | 1 Phase
Carrier 53QSM125D8S 12.3kW Inverter Slim Ducted QSM Series Air Conditioner
Indoor 42QSM125D8S Outdoor 38QSM125D8S | Wired Controller with Weekly Timer KJR-120C
Low Profile Design 210 mm Height Indoor unit | Built-in Drain Pump | Low Profile Design | Built-in Drain Pump
7 Years Manufacturer’s Warranty

$3,190.00

Or own it from $122.69 weekly for 6 months*

Or pay in slices, no interest ever

INDOOR			42QSM125D8S
OUTDOOR			38QSM125D8S
Refrigerant type			R32
Power supply (Volts-Phase-Hz)			220-240V /1 /50Hz
Max input current		A	31
COOLING	Capacity – rated	kW	12.3
	Capacity – range (min max)	kW	3.75 – 15.24
	Efficiency (rated)	EER	3.45
	Operating current (rated)	A	16.3
HEATING	Capacity – rated	kW	13
	Capacity – range (min max)	kW	3.08 – 18.46
	Efficiency (rated)	COP	4.04
	Operating current (rated)	A	14.4
INDOOR UNIT	Dimension (WxDxH)	mm	1200x874x300
	Net weight	kg	47
	Airflow volume (H/M/L)	l/s	525/428/258
	ESP Rated / max	pa	50/160
	Air inlet duct flange	mm	1101 / 280
	Air outlet duct flange	mm	1044/227
OUTDOOR UNIT	Dimension (WxDxH)	mm	952x415x1333
	Net weight	kg	95.1
	Operating noise (sound power) (H)	dBA (@ swl)	70
	Cooling usable temperature range	oc	0 – 50
	Heating usable temperature range	oc	-20 – 24
PIPE SIZE	Liquid line Ø	(m m)	9.52
	Gas line Ø	(m m)	19
	Coupler style	–	flare
	Drain (inside diameter) Ø	mm	21
	Maximum length	m	75
	Pre-charged length	m	15
	Maximum height difference	m	30

Key Features

Carrier Slim line ducted provide solution in light commercial applications and are ideal for hotels, offices and apartments.

Compact design to fit into most ceiling space
Constant air volume technology for optimal airflow
Very effective static pressure for low profile mid static ducted, upto 160 Pa
Reverse cycle system
New eccentric fan design for improved performance
Quiet operation
Easy to install and maintain
5 year warranty
Drain pump included

Easy Maintenance

A6 duct allows the operator to service the motor from the bottom more easily compared with that from the top.

Carrier 53QSM125D8S 12.3kW Inverter Slim Ducted QSM Series Air Conditioner – Brochure

Slim Line Ducted – QSM series

A slim line ducted unit will fit most light commercial ceiling spaces making it ideal for apartment, hotel, office and connected bulkhead application. These units have a compact design to allow for a perfectly concealed installation. Easy to use and maintain, these units provide both a quite and efficient solution to any small commercial space.

Ducted Air Conditioning is a whole building solution that allows multiple rooms to be filled with a desirable temperate using one system. With the indoor unit being installed inside and using ducts to spread the air throughout the home and an outdoor system being installed outside the building, the Slim line ducted unit will achieve simplicity of use and comfort in every room.
