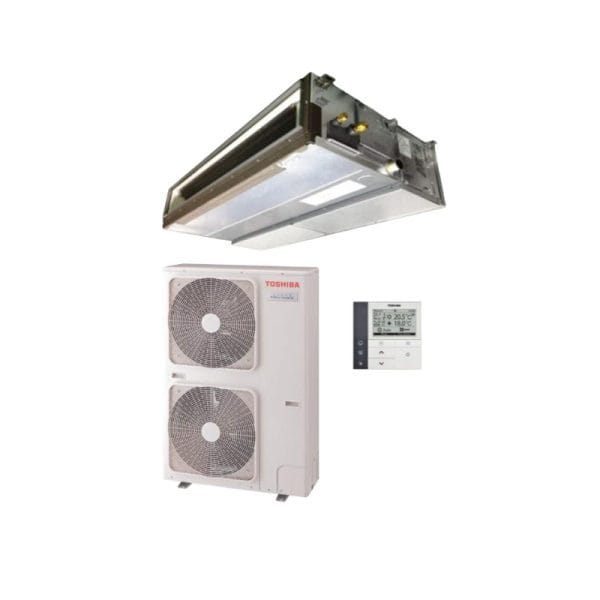

Toshiba GM2801AT8D 24.0kW Digital Inverter High Static Ducted Air Conditioner

SKU: GM2801AT8D / RAV-RM2801DTP-E2 / RAV-GM2801AT8-A / RBC-AMSU51-ES

24.0kW Cooling | 27.0kW Heating
Toshiba GM2801AT8D 24.0kW Digital Inverter High Static Ducted Air Conditioner
Indoor RAV-RM2801DTP-E2 | Outdoor RAV-GM2801AT8-A | Quiet Operation
Built-in Drain Pump | Energy Saving | 3 Phase
Optional Wired controller | Optional Zone Controller
7 Years Manufacturer’s Warranty

Price range: $7,710.00 through $9,010.00

Select Controller

Clear

Optional Plenums

Quantity

Or own it from $296.54 weekly for 6 months*

Or pay in slices, no interest ever

Indoor Model		RAV-RM2801DTP-E2
Outdoor Model		RAV-GM2801AT8-A
Cooling Capacity (Range)	kW	24.0 [4.6 – 27.0]
EER		3.01
Heating Capacity (Range)	kW	27.0 [4.6 – 31.5]
COP		3.59
Maximum Operating Current	A	23.00
Air flow (H / M / L)	l/s	1333 / 1166 / 972
External Static	Pa	50 – 250
Dimensions – Indoor (H x W x D)	mm	448 x 1400 x 900
Dimensions – Outdoor (Hx W x D)	mm	1550 x 1010 x 370
Weight – Indoor / Outdoor	kg	97 / 142
Sound Pressure Level Indoor / Outdoor	dB(A)	46 / 63
Operating Range Cooling	°C db	-15 to 46
Operating Range Heating	°C db	-27 to 15
Pipe Sizes (Liquid / Gas)	mm	12.70 / 28.60
Maximum Pipe Length / Lift	m	100 / 30
Maximum Pre-charged Length	m	30
Power Supply		3ph/380-415V/50Hz
