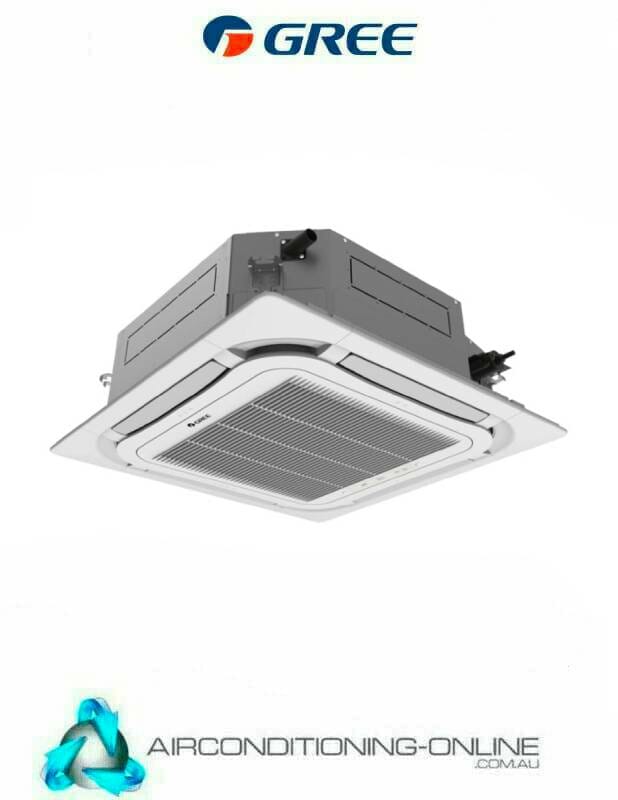

Gree GKH(24)BA-K3DNA2A/I 7.1kW Cassette Indoor Unit Only


Gree GKH(24)BA-K3DNA2A/I 7.1kW Cassette Indoor Unit Only





Capacity Cooling/Heating kW 7.10/8.00
Air Flow Volume l/s 328
Sound Pressure Level dB(A) 39/37/35
Dehumidity Volume l/hr 2.5
Dimension (WxDxH) Outline mm 840x840x240
Package mm 963x963x325
Net weight/Gross weight kg 28/35
Panel Dimension (WxDxH) Outline mm 950x950x60
Package mm 1043x1028x130
Panel Net weight/Gross weight kg 28/35
Connecting pipe

Outer Diameter

Liquid Pipe mm φ9.52
Gas Pipe mm φ15.9


Six Year Warranty

With an industry leading “Six Year, Parts and Labour Warranty”. And there are no strings attached, if your installer is industry qualified that’s ok by Gree.

WiFi Control (Optional)

Wi-Fi optional on all models of the Bulkhead ducted indoors in both Apple and Android. After installing the “Gree Smart” APP on your phone or tablet, you can remotely control the air conditioner from anywhere in the world.

R32 Refrigerant

R32 refrigerant is a better environmental option when compared to R410a as R32 refrigerant has a 68% lower Global Warming Potential (GWP). R32 also has superior energy efficiency, a higher refrigeration capacity and thermal conductivity so the refrigerant charge is also 30% less than R410a.

Greater Power Savings

The G10 Inverter can save approximately 20% more power year on year compared to a fixed speed air conditioner. In addition to this, Gree Air Conditioners use less than 1W of power in standby mode.

Low Noise

The Gree 180° Sine Wave DC Speed Varying Technology offers precise control giving continuous operation and accurate temperature stability.
By operating over a wider frequency the compressor is less stressed giving superior reliability while offering lower noise levels.

Increased Comfort

The superior control of the G10 Inverter means that even in extreme outdoor temperatures, the air conditioner will maintain the set temperature within ±0.5°C.

Dehumidification Mode

The dehumidification mode of the GREE air conditioner reduces the indoor humidity level. It automatically selects the cooling mode based on the difference between the set temperature on the remote control and the actual room temperature. The temperature is adjusted during the decrease in air humidity by repeatedly switching on and off cooling mode or ventilation only. When the dehumidifying mode is enabled, the drip symbol or the word DRY is displayed on the air conditioner control panel.


Click here to view the brochures of Gree Multi Split System


7.1 kW Cooling
8.0 kW Heating

Dehumidification Mode | R32
