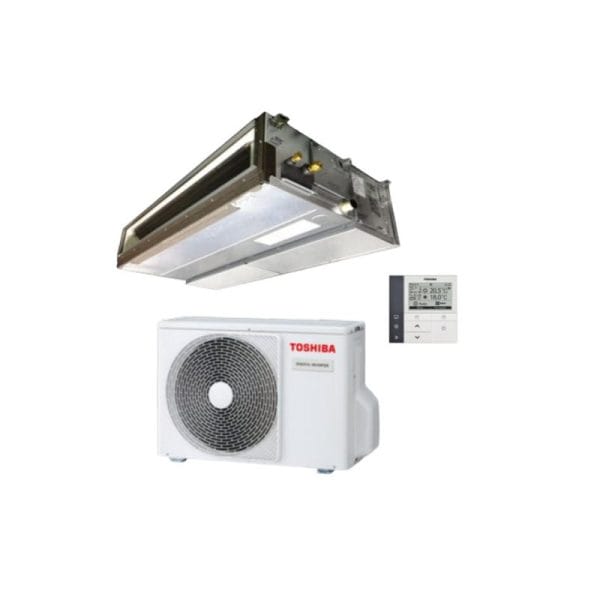

Toshiba RAV-GM561DTP-A / RAV-GM561ATP-A 5.0kW Digital Inverter High Static Ducted Air Conditioner System

SKU: RAV-GM561DTP-A / RAV-GM561ATP-A /RBC-AMS55E-ES

Indoor: RAV-GM561DTP-A

Outdoor: RAV-GM561ATP-A

Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES


Indoor Model RAV-GM561DTP-A
Outdoor Model RAV-GM561ATP-A
Cooling Capacity (Range) kW 5.0 [1.5 – 5.6]
EER 3.36
Heating Capacity (Range) kW 5.3 [1.5 – 6.3]
COP 4.31
Maximum Operating Current A 15.50
Air flow (H / M / L) l/s 388 / 333 / 277
External Static Pa 50 – 150
Dimensions – Indoor (H x W x D) mm 298 x 1000 x 750
Dimensions – Outdoor (Hx W x D) mm 550 x 780 x 290
Weight – Indoor / Outdoor kg 34 / 40
Sound Pressure Level Indoor / Outdoor dB(A) 36 / 48
Operating Range Cooling °C db -15 to 46
Operating Range Heating °C db -15 to 24
Pipe Sizes (Liquid / Gas) mm 6.35 / 12.70
Maximum Pipe Length / Lift m 30 / 30
Maximum Pre-charged Length m 20
Power Supply 1ph/220-240V/50Hz

Description

5.0 kW Cooling
5.3 kW Heating

DIGITAL INVERTER HIGH STATIC | R32
