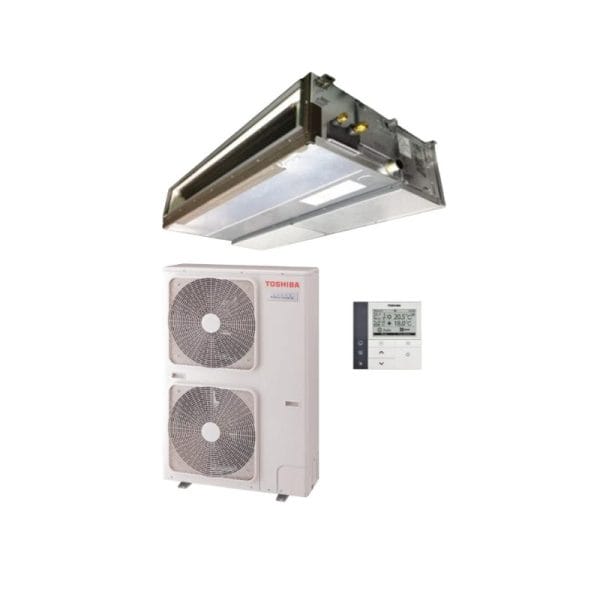

TOSHIBA RAV-GM1401DTP-A / RAV-GP1401ATP-A 12.5kW Super Digital Inverter High Static Ducted System R32 | Single Phase

SKU: RAV-GM1401DTP-A / RAV-GP1401ATP-A/RBC-AMS41E

Indoor:RAV-GM1401DTP-A

Outdoor: RAV-GP1401ATP-A

Wired Control with Weekly Timer : RBC-AMS41E


Indoor Model RAV-GM1401DTP-A
Outdoor Model RAV-GP1401ATP-A
Cooling Capacity (Range) kW 12.5 [2.6 – 14.0]
EER 3.43
Heating Capacity (Range) kW 14.0 [2.4 – 18.0]
COP 4.15
Maximum Operating Current A 29.00
Air flow (H / M / L) l/s 875 / 716 / 569
External Static Pa 50 – 270
Dimensions – Indoor (H x W x D) mm 298 x 1400 x 750
Dimensions – Outdoor (Hx W x D) mm 1340 x 900 x 320
Weight – Indoor / Outdoor kg 42 / 102
Sound Pressure Level Indoor / Outdoor dB(A) 49 / 53
Operating Range Cooling °C db -15 to 52
Operating Range Heating °C db -20 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 75 / 30
Maximum Pre-charged Length m 30
Power Supply 1ph/220-240V/50Hz

Description

12.5 kW Cooling
14.0 kW Heating

SUPER DIGITAL INVERTER HIGH STATIC | R32
