SALE

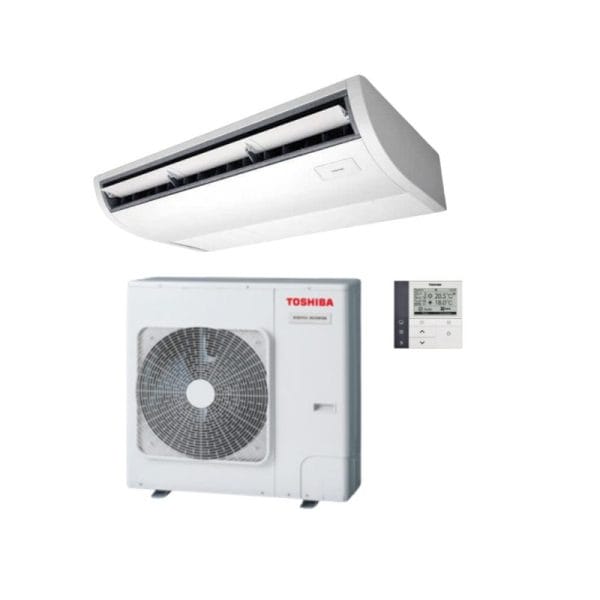

Toshiba GM1101C 10.0kW Digital Inverter Under Ceiling Air Conditioner
10.0 kW Cooling | 11.2 kW Heating
Toshiba GM1101C 10.0kW Digital Inverter Under Ceiling Air Conditioner
Indoor RAV-GM1101CTP-A | Outdoor RAV-GM1101ATP-A | 1 Phase
Re-designed wider flap | Self Cleaning Function | Air Control
Wired controller RBC-AMSU51-ES
7 Years Manufacturer’s Warranty
| INDOOR UNIT | RAV-GM11O1CTP-A | |
| OUTDOOR UNIT | RAV-GM11O1ATP-A | |
| Cooling Capacity Range | kW | 10.0 [3.0 – 11 .21 |
| Heating Capacity Range | kW | 11.2 [3.0 – 13.0] |
| EER | 3.36 | |
| COP | 4 | |
| Maximum Operating Current | A | 22.8 |
| Dimensions – Indoor [H x W x D] | mm | 235 x 1586 x 690 |
| Dimensions – Outdoor [H x W x D] | 890 x 900 x 320 | |
| Weight – Indoor / Outdoor | kg | 37 / 64 |
| Airflow [H / M / L] | l/s | 516 / 375 / 283 |
| Sound Pressure Level Indoor / Outdoor | dB(A) | 44 / 55 |
| Operating Range Cooling | oC db | -15 to 46 |
| Operating Range Heating | -15 to 15 | |
| Pipe Sizes (Liquid / Gas) | mm | 9.52 / 15.88 |
| Maximum Pipe Length / Lift | m | 50 / 30 |
| Maximum Pre-charged Length | 30 | |
| Power Supply | Ph / V / Hz | 1ph / 220-240V / 50Hz |
- Precise Inverter Control
- DC Inverter Technology
- Long Life Filter
- Auto Changeover
- Weekly Scheduling (optional)
- Automatic Operation
- Hot Start Feature
- Filter Sign Indicator
Description
10.0 kW Cooling
11.2 kW Heating
Re-designed Wider Flap | 1 Phase
