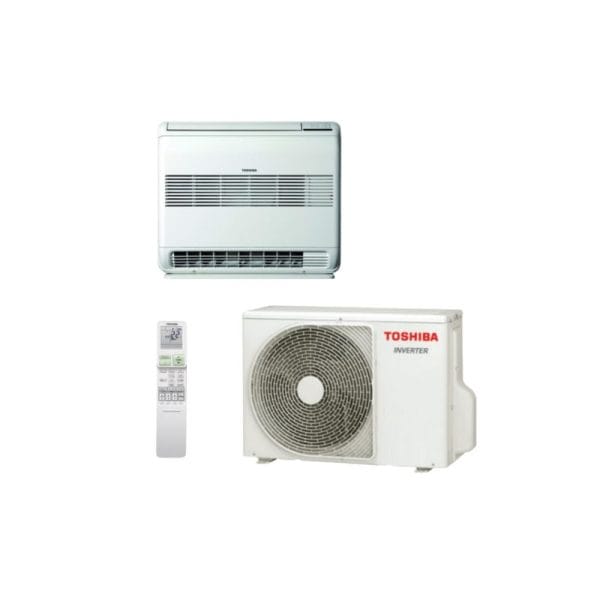

Toshiba RAS-13U2FVG-NZ / RAS-13U2AVSG-NZ 4.0kw Floor Console Digital Inverter
Cooling: 4.0 kW
Heating: 4.2 kW
Acrylic Resin Coated Coil | Self Cleaning Operation | 5 Speed Fan
| Indoor Model | RAS-13U2FVG-NZ | ||
| Outdoor Model | RAS-13U2AVSG-NZ | ||
| Power supply | Ph/Hz/V | 1/50/220-240 | |
| Capacity | Cooling | kW | 4.00 (1.00-4.50) |
| Power consumption | Cooling | kW | 1.10 (0.25 – 1.20) |
| EER/SEER (Cold zone) | Cooling | W/W | 3.64/5.50 |
| Capacity | Heating | kW | 4.20 (1.10 – 5.40) |
| Power consumption | Heating | kW | 1.15 (0.22 – 1.55) |
| COP/SCOP (Cold zone) | Heating | W/W | 3.65/3.50 |
| Indoor unit | |||
| Dimension – (HxWxD) | mm | 600x700x220 | |
| Net weight | kg | 16 | |
| Airflow volume – (High) | Cooling | m3/h | 534 |
| Heating | m3/h | 564 | |
| Sound pressure – (High-quite) | Cooling | dB(A) | 43/39/36/33/28/24 |
| Heating | dB(A) | 43/39/36/32/28/24 | |
| Sound power – (High) | Cooling | dB(A) | 56 |
| Heating | dB(A) | 56 | |
| Fan motor output | w | 41 | |
| Outdoor unit | |||
| Dimension – (HxWxD) | m | 550x780x290 | |
| Net weight | kg | 31 | |
| Refrigerant type | R32 | ||
| Sound pressure – High (Silentl/2) | Cooling | dB(A) | 48 (46/40) |
| Heating | dB(A) | 49 (48/42) | |
| Sound power – (High) | Cooling | dB(A) | 61 |
| Heating | dB(A) | 62 | |
| Usable outdoor temp | Cooling | •c | -0.326086957 |
| Heating | •c | -0.625 | |
| Compressor output | w | 715 | |
| Fan motor output | w | 43 | |
| Pipe size | 6.35(1/4″) | ||
| Liquide side | mm/inch | ||
| Gas side | mm/inch | 9.52(3/8″) | |
| Coupler style | m | Flare | |
| Maximum pipe length | m | 20 | |
| Maximum pipe height | m | 10 | |
| Chargeless pipe length | m | 15 | |
| Additional refrigerant charge | g/m | 20 |
Key Features
- Bi-flow air delivery system (floor heating)
- Silent operation outdoor unit
- Wireless remote control
- R32 refrigerant gas sensor accessory inside FCU (RB-I301-E)
Stylish and modern design
This innovative and compact unit has been designed to be installed on the floor and in low-wall applications, fitting perfectly under window sills.
Smart user interface
Toshiba console has a Smart user interface which enables basic operation without remote controller; on/off, temperature control, operation mode selection and air-outlet selection. It displays in colour the temperature, operation mode and air outlet direction. The LED light glow is adjustable and has a child-lock function that enables to freeze the display panel.
Floor warming mode
Floor warming mode is like the warmth of a fireplace. It blows warmer air than normal heating mode with less uncomfortable blasts of air.
Bi-flow
The two outlets at the top and bottom ensure comfortable heating. You can choose the best air outlet from the following patterns. A unique and original Toshiba feature is the bottom air-flow which directs and spreads air across the floor.
Customise your environment
With the Toshiba WiFi Application, you can easily adjust your console and other Toshiba products. Select heating or dehumidifying modes for your console in seconds. Up to four time periods can can be controlled differently for every day of the week without any hassle or stress.
Through our commitment to world-class efficiency, versatile scalability and leading quality, Toshiba Heat Pumps advances leading-edge technologies to find the most forward-thinking solutions possible for your world.
Consoles are an innovative and compact unit which can be installed on the floor or in low wall applications, ideal for under the window sills or in a low ceiling attic. With a distinctive floor heating function, Toshiba inverters can deliver powerful air flow at floor level for consistent and comfortable room heating.
Description
Cooling: 4.0 kW
Heating: 4.2 kW
Acrylic Resin Coated Coil | Self Cleaning Operation | 5 Speed Fan
