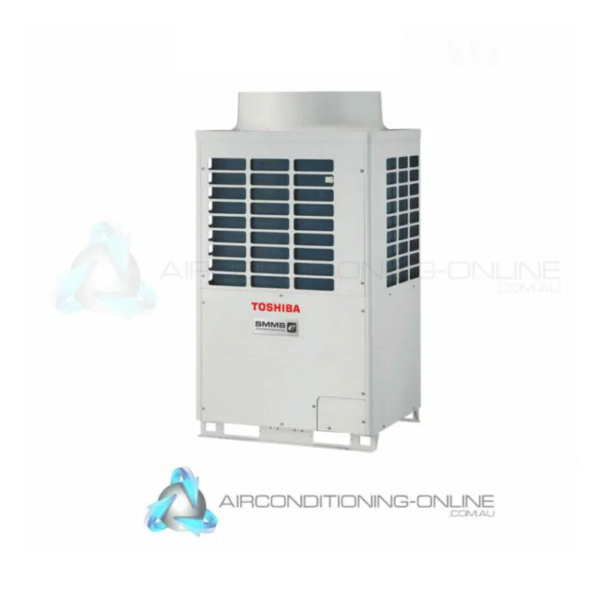

Toshiba MMY-MAP1606HT8P-A 45kW Outdoor Unit Only


Toshiba MMY-MAP1606HT8P-A 45.0kW Outdoor Unit Only | VRF

DC twin-rotary compressor

The Toshiba DC Twin Rotary Compressor is compact and reliable with a wide operating range. It utilises two rollers rotating together making accurate compressor rotation possible, and the low oil release method combines to deliver higher performance efficiencies and peaceful operation. DLC coated dual vane reduces friction due to increased
hardness and high adhesion of the material.

Heat exchanger

Toshiba’s 3-row heat exchanger design, with reduced pipe size from 8mm to 7mm and the increased total number of passes, improves both system performance and
efficiency. While the 3-row heat exchanger design allows the outdoor unit to automatically select the most suitable heat exchanger size and precisely matching the indoor capacity load, its 4-sided design ensures the maximum possible flow rate across the entire coil, improving system efficiency.

Propeller fan

Toshiba’s bat wing fan design increases the delivery of air volume while the anti-eddy ribs and rubber sealing rings work in harmony to reduce air resistance thus
achieving quieter operation.

Inteligent VRF control

The advanced intelligent VRF control continually adjusts the operation of both indoor and outdoor units, based on the feedback from multiple sensors. While the refrigerant flow to each indoor unit is precisely controlled by the outdoor unit ensuring a more even capacity distribution throughout the system. Plus the evaporative and condensing temperature is automatically adjusted to maintain optimum indoor room temperature, regardless of the unit’s load or its physical distance from the outdoor unit.

Click here to view the brochure of Toshiba VRF | SMMSe – 2 pipe heat pump system


45.0 kW Cooling
50.0 kW Heating

DC twin rotary compressor
