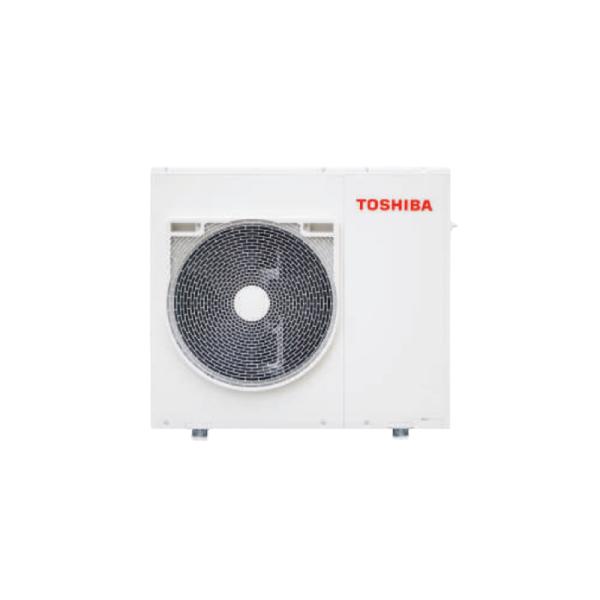

Toshiba Mini Single Fan VRF MCY-MHP0305HT 8.0kW Outdoor Unit Only

SKU: MCY-MHP0305HT

Toshiba Mini VRF MCY-MHP0305HT 8.0kW Outdoor Unit Only

Wider applications in hotter and colder regions are now possible with Toshiba MiNi VRF systems. The operating temperature range for heating goes all the way down to -20ºC, while cooling can be performed with outdoor temperatures as high as 46ºC.





EQUIVALENT (HP) 3HP


Model Name



MCY-MHP0305HT

Outdoor unit type Inverter
Cooling Capacity [*1] kW 8.0
Heating Capacity [*1] kW 9.0
Power supply [*2] A 1phase 50Hz 220 / 230 / 240V
Cooling Running Current A 10.7 / 10.2 / 9.8
Power Consumption kW 2.05
Power Factor % 87
EER 3.62
Heating Running Current A 10.8 / 10.4 / 9.9
Power Consumption kW 2.1
Power Factor % 88
COP 4.24
External Dimensions H x W x D (mm) 900 x 990 x 390
Total Weight Unit Kg 80
Compressor Type Hermetic twin rotary compressor
Motor Output kW 2.72
Fan Unit Motor Output W 100
Air Volume l/s 1,022
Refriderant R410A Charged amount [*3] kg 2.3
High Pressure Switch MPa ON:3.73 OFF:2.90
Protective Devices [*4]
Refrigerant Piping

Refrigerant Piping

Gas Side (mm) Ø15.9
Liquid Side (mm) Ø9.5
Max. No. of Connections Indoor Units 5
Sound Pressure Level Cooling dB(A) 53
Heating dB(A) 54
Operation Temp Range Cooling CDB -5 to 46
Heating CWB -20 to 15

Operating Temperature Range

The compressor design and system controls make the Single Fan MiNi VRF to expand its temperature operating range. This enables wider applications of the system in hotter and colder regions.

Energy Saving
Adopting the efficient DC twin-rotary compressors and variable refrigerant pressure controlled inverter realised greater energy efficient performance.

Z Shaped Heat Exchanger
With installation design ease and user comfort in mind, the Super Slim Ducted comes with its own built-in DC driven drain pump and optional left/right drain discharge ports. The ‘Z-shaped’ heat exchanger arrangement and DC dynamo operated centrifugal fan cleverly combine to produce a space saving low profile unit.

Twin Rotary Compressor
The Toshiba DC Twin Rotary Compressor is compact and reliable with a wide operating range. It utilises two rollers rotating together making accurate compressor rotation possible, and the low oil release method combines to deliver higher performance efficiencies, and peaceful operation.

Installation Flexibility
Air intake and discharge is interchangeable to either rear or bottom configuration, all combining to produce quieter operation for enhanced user comfort and installation simplicity.
The electrical box is also conveniently positioned outside the unit providing straightforward access to power and communications terminals.

Propeller Fan
Toshiba’s bat wing fan design increases the delivery of air volume while the anti-eddy ribs and rubber sealing rings work in harmony to reduce air resistance thus achieving quieter operation.

Click here to view the brochure of Toshiba Mini Single Fan VRF

Description

8.0 kW Cooling
9.0 kW Heating

DLC Coated Vane | Single Fan
