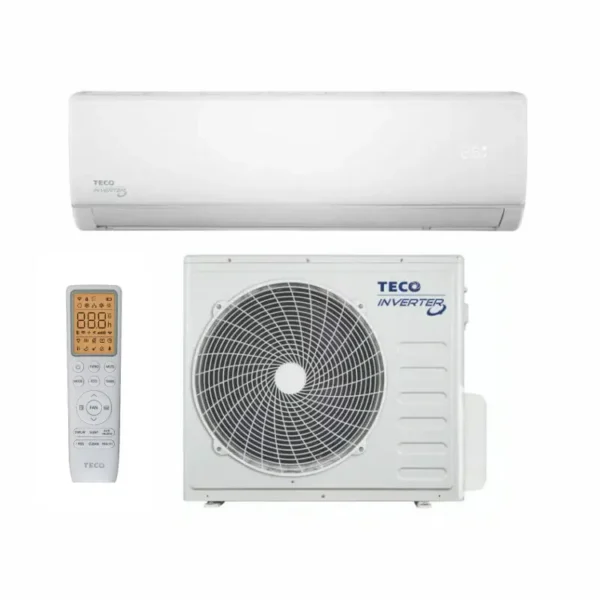

TECO TWS-TSO26H3DVKT 2.6kW Split system Air Conditioner

TECO TWS-TSO26H3DVKT 2.6kW Platinum 3D VKT Series Split system Air Conditioner

TECO TWS-TSO26H3DVKT 2.6kW Platinum 3D VKT Series Split System Air Conditioner

0 out of 5

$755.00

2.6 kW Cooling | 3.3 kW Heating
TECO TWS-TSO26H3DVKT 2.62kW Platinum 3d Dc Split system Air Conditioner
Indoor TWS26H3DVKT Outdoor TSO26H3DVKT | WIreless Controller
Eco Mode | GOLD Fin Protection | I-FEEL Follow Me Mode
Built-In WiFi Control
Voice Control Alexa and Google
7 Years Manufacturer’s Warranty

SKU: TWS-TSO26H3DVKT TWS26H3DVKT / TSO26H3DVKT

Or own it from $29.04 weekly for 6 months*

Or pay in slices, no interest ever

Add to Wishlist

TECO Model No.			TWS-TSO26H3DVKT
TECO Model EAN Code			9346998007357
TECO Model No.			TWS26H3DVKT
TECO Model EAN Code			9346998007364
TECO Model No.			TSO26H3DVKT
TECO Model EAN Code			9346998007371
Rated cooling capacity		W	2620 (800~3700)
Rated heating capacity		W	3300 (600~4400)
AEER for cooling		W/W	4.6774
ACOP for heating		W/W	4.4287
TCSPF for cooling	hot&humid		7.019
	mixed		6.158
	cold		6.293
Energy star for cooling	hot&humid		5.5
	mixed		4.5
	cold		4.5
HSPF for heating	hot&humid		5.007
	mixed		4.646
	cold		4.249
Energy star for heating	hot&humid		3.5
	mixed		3.0
	cold		2.5
Operation temperature range		℃	16℃～31℃
Ambient temperature range	Outdoor	℃	Cooling:15-50/Heating:-15-24
Ambient temperature range	Indoor	℃	Cooling:17-32/Heating:0-27
Moisture removal		L/H	0.8
Sound Power	Indoor	dB(A)	55
Sound Power	Outdoor	dB(A)	61
Pressure	High(DP)	MPa	4.3
Pressure	Low(SP)	MPa	1.2
Electrical Data
Power supply		V	220-240V~50Hz
Voltage Range		V	165~265
Running current	Cooling	A	3.9(0.4~5.8)
Running current	Heating	A	3.4(0.5~5.9)
Rated input	Cooling	W	550(100~1300)
Rated input	Heating	W	735(110~1400)
Max current cooling/heating		A	5.8/5.9
Max input cooling/heating		W	1300/1400
Standby power		W	3
Refrigerating System
Refrigerant		kg	R32/0.520
Fan System
Indoor air circulation Cooling/heating		m³/h	600/620
Indoor fan speed H/M/L	Cooling	rpm	1270/1150/1050/900/780/700/600
	Heating	rpm	1220/1150/1100/980/920/850/800
	Dry	rpm	700
	Sleep	rpm	700/850
Indoor fan motor output		W	25
Outdoor fan speed		rpm	1000
Outdoor fan motor output		W	33
Connections
Connecting Pipe	Gas	Inches	Φ9.52(3/8”)
Connecting Pipe	Liquid	Inches	Φ6.35(1/4”)
Max. Pipe length		Meters	15
Max. Height difference		Meters	10
Connecting Wiring	Size x Core number		4×0.75
Others
Suitable area (Reference only)		m²	9~16
Net dimensions (W x D x H)	Indoor	mm	811×292×203
Net dimensions (W x D x H)	Outdoor	mm	795×305×549
Net weight	Indoor	kg	9
Net weight	Outdoor	kg	23
Packing dimensions (Wx D x H )	Indoor	mm	885×366×275
Packing dimensions (Wx D x H )	Outdoor	mm	835×328×575
Gross weight	Indoor	kg	11
	Outdoor (without pipe)	kg	25
	Outdoor (with pipe)	kg	26
Loading Capacity	20’/40’GP/40’HQ		112/240/275

Gold Fin Protection
Gold Fin Protection helps prevent rust on outdoor coils, making them last longer and work better. It also means the indoor coils clean themselves more effectively.

Energy Efficient Performance
Enjoy big savings on your energy bills with this air conditioner’s high efficiency rating with 5.5 Star rating in the Hot Zone.

Built-in Wi-Fi
Easily control your air conditioner from anywhere using your smartphone or tablet, and it also works with smart speakers like Google Home and Amazon Alexa.

Clean Indoor Self-Cleaning
The indoor coil cleans itself by removing dust and dirt, ensuring better air quality.

3D Air Flow & 4 Way Auto Swing
Experience comfortable and even temperature with advanced air flow technology that cools or heats your room quickly and evenly.

2.6kW Inverter Reverse Cycle
Efficiently cools and heats your home, ensuring year-round comfort.

Louvre Memory
The air conditioner remembers the last louvre angle you set, so you don’t have to adjust it every time.

Service Friendly
This means it’s simple to maintain. The air conditioner has two key features: Built-in diagnostics: The unit can check itself for any problems and tell you what needs fixing. Accessible panels: The unit is designed so you can easily open it up, making it straightforward for you or a technician to access the parts that need attention.

ECO Mode & Silent Mode
Save energy and enjoy quiet operation for efficiency and comfort.

Turbo Fan Mode & Cold Air Prevention
Quickly reach your desired temperature and avoid cold blasts when starting the heater.

Auto Restart & Timer Mode
Automatically restore settings after a power outage and schedule the unit to turn on or off at your preferred times.

Scan to Install & App Control
Simplify installation and control your air conditioner with the SmartLife-SmartHome app, offering remote management for ultimate convenience.

Interactive Digital Display
Easily check and adjust all settings with the clear digital display, keeping you informed and in control.

R32 Refrigerant
Doesn’t harm the ozone layer and has a smaller impact on global warming. Plus, it helps the air conditioner perform more efficiently.

D.R.E.D. Connection
This feature allows your air conditioner to link up with special programs offered by electricity providers in Queensland. By joining these programs, you can help manage electricity use and potentially save money on your energy bills.

Long Distance Air Flow
Powerful fan speeds distribute air evenly across the room.

Refrigerant Leak Detection
Safeguards the compressor by detecting refrigerant leaks.

High Density Filter
Captures more dust and pollen to ensure cleaner air.

Sleep Mode
Adjusts temperature gradually to maintain comfort and reduce energy costs during sleep.

TECO TWS-TSO26H3DVKT 2.62kW Platinum 3D VKT Series Split system Air Conditioner – Brochure

Description

2.6 kW Cooling
3.3 kW Heating

Built in Wifi | Eco Mode functionality

Q1: What are the main features of the TECO Platinum 3D DC Split System Air Conditioner?

The TECO Platinum 3D DC Split System Air Conditioner features built-in Wi-Fi, Voice Control with Google Home and Amazon Alexa, Gold Fin Protection, 3D Air Flow, 4 Way Auto Swing, I-FEEL Follow Me Mode, Eco Mode and a self-cleaning indoor coil.

Q2: Is the TECO Platinum 3D DC Split System Air Conditioner energy efficient?

Yes. The TECO Platinum 3D DC Split System Air Conditioner offers energy-efficient inverter performance, a high efficiency rating, Eco Mode and Sleep Mode to help reduce energy consumption. It also uses R32 refrigerant and provides efficient cooling and heating throughout the year.

Q3: Does the TECO Platinum 3D DC Split System Air Conditioner support Wi-Fi and smart control?

Yes. The TECO Platinum 3D DC Split System Air Conditioner has built-in Wi-Fi control through the SmartLife-SmartHome app and supports voice control with Amazon Alexa and Google Home. It also includes Auto Restart and Timer Mode for added convenience.

Q4: Does the TECO Platinum 3D DC Split System Air Conditioner provide quiet and comfortable operation?

Yes. The TECO Platinum 3D DC Split System Air Conditioner includes Silent Mode, Sleep Mode, 3D Air Flow and 4 Way Auto Swing for comfortable and even air distribution. Its High Density Filter also helps capture dust and pollen, while the self-cleaning function supports cleaner indoor air.

Q5: Not sure what size air conditioner you need?

Use our free Air Conditioning Calculator & Size Guide as a starting point to estimate the right capacity for your room or home. Please note this calculator is a guide only — actual requirements may vary depending on your ceiling height, insulation, window size, orientation, and local climate conditions.

For a more accurate sizing recommendation tailored to your specific home or office, we recommend booking a quote with our team. Our air conditioning experts will assess your space and help you choose the perfect TECO Platinum 3D DC Split System Air Conditioner unit with confidence — ensuring maximum comfort, efficiency, and value for money.

For more information about the TECO Platinum 3D DC Split System Air Conditioner, and available models, click here.
