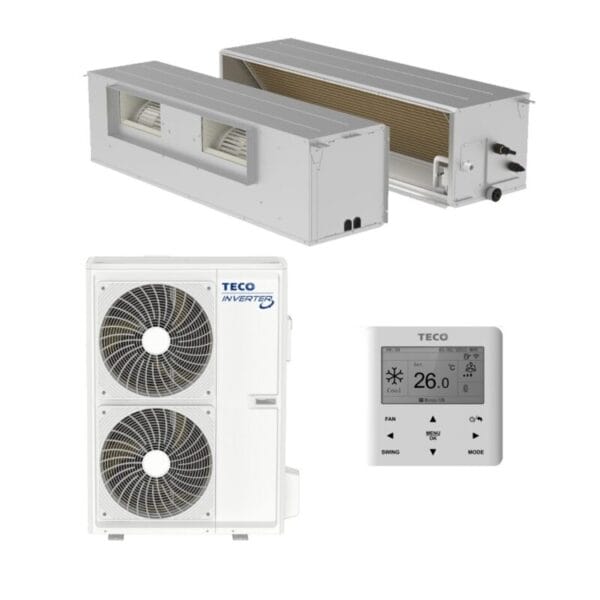

TECO TDS-TSO160HVSWDG 16.0kW High Static Splitable Ducted Air Conditioner System 1 Phase

SKU: TDS-TSO160HVSWDG - TDS160HVSWDG / TSO160HVWDG

TECO TDS-TSO160HVSWDG 16.0kW High Static Splitable Ducted Air Conditioner System 1 Phase
16.0kW Cooling | 18.0kW Heating
Indoor – TDS160HVSWDG | Outdoor – TSO160HVWDG
Standard Wired Controller Included

$5,495.00

Or own it from $211.35 weekly for 6 months*

Or pay in slices, no interest ever

Indoor Unit Type		Splitable Ducted
TECO Model		TDS-TSO160HVSWDG
Indoor Model		TDS160HVSWDG
Outdoor Model		TSO160HVWDG
Cooling Capacity	kW	16
Cooling Capacity Range	kW	4.80-18.00
Heating Capacity	kW	18
Heating Capacity Range	kW	5.40-20.00
AEER	—	3.3
ACOP	—	3.8
Cooling Star Rating (Hot/Avg/Cold)		3.5 / 3 / 3.5
Heating Star Rating (Hot/Avg/Cold)		3.5 / 2.5 / 2
Cooling Current Input Range	A	4.10-32.00
Heating Current Input Range	A	4.60-32.00
Standby power consumption	W	9.8
Indoor Air Flow Volume (P-Hi / H / M / L)	m3/h	3500/3100/2700/2300
External Static Pressure Range	Pa	0-200
Indoor Sound Pressure Level (H/M/L)		50 / 48 / 46
Outdoor Sound Pressure Level (H)		60
Rated Voltage	V	220-240
Phase		1
Compressor Type		Inverter Rotary
Indoor Fan Type		Centrifugal
Outdoor Fan Type		Axial-flow
Outdoor Fan Quantity		2
Fan Motor Drive Type		Direct
Cooling Operation Ambient Temperature Range		-15~52
Heating Operation Ambient Temperature Range		-15~24
Defrosting Method	—	Auto defrost
Isolation		I
Outdoor Moisture Protection	—	IPX4
Refrigerant		R32
Refrigerant Charge	kg	3.3
Not Additional Gas Connection Pipe Length	m	15
Connection Pipe Gas Additional Charge	g/m	35
Connection Liquid Pipe	mm	9.52mm / (3/8″)
Connection Gas Pipe	mm	15.88mm / (5/8″)
Connection Pipe Max. Height Distance	m	30
Connection Pipe Max. Length Distance	m	75
Indoor Dimension of Outline (W x D x H)	mm	1350 x 720 x 360
Indoor Net Weight (Net)	kg	60
Outdoor Dimension of Outline (W x D x H)	mm	900 x 340 x 1260
Outdoor Net Weight (Net)	kg	97

Advanced Black Fin Technology for HVAC Durability in Australia
Black Fin Corrosive Protection Technology represents the next step in HVAC durability, specifically designed to
withstand the harsh Australian environment. This innovative technology builds upon the success of the previous Blue
Fin products, offering an enhanced level of protection and performance.

Why Choose the TECO Ducted System?
Outstanding After-Sales Service
* Gain peace of mind knowing our dedicated support team is always ready to assist you, ensuring your system runs
smoothly long after installation.
Unmatched Warranty
* Rest easy with a robust 5-year Parts & Labour Warranty, demonstrating TECO commitment to superior quality and
long-term reliability.
Fast and Reliable Delivery
* Enjoy the convenience of having your TECO ducted system delivered swiftly, thanks to our well-stocked inventory
of High Static – Splitable Fan Decks (applicable models).
