Multi Indoor Unit – Ducted | DINSD701M | ||
Power Supply | V-Ph-Hz | 220~240 -1-50 | |
Cooling |
Rated Capacity | kW | 7.1 |
Rated Input Power | W | 120 | |
Rated Input Current | A | 1.5 | |
Heating |
Rated Capacity | kW | 7.3 |
Rated Input Power | W | 120 | |
Rated Input Current | A | 1.5 | |
Airflow (Hi / Med / Lo) | L/s | 361 / 333 / 250 | |
Maximum External Static Pressure (Hi) | Pa | 160 | |
Sound Pressure (Hi / Med / Lo) @1.4m | dB(A) | 43 / 40 / 38 | |
Dimensions |
Net (W x D x H) |
mm |
1100 x 774 x 249 |
Gross (W x D x H) | 1305 x 805 x 305 | ||
Net / Gross Weight | kg | 30 / 37 | |
Supply Air Duct Connection (W x H) |
mm |
926 x 175 | |
Return Air Duct Connection (W x H) | 1001 x 228 | ||
Refrigeration Pipe Size: Liquid / Gas | Φ9.52 + Φ15.9 | ||
Condensate Drain Pump Connection | OD Φ25 | ||
Controller | Type | Wired Controller – 12m Cable | |
Operating Range |
Cooling |
oC |
17 ~ 32 |
Heating | 0 ~ 30 |

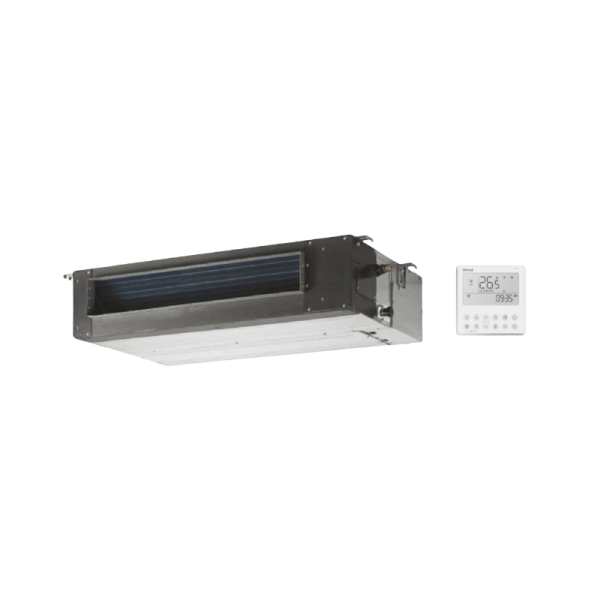

Rinnai DINSD701M 7.1kW Multi Head Ducted System Indoor Unit Only
Rinnai DINSD701M 7.1kW Multi Head Ducted System Indoor Unit Only
7.1 kW Cooling
7.3 kW Heating
Includes Wired Remote Control
To view the Brochure Click here
Description
7.1 kW Cooling
7.3 kW Heating
Includes Wired Remote Control
