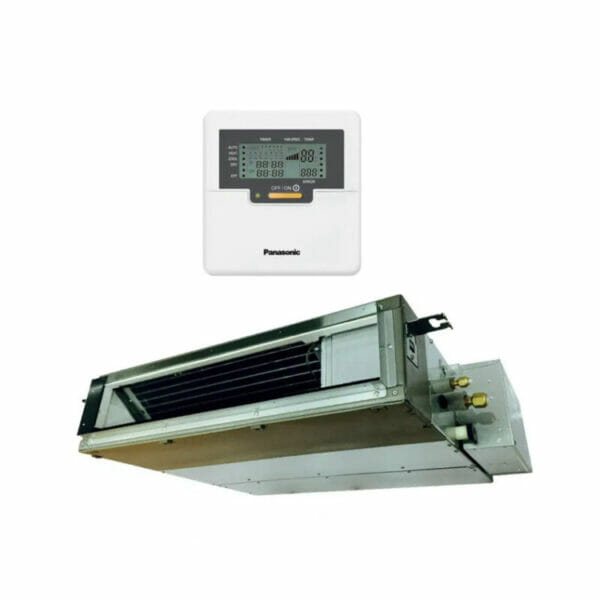

Panasonic CS-Z25UD3RAW 2.5kW Bulkhead Ultra Slim Ducted Multi Indoor Unit Only
Panasonic CS-Z25UD3RAW 2.5kW Bulkhead Ultra Slim Ducted Multi Indoor Unit Only
Includes wired controller | Built-in Drain Pump | 200 mm Height | Ultra Quiet Operation
5 Years Manufacturer’s warranty | Part of a Multi System – View Combination Matrix
| Specification | Unit | Details |
|---|---|---|
| Model | – | CS-Z25UD3RAW |
| Capacity | kW | 2.5 |
| Power Source | V/Ph/Hz | 240/1/50 |
| Noise in Cooling (H/L) | dB(A) | 35/29 |
| Noise in Heating (H/L) | dB(A) | 36/29 |
| Noise in Cooling (H) | dB | 51 |
| Noise in Heating (H) | dB | 52 |
| Airflow (Cooling/Heating) | L/s | 175/175 |
| Dimensions (H x W x D) | mm | 200 x 750 x 640 |
| Net Weight | kg | 19 |
| Refrigerant Pipe Size – Liquid Side | mm | ø 6.35 |
| Refrigerant Pipe Size – Gas Side | mm | ø 9.52 |
Perfectly suited to installations with narrow ceilings
R32 Inverter Ultra Slim Ducted have a slim design with a height of only 200 mm, meaning they can be installed in compact ceiling spaces. Their quiet operation makes them ideal for small hotels and condominiums.
Easily Installed in Limited Spaces
Enables Air Conditioning Without Disturbing Quiet Spaces
- Ultra-slim profile: 200 mm for all models
- DC fan motor greatly reduces power consumption
- Ideal for hotel applications with very narrow ceilings
- Easy maintenance and service by an external electrical box
- 49 Pa static pressure enables ductwork to be fitted
- Built-in drain pump
Description
2.5 kW Cooling
3.3 kW Heating
Built-in Drain Pump | 200 mm Height
