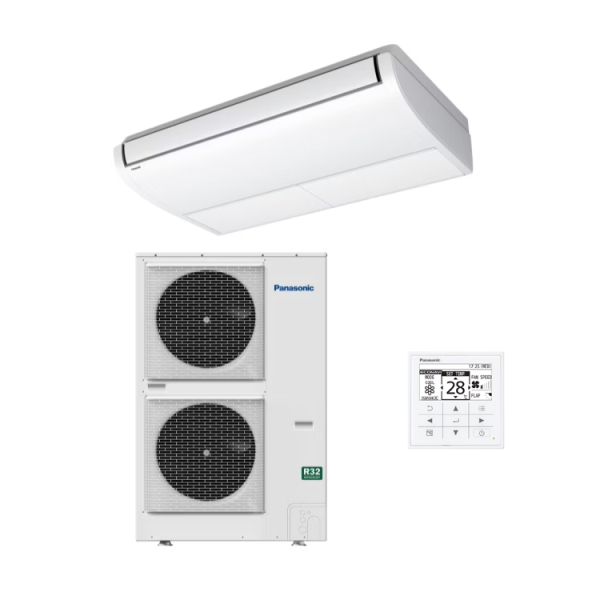

Panasonic 12.1kW S-1014PT3E / U-125PZH3R5 Under Ceiling System
Air Conditioning Free Pickup Locations
Panasonic 12.1kW S-1014PT3E / U-125PZH3R5 Under Ceiling System

Panasonic 12.5kW S-1014PT3E / U-125PZH3R5 Under Ceiling System Single Phase | Deluxe

SKU: S-1014PT3E / U-125PZH3R5 / CZ-RTC5B

Panasonic 12.1kW S-1014PT3E / U-125PZH3R5 Under Ceiling System Single Phase | Deluxe

CZ-RTC5B WIRED CONTROLLER INCLUDED


$6,799.00

Or own it from $261.50 weekly for 6 months* zip money
Or pay in slices, no interest ever
> > Compare
Capacity 12.1kW
Model Name Indoor Unit S-1014PT3E
Outdoor Unit U-125PZH3R8


Cooling capacity : Heating capacity

 kW 12.1 (3.2 – 14.0)

14.0 (3.2 – 16.0)
BTU/h 41,300 (10,900 – 47,800)

47,800 (10,900 – 54,600)
EER : COP                                                                                                   W/W 3.51 : 3.78
COP@H2 condition                                                                                                   W/W 2.52
Total power input                                        Cooling : Heating  kW 3.45 : 3.70




TCSPF : HSPF



Residential

 Hot Climate 5.42 : 5.37
Average Climate 4.85 : 4.44
Cold Climate 5.03 : 3.84


Commercial

 Hot Climate 6.07 : 5.50
Average Climate 6.41 : 4.97
Cold Climate 7.03 : 4.35
Indoor Unit
Power source Phase/Hz 1 Phase / 50Hz
V 230V | 240V
Dimension                      H x W x D            Indoor                                        mm 235 X 1,590 X 690
Net weight                                                   Indoor                                                                      kg 40
Air volume (H/M/L)                                    Cooling : Heating  L/s 567 / 467 / 400 : 567 / 467 / 400
Sound pressure level (H/M/L)                 Cooling : Heating  dB(A) 46 / 40 / 35 : 46 / 40 / 35
Sound power level (H/M/L)                      Cooling : Heating  dB 64 / 58 / 53 : 64 / 58 / 53
Number of fan speeds 5
Drain piping                                                                                                   mm VP-20
Outdoor Unit
Power source Phase/Hz 3 Phase / 50Hz
V 400V | 415V
Current (rated)                                            Cooling : Heating  A 5.40 : 5.85 | 5.20 : 5.65
Dimension                                                    H × W × D                                                                      mm 1,416 × 940 × 340
Net weight                                                                                                   kg 99
Air volume                                                    Cooling : Heating  L/s 2,087 : 1,870
Sound pressure level (Silent mode)  Cooling : Heating  dB(A) 53 (51) : 53 (51)
Sound power level (Silent mode)            Cooling : Heating  dB 69 (67) : 69 (67)
Piping connections                                      Liquid / Gas                                                                      mm Ø9.52 / Ø15.88
Pipe length range                                       min. – max.                                                                      m 5 – 85
Elevation difference (OU located lower, OU located higher) m 15, 30
Maximum chargeless length                                                                                                   m 30
Refrigerant at shipping / Additional gas amount                                                                                                   g R32 3,050 / 45 (g/m)
Operating range                                         Cooling : Heating  ˚C -15 to 48 : -20 to 24

View the brochure of Panasonic Under Ceiling Air Conditioner System | Deluxe Model

Description

12.5 kW Cooling
14.0 kW Heating

R32 – Deluxe | NanoeX
