Mitsubishi Heavy Industries FDU160KXE6F-W / FDCA155KXZES1-W 15.2kW KX 1:1 High Static Ducted Air Conditioner System 3 Phase
$5,880.00
- 15.2kW Cooling | 15.2kW Heating
- Mitsubishi Heavy Industries FDU160KXE6F-W / FDCA155KXZES1-W 15.2kW KX 1:1 High Static Ducted Air Conditioner System | 3 Phase

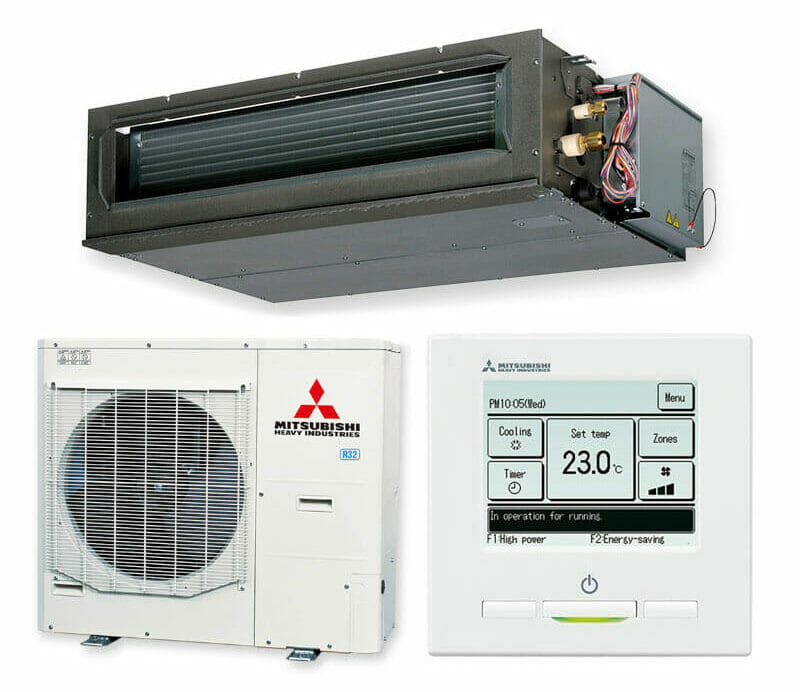

- Includes Indoor FDU160KXE6F-W | Outdoor FDCA155KXZES1-W
- Includes RC-EXZ3A Wired Backlit Controller | High Performance | Bluefin Coated | Reduced Operation Noise
- 5 Years Manufacturer’s Warranty | Max Pipe length: 50m
- Specification
- Features
- Brochure
- Description
- Faqs
- Additional information
- Reviews
| CAPACITY | 15.2KW | |||
| Indoor | FDU160KXE6F-W | |||
| Outdoor | FDCA155KXZES1-W | |||
| Power Source (Outdoor Unit) | 3 Phase 380-415V 50Hz | |||
|
*Operation Data
|
Nominal Capacity Range
|
Cooling T1 |
kW
|
15.2 |
| Heating H1 | 15.5 | |||
|
Power Consumption (Indoor Unit)
|
Cooling T1 | 0.43 | ||
| Heating H1 | 0.43 | |||
|
Power Consumption (Outdoor Unit)
|
Cooling T1 | 4.87 | ||
| Heating H1 | 4.06 | |||
|
Running Current (Indoor Unit)
|
Cooling T1 |
A
|
2.5 | |
| Heating H1 | 2.5 | |||
|
Running Current (Outdoor Unit)
|
Cooling T1 | 7.4 | ||
| Heating H1 | 6.2 | |||
| Inrush Current, Maximum Current | 5, 13.5 | |||
|
Sound Pressure Level (JS C9612)
|
Indoor |
dB(A)
|
P-Hi:45 Hi:38 Me:34 Lo:29 | |
| Outdoor | 54 | |||
|
External Dimensions (HXWXD)
|
Indoor |
mm
|
280×1368×740 | |
| Outdoor | 845x970x370 | |||
|
Net Weight
|
Indoor |
kg
|
54 | |
| Outdoor | 87 | |||
| Supply Air Connection |
mm
|
170 x 1200 | ||
| Return Air Connection | 235 x 1280 | |||
| External Static Pressure (Max) | Pa | 200 | ||
|
Airflow
|
Indoor (Cooling) |
l/s
|
P-Hi:800 Hi:583 Me:467 Lo:367
|
|
| Indoor (Heating) | ||||
|
Refrigerant (Type, Amount, Pre-charge Length)
|
Quantity | kg | (R32) 4.2 | |
| Pre Charged To Pipe Length | m | 30** | ||
|
Installation Data
|
Refrigerant Piping
|
Liquid Line |
mm
|
Ø9.52 |
| Gas Line | Ø15.88 | |||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) |
m
|
50 | ||
| Max vertical height diff. between O.U. and I.U. | 30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | |||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2 | |||
| Motion Sensor (Optional) | LB-KIT2 | |||
| Demand response (AS4755) | No | |||
|
Outdoor air temperature (upper, lower limits)
|
Cooling |
oC
|
-15 to 43 | |
| Heating | -20 to 20 | |||
The KX1:1 series of ducted air-conditioning systems are quiet yet powerful. Ranging from 9.0kW up to 28.0kW, the KX1:1 series of ducted systems incorporates a range of convenient features and functions including automatic mode, high power mode, silent mode and a range of timer and scheduling functions making them the perfect climate solution for any Australian home.
POWER: Single Phase & Three Phase | AVAILABLE IN: Reverse Cycle
CAPACITIES: 9.0kW | 11.2kW | 14.0kW | 15.2kW | 22.4kW | 28.0kW
Key features
- High performance
- Durable and robust design
- Bluefin coated components for increased weather protection
- Low profile indoor units
- Reduced operation noise
Description
15.2kW Cooling
15.2kW Heating
Bluefin Coated | Reduced Operation Noise
Q1: What are the main features of the Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase?
The Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase is designed for discreet, concealed installation while providing powerful and flexible air distribution. Its high static pressure capability supports longer duct runs and more complex ductwork layouts, making it suitable for larger residential and commercial spaces.
Q2: Is the Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase energy efficient?
Yes. The Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase uses inverter technology to adjust output according to the required cooling or heating load, helping maintain comfortable temperatures while supporting efficient energy use.
Q3: Is the Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase suitable for larger spaces?
Yes. The Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase is designed for applications that require higher static pressure and flexible ductwork. This makes it suitable for larger spaces and installations where longer or more complex duct runs are required.
Q4: Does the Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase provide both cooling and heating?
Yes. The Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase provides both cooling and heating, making it suitable for maintaining comfortable indoor temperatures throughout the year. Its concealed ducted design also helps maintain a clean and unobtrusive interior appearance.
Q5: Not sure what size air conditioner you need?
Use our free Air Conditioning Calculator & Size Guide as a starting point to estimate the right capacity for your room or home. Please note this calculator is a guide only — actual requirements may vary depending on your ceiling height, insulation, window size, orientation, and local climate conditions.
For a more accurate sizing recommendation tailored to your specific home or office, we recommend booking a quote with our team. Our air conditioning experts can assess your space and help you choose the right Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase with confidence, ensuring comfort, efficiency and value for money.
For more information about the Mitsubishi Heavy Industries KX 1:1 High Static Ducted Air Conditioner System | 3 Phase, and available models, click here.
Additional information
| Weight | 152 kg |
|---|
