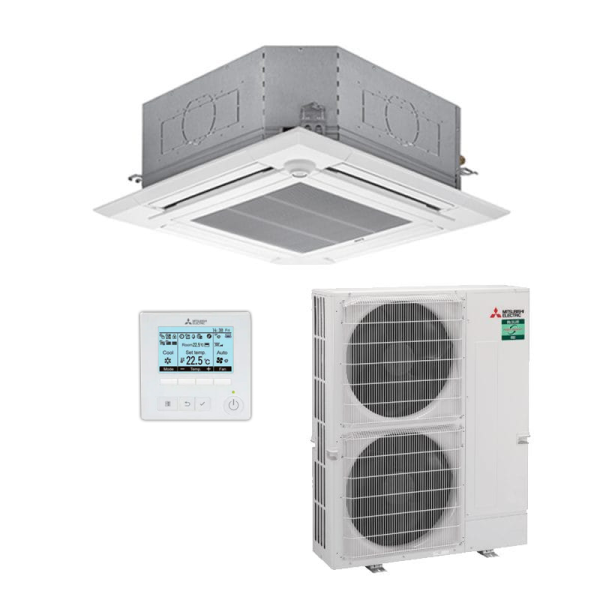

MITSUBISHI ELECTRIC PLA-M125EA-A.TH / PLP-6EALM / PUZ-ZM125YKA2-A.TH Three Phase Cassette System 12.5kW

SKU: PLA-M125EA-A.TH / PLP-6EALM / PUZ-ZM125YKA2-A.TH

MITSUBISHI ELECTRIC PLA-M125EA-A.TH / PLP-6EALM / PUZ-ZM125YKA-A.TH Three Phase Cassette System 12.5kW

PLA-M125EA-A.TH indoor

PLP-6EALM grille, wired control option

PUZ-ZM125YKA-A.TH R32 outdoor – Three Phase

(Wireless Controller Included)


Indoor Unit PLA-M125EA-A
Outdoor Unit PUZ-ZM125YKA-A
Power Supply V / ø / Hz 400 / 3 / 50
Cooling Capacity min – nominal – max kW 5.5 – 12.5 – 14.0
Total input kW 3.55
AEER/EER 3.37 / 3.52
Running current (Rated) A 5.9
Sound Pressure Level In (Lo – Mid – Hi) dB(A) 33 – 37 – 41 – 44
Out dB(A) 50
Air Volume (In) Lo – Mid – Hi L/s 350 – 417 – 467 – 517
Heating Capacity min – nominal – max kW 5.0 – 14.0 – 16.0
Input kW 3.58
ACOP/COP 3.75 / 3.91
Running current (Rated) 5.9
Sound Pressure Level In (Lo – Mid – Hi) 33 – 37 – 41 – 44
Out 52
Air Volume (In) Lo – Mid – Hi 350 – 417 – 467 – 517
Max. Running Current A 12.16
Indoor Unit Dimensions H x W x D mm 298 x 840 x 840
Weight kg 27
Outdoor Unit Dimensions H x W x D mm 1138 x 1050 x 330
Weight kg 114
Panel Dimensions H x W x D mm 40 x 950 x 950
Weight kg 5
Refrigerant Pipe size Liquid mm ø9.52
Gas mm ø15.88
Max. Piping Height m 30
Max. Piping Length m 75
Operating
Range
Cooling °C -5(15) – 52
Heating °C -20 – 21

Description

12.5 kW Cooling
14.0 kW Heating

R32 Power Inverter | Wireless Controller Included
