Mitsubishi Electric PEA-M180LAA.TH 18.0kW Ducted Air Conditioner System 3 Phase
18.0kW Cooling | 20.0kW Heating
Mitsubishi Electric PEAM180LAAYKIT Reverse Cycle Ducted Air Conditioner System
Includes

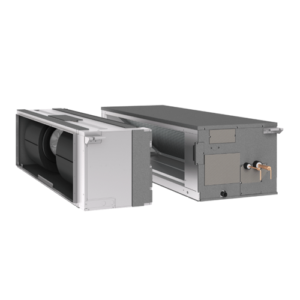

PEA-M180LAA.TH Indoor | PUZ-ZM180YKA-A.TH R32 Outdoor 3 Phase
PAR-41MAAM Backlit Controller
| Indoor unit | PEA-M180LAA.TH | ||
|---|---|---|---|
| Outdoor unit | PUZ-ZM180YKA-A.TH | ||
| Refrigerant | R32 | ||
| Cooling | Capacity (Min-Rated*1-Max) | kW | 4.9-18.0-20.0 |
| Air Volume (In) Lo-Mid-Mid2-Hi | L/S | 600-833-1017-1200 | |
| Total Input (Rated)*1 | kW | 5.92 | |
| Heating | Capacity (Min-Rated*1-Max) | kW | 5.4-20.0-22.4 |
| Air Volume (In) Lo-Mid-Mid2-Hi | L/S | 600-833-1017-1200 | |
| Total Input (Rated)*1 | kW | 5.10 | |
| Indoor unit | Dimensions (HxWxD) | mm | 470x1370x1120 |
| Weight | kg | 88 | |
| Outdoor unit | Dimensions (HxWxD) | mm | 1338×1050×330(+40) |
| Weight | kg | 116 | |
| System Name | PEAM180LAAYKIT | ||
*1 The rated capacity, total input power and running current are determined under conditions T1 (cooling) and H1 (heating) of AS/NZS 3823.1.2
Cooling: Indoor 27°CDB/19°CWB, Outdoor 35°CDB/24°CWB
Heating: Indoor 20°CDB/15°CWB, Outdoor 7°CDB/6°CWB
-
High external static pressure
External Static Pressure: 50/100/150 Pa
Flexible ducting design
With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.
Longer maximum piping length
Refrigerant can be piped up to 75 metres to the concealed ceiling unit, therefore creating a wide range of layout possibilities for unit installation.
Optional PAR-40MAA Wall mounted controller
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.
Optional zone controller
Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
Wi-Fi Control
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
R32 refrigerant
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
Click here to download the brochure of MITSUBISHI ELECTRIC PEAM180LAAYKIT 18.0kW Ducted Air Conditioner System 3 Phase
PEA-M-LAA Series
PEA-M180-250LAA
- Capacity Range: 18 kW – 24.5 kW
- High external static pressure up to 250 Pa
- New 24.5 kW model with smaller dimensions
- Flexibility in design
- Whole home heating and cooling
- 16 kW and 18 kW single-phase models available
Mitsubishi Electric introduces the NEW Mr Slim large capacity ducted units in R32 refrigerant. 18 kW indoor models can be connected to a single or three-phase Mr Slim outdoor unit, making the 18 kW model one of the largest ducted units available in the market with a single-phase power supply. The Mr Slim outdoor unit PUZ-ZM250YKA-A is now a side discharge model with twin fans, compared to the previous PUHZ-RP250YKM-A top discharge model. The new model is only 1,338 mm high and 139 kg, making it possible to install the outdoor unit in discrete locations and easier to transport to sites.
The new PEA-M-LAA Series is designed to suit Australian homes with guaranteed cooling performance at higher ambient temperatures and heating performances at low ambient conditions. It complements the aesthetically designed house with concealed installation, a wide range of capacities and airflows to best suit the comfort conditions.
Description
18.0 kW Cooling
20.0 kW Heating
Wired Control with Back Light | 3 Phase
7 Day Wired Controller (PAR-41MAAM)
A large easy to read display with backlit LCD. Features:
- Weekly timer – 8 patterns up to 7 days
- Auto-off timer
- Temperature range restriction – Limit minimum and maximum to prevent over heating/cooling
- Operation lock
- Multi Language (EN/FR/DE/ES/IT/PT/SV/RU)
Zone Controller
What is Zoning?
Zoning is the ability to turn off a section of your ducted air conditioning system when not in use.
The Mitsubishi Electric Zone Controller expands functionality, delivering conditioned air where you want it in the home/office. With the ability of creating up to 4 or 8 separate zones, why condition air in unoccupied areas?
