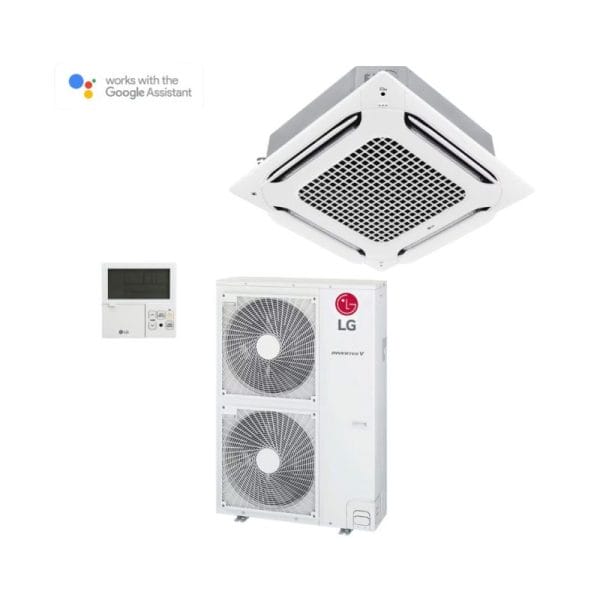

LG UTS125SET 12.3kW Ceiling Mounted Cassette Inverter Air Conditioner | Black Fin
$3,929.00
12.3 kW Cooling | 13.5kW Heating
- LG UTS125SET 12.3kW Ceiling Mounted Cassette Inverter Air Conditioner | R32
- Indoor UTN125MA | Outdoor UU125WR3 | System UTS125SET
- Wired controller PREMTB001 included | Fascia PT-AAGW0 Included
- Google Assistant Compatible with Wi-Fi (optional)
- 5 Years Manufacturer’s Warranty
- Specification
- Features
- Brochure
- Description
- Faqs
- Additional information
- Reviews
| Category | Indoor | UTN125MA | ||||||
| Outdoor | UU125WR3 | |||||||
| Combinational Specification | Unit | |||||||
| Cooling Capacity | Rated 2) | kW | 12.30 | |||||
| Min ~ Max | kW | 4.80~14.16 | ||||||
| Heating Capacity | Rated 2) | kW | 13.50 | |||||
| Min ~ Max | kW | 5.40~15.80 | ||||||
| AEER | 3.660 | |||||||
| ACOP | 3.791 | |||||||
| Rated Current | Cooling | A | 14.60 | |||||
| Heating | A | 15.00 | ||||||
| Max. Current (Full Load Amps) |
A | 28.0 | ||||||
| Air Flow Rate | Rated | L/s | 458 | |||||
| Air Flow Rate | Min ~ Max | L/s | 300 ~ 595 | |||||
| External Static Pressure |
Min ~ Max | Pa | ||||||
| Indoor | Net(W x H x D) | mm | 840 x 288 x 840 | |||||
| Net Weight | kg | 25.3 | ||||||
| Cooling ((SH)/H/M/L) |
dB(A) | – / 44.0 / 42.0 / 41.0 | ||||||
| Outdoor | Net(W x H x D) | mm | 950 x 1,380 x 330 | |||||
| Net Weight | kg | 89.0 | ||||||
| Cooling / Heating (@ 1.5m height) | dB(A) | 51.0 / 52.0 | ||||||
| Power Supply | Ø , Hz , V | 1 , 50 Hz, 220-240 V | ||||||
| Circuit Breaker | A | 40 | ||||||
| Compressor | Type | – | Inverter Scroll | |||||
| Motor Type | – | BLDC | ||||||
| Heat Exchanger | Fin Type | – | Wide Louver Plus | |||||
| Corrosion Protection (Coating) | – | Black 2 | ||||||
| Refrigerant | Type | – | R32 | |||||
| Pre-charge Length | m | 20 | ||||||
| Pipe size | Liquid | mm(inch) | Φ9.52 (3/8) | |||||
| Gas | mm(inch) | Φ15.88 (5/8) | ||||||
| Drain Pipe(Drain Pump) OD/ID |
mm(inch) | Ø 32(1-1/4) / 25(31/32) | ||||||
| Piping Length | IDU – ODU(Rated / Max / Min) |
m | 7.5 / 85 / 5.0 | |||||
| Maximum Height Difference |
IDU – ODU(Max) | m | 30 | |||||
| Supply Air Opening | H x W, Flange (Discharge) |
mm | 64.3 x 590 | |||||
| Return Air Opening | Oval (Suction) | mm | 563 x 563 | |||||
| Continuous Operation | Cooling | °C (DB) | -15 ~ 48 | |||||
| Heating | °C (WB) | -18 ~ 18 | ||||||
| Wi-Fi Compatible 4) | Optional | |||||||
4 Way Air Flow with New Dual Vane Design
New 4 Way dual vane design that promotes comfortable and convenient airflow
New Types of Wind Solutions
Indirect Wind
Direct Wind
6 Air Flow Modes
Power Mode – Fast and Quick
Up / Down Swing – Fresh and Natural
Smart Mode – Auto Vane Control
Indirect Wind – Indirect cooling & Heating
Direct Wind – Suitable for High Ceiling
Refresh Mode – Provide high concentration
Colour
Color enhancement allows cassette to blend in to most
interior ceiling spaces.
Wide Design
Bigger inlet and outlet make faster cooling / heating airflow
Full 3D Turbo Fan
3D Turbo fan decreases air resistance, to create powerful outlet flow
High Efficiency Heat Exchanger (HEX)
Highly integrated heat exchanger is applied to increase cooling and heating efficiency
Description
12.3kW Cooling
13.5kW Heating
Google Assistance Compatible with Wi-Fi
Q1: What are the main features of the LG Ceiling Mounted Cassette Inverter?
The LG Ceiling Mounted Cassette Inverter features four-way airflow, Dual Vane technology, multiple airflow modes, a wide design, a Full 3D Turbo Fan, and a high-efficiency heat exchanger for effective air distribution.
Q2: Is the LG Ceiling Mounted Cassette Inverter energy efficient?
Yes. The LG Ceiling Mounted Cassette Inverter uses inverter technology and a high-efficiency heat exchanger to support efficient heating and cooling performance.
Q3: Does the LG Ceiling Mounted Cassette Inverter offer advanced airflow control?
Yes. The LG Ceiling Mounted Cassette Inverter provides multiple airflow modes and four-way air distribution to help direct conditioned air throughout the room.
Q4: Is the LG Ceiling Mounted Cassette Inverter suitable for comfortable room cooling and heating?
Yes. The LG Ceiling Mounted Cassette Inverter provides flexible airflow control and wide air distribution, helping maintain comfortable temperatures across the room.
Q5: Not sure what size air conditioner you need?
Use our free Air Conditioning Calculator & Size Guide as a starting point to estimate the right capacity for your room or home. Please note this calculator is a guide only — actual requirements may vary depending on your ceiling height, insulation, window size, orientation, and local climate conditions.
For a more accurate sizing recommendation tailored to your specific home or office, we recommend booking a quote with our team. Our air conditioning experts will assess your space and help you choose the perfect LG Ceiling Mounted Cassette Inverter Air Conditioner | Black Fin unit with confidence — ensuring maximum comfort, efficiency, and value for money.
For more information about the LG Ceiling Mounted Cassette Inverter Air Conditioner | Black Fin, and available models, click here.
Additional information
| Weight | 124 kg |
|---|---|
| kW | 13 |
| Select State | NSW – ACT – QLD – VIC – Price Only, WA – NT – SA – TAS – Price Only |
