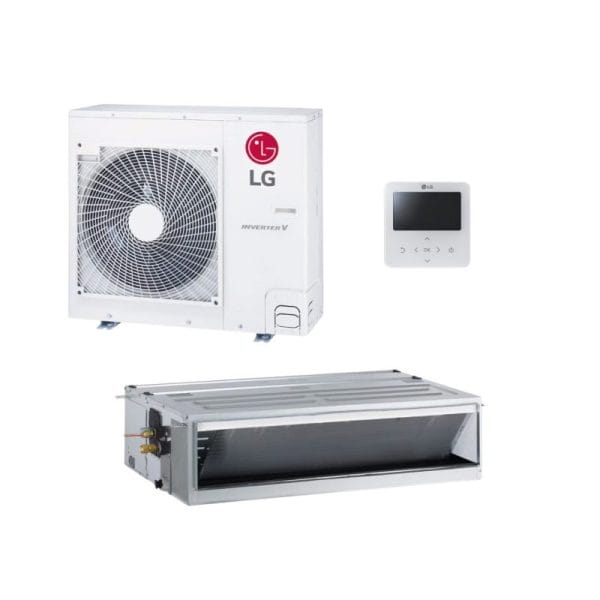

LG UMS85SET 8.0 kW Slim Ducted Mid Static Air Conditioner System

SKU: UMS85SET / UMN85M1 / UU85WR3 / PREMTB101

2.6 kW Cooling | 2.9 kW Heating
LG UMS85SET 8.0 kW Slim Ducted Mid Static Air Conditioner System
270mm Slim | Built in Drain Pump
Indoor: UMN85M1| Outdoor: UU85WR3 | System: UMS85SET
Wired Controller Included: PREMTB101

5 Years Manufacturer’s Warranty

Price range: $2,650.00 through $3,235.00

Select State

Clear

Insulated Copper Pair Coil

Quantity

Or own it from $101.92 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> LG Air Conditioning> LG Ducted Air Conditioner Systems> LG Slim Ducted> View All Ducted Systems

Indoor			UMN85M1
Outdoor			UU85WR3
Cooling Capacity	Rated 2)	kW	8
	Min ~ Max	kW	3.10 ~ 9.00
Heating Capacity	Rated 2)	kW	9
	Min ~ Max	kW	3.60 ~ 10.10
AEER			3.448
ACOP			3.383
Rated Current	Cooling	A	9.9
	Heating	A	11.7
Full Load Amps		A	17
Air Flow Rate	Rated	L/s	367
Air Flow Rate	Min ~ Max	L/s	240 ~ 477
External Static Pressure	Min ~ Max	Pa	25 ~ 147
Indoor	Net (W x H x D)	mm	900 x 270 x 700
	Net Weight	kg	25
	Cooling ((SH)/H/M/L)	dB(A)	– / 37.0 / 35.0 / 34.0
Outdoor	Net (W x H x D)	mm	950 x 834 x 330
	Net Weight	kg	59
	Cooling / Heating (@ 1.5 m height)	dB(A)	50.0 / 52.0

Power Supply		Ø, Hz, V	1, 50 Hz, 220-240 V
Compressor	Type	–	Twin Rotary
	Motor Type	–	BLDC
Heat Exchanger	Fin Type	–	Wide Louver Plus
	Corrosion Protection (Coating)	–	Black 2
Refrigerant	Type	–	R32
	Pre-charge Length	m	10
Pipe size	Liquid	mm(inch)	Ø9.52 (3/8)
	Gas	mm(inch)	Ø15.88 (5/8)
	Drain Pipe (Drain Pump) OD/ID	mm(inch)	Ø32 (1-1/4) / 26 (1-1/32)

Piping Length	IDU – ODU (Rated / Max / Min)	m	7.5 / 50 / 5.0
Maximum Height Difference	IDU – ODU (Max)	m	30
Supply Air Opening	H x W, Flange (Discharge)	mm	200 x 857
Return Air Opening	H x W, Flangeless	mm	231 x 849
Continuous Operation	Cooling	°C (DB)	-15 ~ 48
	Heating	°C (WB)	-18 ~ 18
Wi-Fi Compatible 4)			Optional
