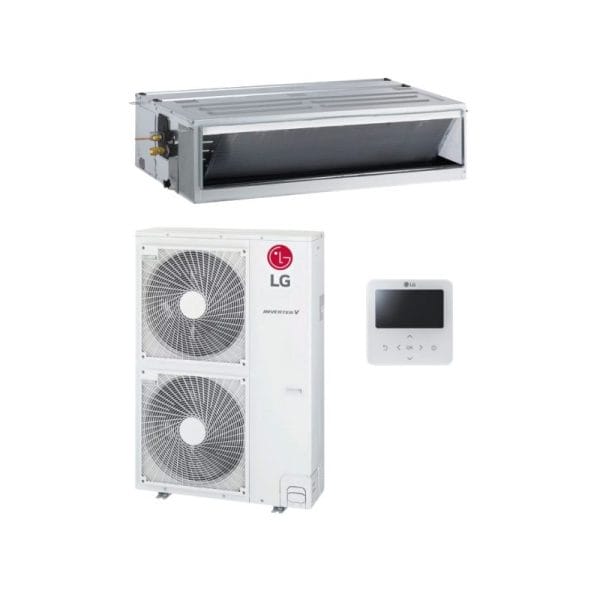

LG UMS140SET 13.8 kW Slim Ducted Mid Static Air Conditioner System

SKU: UMS140SET / UMN140M3 / UU140WR3 / PREMTB101

13.8 kW Cooling | 15.5kW Heating
LG UMS140SET 13.8 kW Slim Ducted Mid Static Air Conditioner System
270mm Slim | Built in Drain Pump
Indoor: UMN140M3 | Outdoor: UU140WR3 | System: UMS140SET
Wired Controller Included: PREMTB101

5 Years Manufacturer’s Warranty

Price range: $3,899.00 through $4,715.00

Select State

Clear

Insulated Copper Pair Coil

Quantity

Or own it from $149.96 weekly for 6 months*

Or pay in slices, no interest ever

9.5 x 15.88mm (3/8 x 5/8)> LG Air Conditioning> LG Ducted Air Conditioner Systems> LG Slim Ducted> View All Ducted Systems

Indoor			UMN140M3
Outdoor			UU140WR3
Cooling Capacity	Rated 2)	kW	13.8
	Min ~ Max	kW	5.40 ~ 15.68
Heating Capacity	Rated 2)	kW	15.5
	Min ~ Max	kW	6.20 ~ 17.52
AEER			3.209
ACOP			3.554
Rated Current	Cooling	A	19
	Heating	A	18.4
Full Load Amps		A	28
Air Flow Rate	Rated	L/s	667
Air Flow Rate	Min ~ Max	L/s	373 ~ 867
External Static Pressure	Min ~ Max	Pa	39 ~ 147
Indoor	Net (W x H x D)	mm	1,250 x 360 x 700
	Net Weight	kg	41
	Cooling ((SH)/H/M/L)	dB(A)	– / 39.0 / 38.0 / 36.0
Outdoor	Net (W x H x D)	mm	950 x 1,380 x 330
	Net Weight	kg	89
	Cooling / Heating (@ 1.5 m height)	dB(A)	52.0 / 53.0

Power Supply		Ø, Hz, V	1, 50 Hz, 220-240 V
Compressor	Type	–	Inverter Scroll
	Motor Type	–	BLDC
Heat Exchanger	Fin Type	–	Wide Louver Plus
	Corrosion Protection (Coating)	–	Black 2
Refrigerant	Type	–	R32
	Pre-charge Length	m	20
Pipe size	Liquid	mm(inch)	Ø9.52 (3/8)
	Gas	mm(inch)	Ø15.88 (5/8)
	Drain Pipe (Drain Pump) OD/ID	mm(inch)	Ø32 (1-1/4) / 26 (1-1/32)

Piping Length	IDU – ODU (Rated / Max / Min)	m	7.5 / 85.0 / 5.0
Maximum Height Difference	IDU – ODU (Max)	m	30
Supply Air Opening	H x W, Flange (Discharge)	mm	291 x 1,206
Return Air Opening	H x W, Flangeless	mm	320 x 1,205
Continuous Operation	Cooling	°C (DB)	-15 ~ 48
	Heating	°C (WB)	-18 ~ 18
Wi-Fi Compatible 4)			Optional
