Hitachi PPIM-6.0UFA1NQ 14.0kW airCore700 Mid Static Ducted System Air Conditioner
$4,395.00
14.0 kW Cooling | 16.0kW Heating | 1 Phase

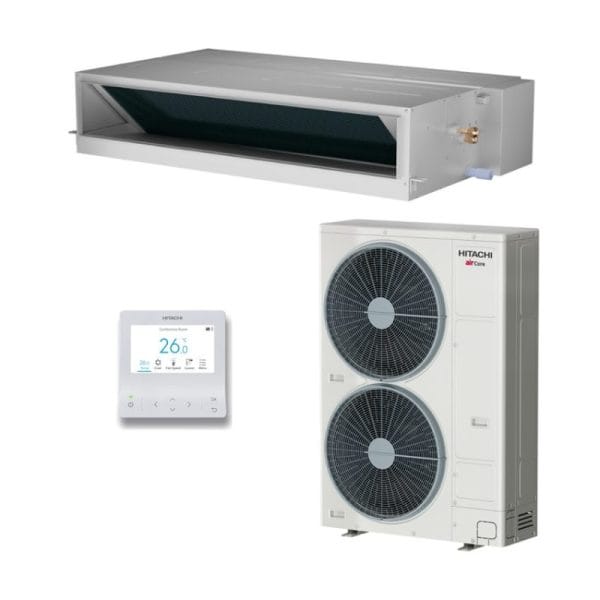

Hitachi PPIM-6.0UFA1NQ | PAS-6.0UFASNQ1 14.0kW airCore700 Mid Static Ducted System Air Conditioner

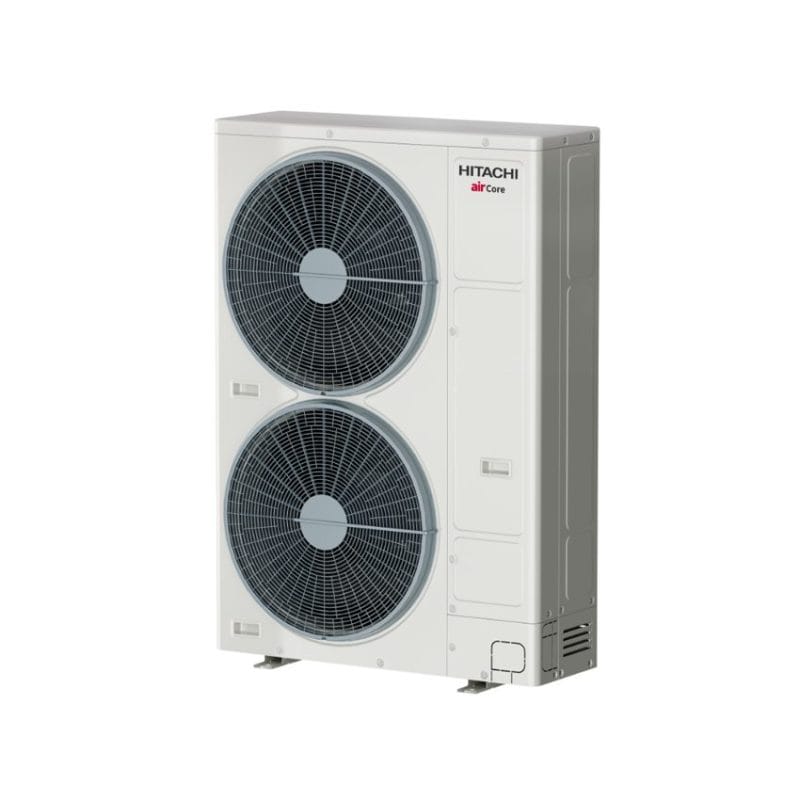

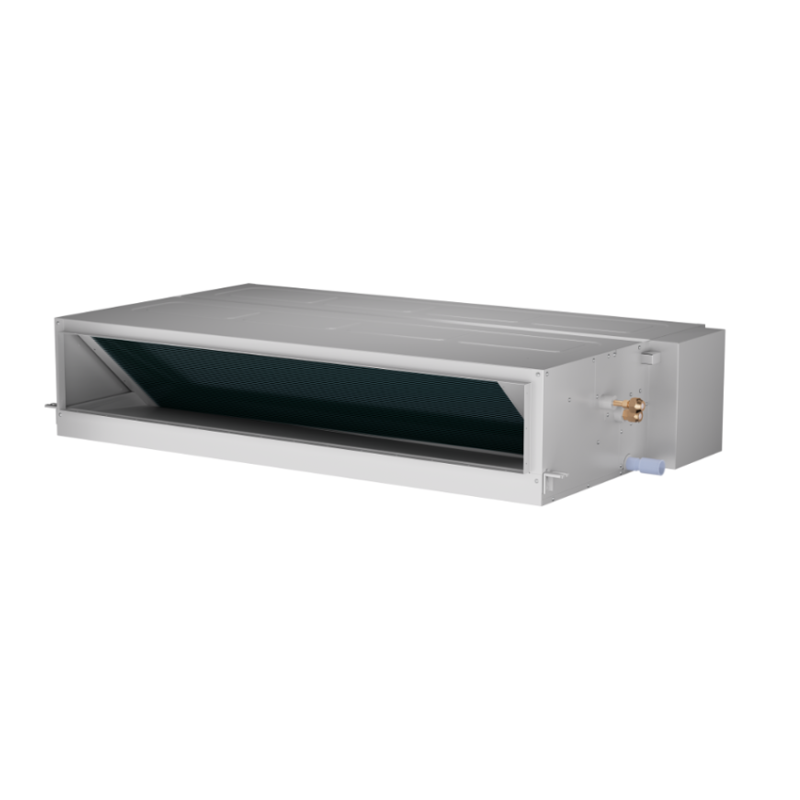

Indoor PPIM-6.0UFA1NQ Outdoor PAS-6.0UFASNQ1

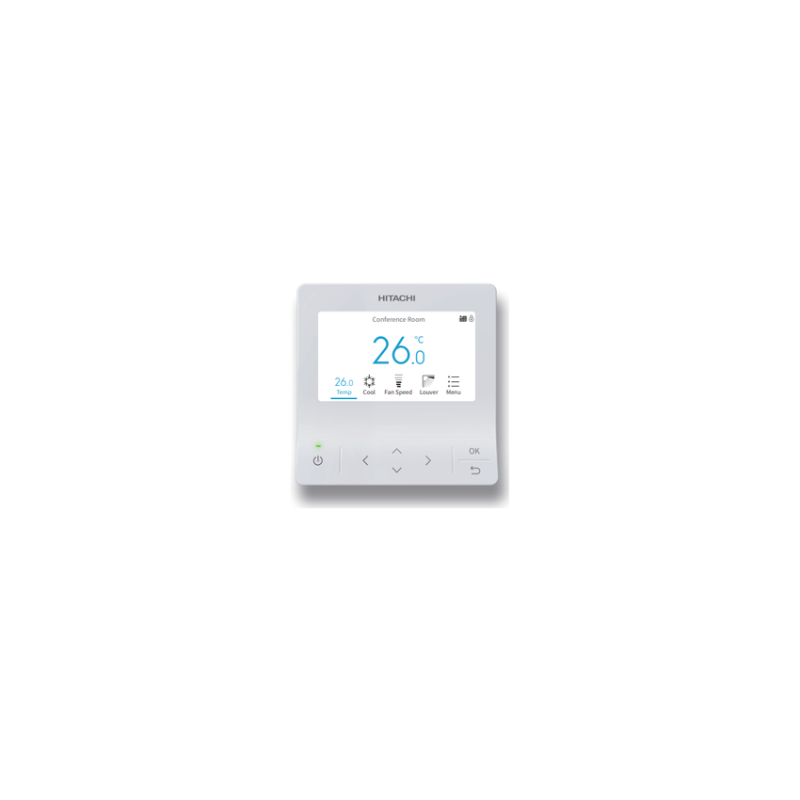

Wired Controller | Indoor Unit Frostwash | Backlit Coloured Controller | Night Quiet Operation | Power Saving Setting
6 Years Manufacturer’s Warranty
- Specification
- Features
- Brochure
- Description
- Faqs
- Additional information
- Reviews
| IDU | PPIM-6.0UFA1NQ | |
| ODU | PAS-6.0UFASNQ1 | |
| Power supply (Indoor) | V/Ph/Hz | 220-240~,50 |
| Power supply (Outdoor) | V/Ph/Hz | 220-240~,50 |
|
Cooling
|
Rated Capacity kW | 14 |
| Capacity Range[Min~Max] kW | 5.0~16.0 | |
|
Heating
|
Rated Capacity kW | 16 |
| Capacity Range[Min~Max] kW | 5.5~18.0 | |
| AEER | Cooling | 3.31 |
| ACOP | Heating | 3.66 |
|
TCSPF(Cooling) Residential
|
Hot | 4.75 |
| Average | 4.34 | |
| Cold | 4.51 | |
|
HSPF(Heating) Residential
|
Hot | 4.78 |
| Average | 4.13 | |
| Cold | 3.51 | |
|
Indoor Unit
|
External Static Pressure Range Pa | 60~215 |
| Air Flow Range L/s | 410~730 | |
| Sound Pressure Level [Hi2/Hi1/Hi/Med/Lo/SLo] dB[A | 45/44/40/38/35/32 | |
| Sound Power Level dB[A] | 56 | |
| Dimension [W×H×D] mm | 1400(+75)×300×800 | |
| Supply Air Spigot [W×H] mm | 1338×197 | |
| Return Air Spigot [W×H] mm | 1350×258 | |
| Net/Gross Weight kg | 48/56 | |
|
Outdoor Unit
|
Sound Pressure Level-Cooling dB[A] | 56 |
| Sound Pressure Level-Heating dB[A] | 57 | |
| Sound Pressure Level-Night dB[A | 54 | |
| Dimension [W×H×D] mm | 950×1380×320 | |
| Net/Gross Weight kg | 108.0/118.5 | |
|
Refrigerant type
|
Type | R32 |
| Charge kg | 3.4 | |
|
Refrigerant pipe
|
Liquid side/Gas side mm | Φ9.52/Φ15.88 |
| Max. pipe length m | 75 | |
| Max. Height difference m | 30 | |
| Add Refrigerant Amount g/m | 35 | |
| Chargeless m | 30 | |
|
Guaranteed Temperature Operation Range
|
Cooling °C (db) | -5~52 |
| Heating °C (wb) – | -15~15.5 |
airCore700 Light Commercial Inverter AC System (Single)
The airCore700 stands as Hitachi’s flagship light commercial split system range. It delivers outstanding cooling and heating performance, showcasing a wide capacity range and efficient operation in diverse ambient temperatures, while guaranteeing uncompromised comfort. Utilising R32 refrigerant, airCore700 units have a lower global warming potential compared to R410A refrigerant products.
Hitachi airCore 700 Ducted Air Conditioners – FrostWash™ Self-Cleaning Technology
The Hitachi airCore 700 ducted air conditioner range is designed for long-lasting performance and cleaner, healthier airflow. Every indoor ducted unit comes equipped with FrostWash™ self-cleaning technology, which freezes and removes dust and dirt from the heat exchanger before safely draining it away. This innovative feature maintains strong airflow, extends system life, and helps keep your home’s air fresher. FrostWash™ can be activated manually or set to operate automatically at scheduled intervals, providing peace of mind and minimal maintenance for your ducted system.
Energy-Efficient Climate Control with Smart Features
Engineered for the Australian climate, the airCore 700 ducted system uses advanced R32 DC inverter compressors with exclusive Hitachi multi-pulse control to deliver energy-efficient comfort in every season. With an improved heat exchanger fin design and optimised refrigerant path, this system reduces startup times, enhances performance in low ambient conditions, and ensures precise temperature control. The built-in power consumption display allows you to track energy use in daily, weekly, or yearly formats, while the 7-day operation schedule lets you program up to five settings per day for ultimate convenience. Quiet, efficient, and reliable, the Hitachi airCore 700 is the smart choice for homeowners seeking premium ducted air conditioning solutions.
Description
14.0 kW Cooling
16.0 kW Heating
Night Quiet Operation | Power Saving Setting
Q1: What are the main features of the Hitachi airCore700 Mid Static Ducted System Air Conditioner?
The Hitachi airCore700 Mid Static Ducted System Air Conditioner features FrostWash™ self-cleaning technology, R32 refrigerant, a wired controller, backlit coloured controller, night quiet operation and power-saving settings.
Q2: Is the Hitachi airCore700 Mid Static Ducted System Air Conditioner energy efficient?
Yes. The Hitachi airCore700 Mid Static Ducted System Air Conditioner uses R32 DC inverter technology and Hitachi multi-pulse control to provide efficient heating and cooling across a range of operating conditions.
Q3: Does the Hitachi airCore700 Mid Static Ducted System Air Conditioner have smart control features?
The Hitachi airCore700 Mid Static Ducted System Air Conditioner provides convenient control features including a 7-day operation schedule, power consumption display and programmable settings through its wired controller.
Q4: Does the Hitachi airCore700 Mid Static Ducted System Air Conditioner provide quiet and comfortable operation?
Yes. The Hitachi airCore700 Mid Static Ducted System Air Conditioner includes Night Quiet Operation and FrostWash™ technology, helping provide comfortable indoor conditions while supporting cleaner airflow and discreet ducted installation.
Q5: Not sure what size air conditioner you need?
Use our free Air Conditioning Calculator & Size Guide as a starting point to estimate the right capacity for your room or home. Please note this calculator is a guide only — actual requirements may vary depending on your ceiling height, insulation, window size, orientation, and local climate conditions.
https://www.airconditioning-online.com.au/split-ducted-air-conditioning-system-sizing-calculator/
For a more accurate sizing recommendation tailored to your specific home or office, we recommend booking a quote with our team. Our air conditioning experts will assess your space and help you choose the perfect Hitachi airCore700 Mid Static Ducted System Air Conditioner unit with confidence — ensuring maximum comfort, efficiency, and value for money.
For more information about the Hitachi airCore700 Mid Static Ducted System Air Conditioner Series, and available models, click here.
Additional information
| Weight | 175 kg |
|---|---|
| kW | 5.0 |
