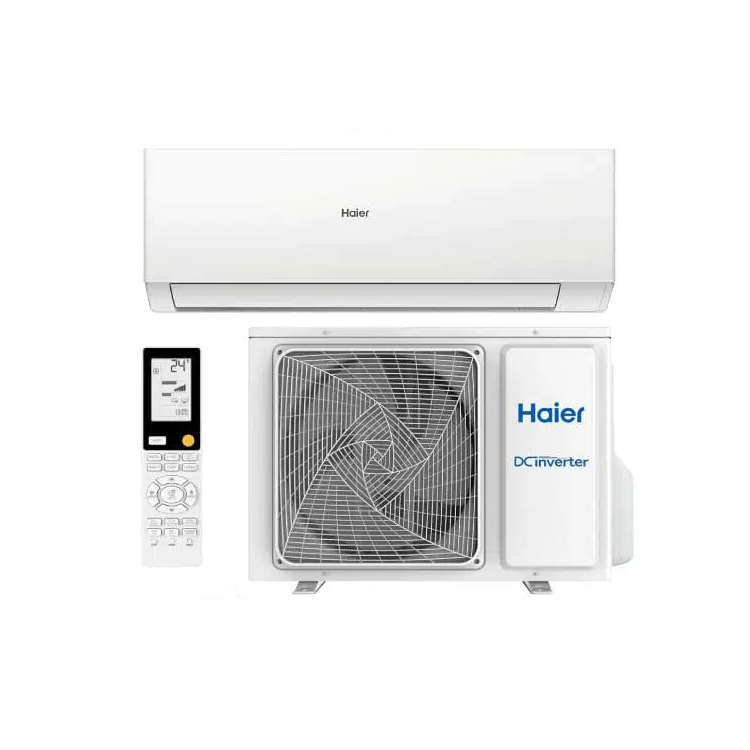

Haier Quartz AS50QDEHRA-SET 5kW Reverse Cycle Split System Air Conditioner

SKU: AS50QDEHRA-SET (AS50QDEHRA / 1U50WAEFRA)

5.0 kW Cooling
6.0 kW Heating

Haier Quartz AS50QDEHRA-SET 5kW Reverse Cycle Split System Air Conditioner with a premium, sleek design, this smart air conditioner delivers effective heating and cooling with anti-viral, anti-bacterial UV Protect.

  • UV Protect in Health mode helps to kills airborne pathogens, with anti-bacterial and anti-viral rates above 91%*
  • Self-cleaning function for continual fresh, clean air
  • Wi-Fi enabled for use with the SmartHQ™ app and smart home voice control
  • With Coanda Plus technology for far-reaching, even airflow around the room


$1,540.00

> > > Compare

Capacity

Cooling capacity (kW) 5kW
Heating capacity (kW) 6kW

Consumption

COP 4.05 / 4.02
EER 4.03 / 4.00
HSPF-RES (Hot/Average/Cold) 5.067 / 4.302 / 3.670
Star-Cool (Hot/Average/Cold) 6.0 / 5.0 / 5.5
Star-Heat (Hot/Average/Cold) 3.5 / 2.5 / 2.0
TCSPF-RES (Hot/Average/Cold) 7.934 / 6.834 / 7.373

Features

Blue fin coils
Built-in Wi-Fi smart control
Compressor type Rotary
Concealed LED display
DRED (Demand Response) ready
Google Home
Infrared remote control
Refrigerant factory charge 1.02kg
Standard controller YR-HJ

Installation

Indoor unit model AS50QDEHRA
Indoor unit weight 11.6kg
Liquid line 6.35mm
Maximum pipe run 25m
Outdoor unit model 1U50WAEFRA
Outdoor unit weight 43.2kg
Suction line 12.7mm

Performance

Airflow 265L/S
DC inverter
R32 Refrigerant
Sound power SWL (outdoor) 66dBA
Sound pressure SPL (indoor) 47 / 43 / 37 / 33dBA
Sound pressure SPL (outdoor) 53dBA
Working temperature cooling -10℃ ~ 46℃
Working temperature heating -15℃ ~ 24℃

Power requirements

Supply frequency 50Hz
Supply voltage 220-240V

Product dimensions

Indoor unit depth 220mm
Indoor unit height 320mm
Indoor unit width 970mm
Outdoor unit depth 340mm
Outdoor unit height 705mm
Outdoor unit width 890mm

Warranty

Parts and labour 5 years

UV Protect sterilisation

UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne Staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness under specific test conditions.*

Self-cleaning technology

Your Quartz air conditioner will continue working efficiently to produce clean air, with a Self-clean function that flushes away dirt from the evaporator and reduces the growth of mould and bacteria. This process also cleans the outdoor unit, helping to clear salt and debris that can lead to corrosion.

Smart control

Use the SmartHQ™ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi enabled Quartz with Google Home or Amazon Alexa voice control.

Coanda Plus airflow

Engineered to send airflow further, an aerodynamic louvre design helps to circulate air evenly throughout your room for total comfort.

Easy installation and maintenance

Designed to help your installer get the job done fast, Quartz air conditioners come with simple positioning specifications. The control board and motor are also easily accessible for maintenance.

Sleep mode

Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night for maximum comfort.

Turbo mode

With the Turbo function, the motor and fan work at a higher frequency so you can enjoy a cool or warm room within a much shorter time.

Click here to download the brochure of Haier Quartz AS50QDEHRA-SET 5kW Reverse Cycle Split System Air Conditioner

Description

5.0 kW Cooling
6.0 kW Heating

Built-in Wi-Fi | Free Delivery to Business Address* Only
