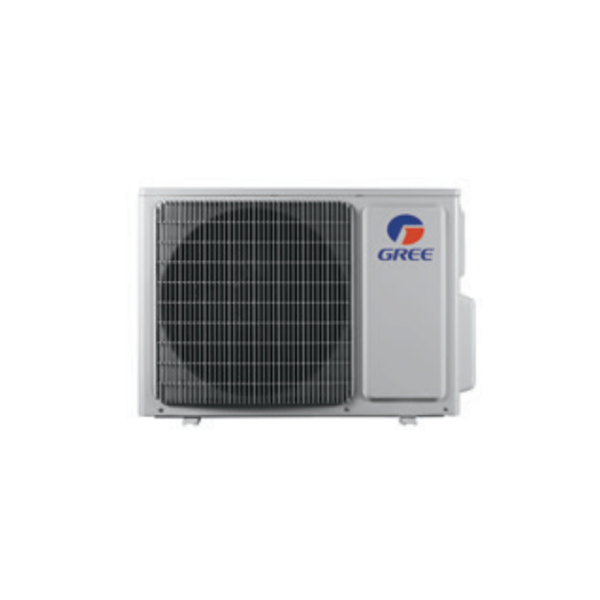

Model | Unit | GWHD(18)NK6KO | ||
Power Supply | Phase/Voltage/Frequency | Ph/V/Hz | 1/220-240/50 | |
Power Supply Mode | – | Outdoor | ||
Capacity |
Cooling | kW | 5.00 (2.05-6.20) | |
Heating | kW | 5.60 (2.50-6.65) | ||
Power input |
Cooling | kW | 1.55 (0.68-2.70) | |
Heating | kW | 1.55 (0.68-2.70) | ||
Current | Cooling/Heating | A | 6.96/6.88 | |
EER/COP | W/W | 3.23/3.61 | ||
Maximum Indoor unit connection quantity | set | 2 | ||
Sound pressure level | dB(A) | 56 | ||
Compressor type | – | Inverter Rotary | ||
Fuse current | A | 25 | ||
Circuit breaker current | A | 20 | ||
Dimension (WxDxH) | Outline | mm | 955x396x700 | |
Package | mm | 1029x458x750 | ||
Net weight/Gross weight | kg | 50/55 | ||
Refrigerant charge volume | kg | 1.60 | ||
Outdoor unit operation range |
Cooling | °C | -5–48 | |
Heating | °C | -15–24 | ||
Connection pipe |
Precharged length | m | 10 | |
Outer diameter liquid pipe | mm | φ6.35×2 | ||
Outer diameter gas pipe | mm | φ9.52×2 | ||
Max allowable length | m | 20 | ||
Max outdoor to single indoor length | m | 10 | ||
Max height distance (ind to ind) | m | 5 | ||
Max height distance (out to ind) | m | 5 |
Six Year Warranty
With an industry leading “Six Year, Parts and Labour Warranty”. And there are no strings attached, if your installer is industry qualified that’s ok by Gree.
