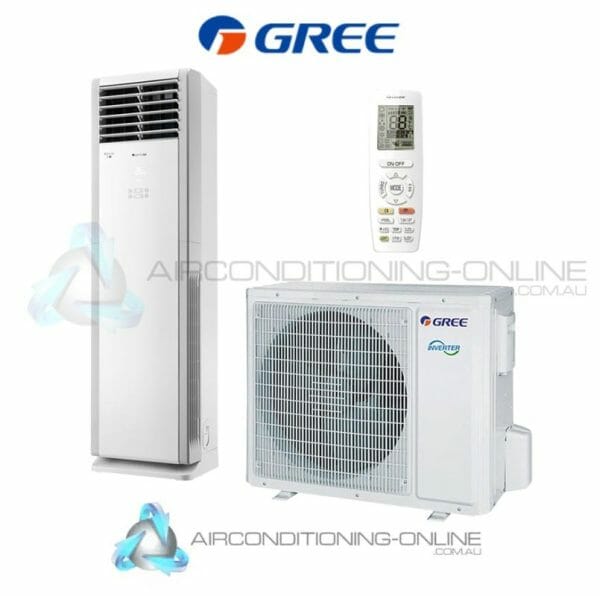

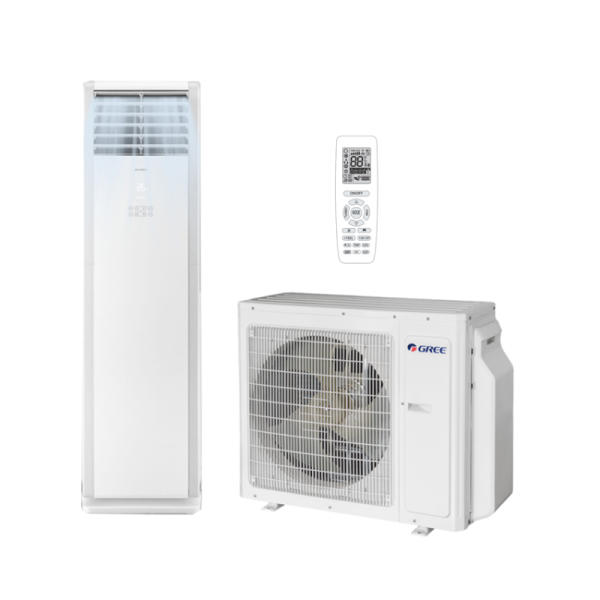

Gree GVH32ALXH-K6DNC7A/I 9.4kW Floor Standing T-Fresh Reverse Cycle System
9.4 kW Cooling
10.3 kW Heating
Gree GVH32ALXH-K6DNC7A/I 9.4kW Floor Standing T-Fresh Reverse Cycle System
Model No: GVH32ALXH-K6DNC7A/I
Product Code: CH156N05700

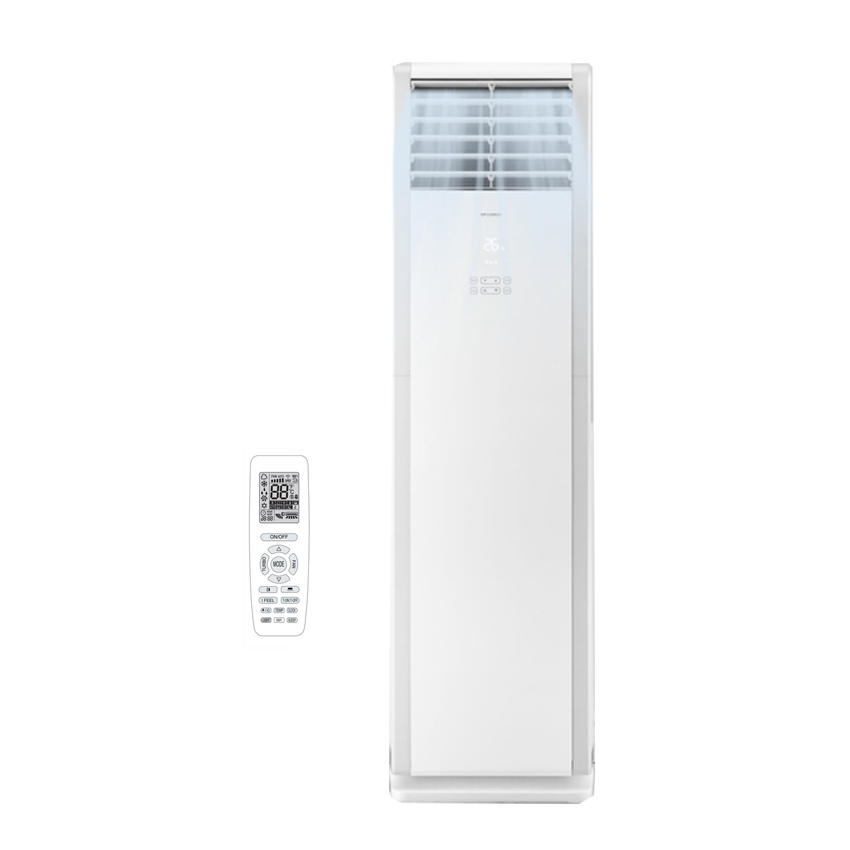

Indoor Unit: GVH32ALXH-K6DNC7A/I

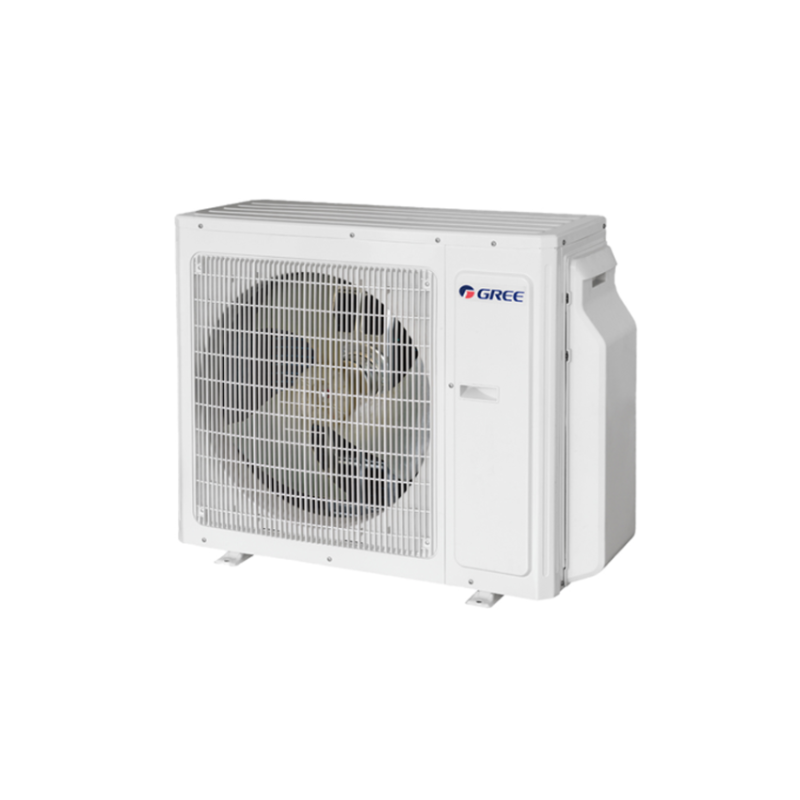

Outdoor Unit: GWH32QFXH-K6DNB2A/0
| Parameter | Unit | Value | |
| Model | — | GVH32ALXH-K6DNC7A/I | |
| Product Code | — | CH156N05700 | |
| Power Supply | Rated Voltage | V～ | 220-240 |
| Rated Frequency | Hz | 50 | |
| Phases | — | 1 | |
| Power Supply Mode | — | Outdoor | |
| Cross-sectional Area of Power Cable Conductor | mm2 | 2.5 | |
| Recommended Power Cable(Core) | N | 3 | |
| Min/Max. Voltage | V | 198/264 | |
| Cooling Capacity | W | 9400 (2100-12800) | |
| Heating Capacity | W | 10300(2350-11350) | |
| Cooling Power Input | W | 2474 | |
| Min. Cooling Power Input | W | 675 | |
| Max. Cooling Power Input | W | 4200 | |
| Heating Power Input | W | 3029 | |
| Min. Heating Power Input | W | 630 | |
| Max. Heating Power Input | W | 4100 | |
| Cooling Current | A | 11.5 | |
| Heating Current | A | 13.5 | |
| Rated Input | W | 4200 | |
| Rated Current | A | 18 | |
| Rated Heating Current | A | 17 | |
| Starting Current | A | 5 | |
| EER | W/W | 3.8 | |
| COP | W/W | 3.40 | |
| AEER | 3.731 | ||
| ACOP | 3.731 | ||
| Air Flow Volume | L/s | 361/402/444/514 | |
| Dehumidifying Volume | L/h | 5.00 | |
| Application Area | m2 | 55-85 | |
| Indoor Unit | Indoor Unit Model | — | GVH32ALXH-K6DNC7A/I |
| Fan Type | — | Centrifugal | |
| Evaporator Form | — | Aluminum Fin-copper Tube | |
| Fuse Current | A | 5 | |
| Set Temperature Range | ℃ | 16～30 | |
| Sound Pressure Level | dB (A) | 52/50/48/47 | |
| Sound Power Level | dB (A) | 64/62/60/59 | |
| Dimension (W×H×D) | mm | 587×1882×394 | |
| Dimension of Package(L×W×H) | mm | 2153×738×545 | |
| Net Weight | kg | 57.0 | |
| Gross Weight | kg | 79.5 | |
| Outdoor Unit | Outdoor Unit Model | — | GWH32QFXH-K6DNB2A/O |
| Compressor Trademark | GREE | ||
| Compressor Manufacturer | — | Lamda | |
| Compressor Type | — | Rotary | |
| Fan Type | — | Axial-flow | |
| Outdoor Unit Air Flow Volume | L/s | 1250 | |
| Condenser Form | — | Aluminum Fin-copper Tube | |
| Permissible Excessive Operating Pressure for the Discharge Side | MPa | 4.3 | |
| Permissible Excessive Operating Pressure for the Suction Side | MPa | 2.5 | |
| Maximum Allowable Pressure | MPa | 4.3 | |
| Cooling Operation Ambient Temperature Range | ℃ | -10～50 | |
| Heating Operation Ambient Temperature Range | ℃ | -15~24 | |
| Moisture Protection | — | IPX4 | |
| Sound Pressure Level | dB (A) | 62/ / | |
| Sound Power Level | dB (A) | 71/ / | |
| Dimension (W×H×D) | mm | 1000×746×427 | |
| Dimension of Package(L×W×H) | mm | 1080×483×810 | |
| Net Weight | kg | 59.5 | |
| Gross Weight | kg | 64.5 | |
| Refrigerant | — | R32 | |
| Refrigerant Charge | kg | 1.9 | |
| Connection Pipe | Length | m | 5 |
| Gas Additional Charge | g/m | 40 | |
| Outer Diameter of Liquid Pipe(GREE Allocation)(Metric) | mm | φ6 | |
| Outer Diameter of Gas Pipe(GREE Allocation)(Metric) | mm | φ16 | |
| Max Distance Height | m | 10 | |
| Max Distance Length | m | 25 | |
| Loading Quantity | Loading Quantity ( 20’ Container ) |
unit | 20 |
| Loading Quantity ( 40’ Container ) |
unit | 42 | |
| Loading Quantity ( 40’ High Cube Container ) |
unit | 48 | |
Key Features:
- Dehumidifying
- Normal sleep mode
- Timer
- Auto Swing
- Eco Mode
- Power-off Memory
- Intelligent Defrosting
- Self-Diagnosis
- Turbo Button
- Soft Start
- Low-Voltage Startup
- Closed Louver Design
- Intelligent Preheating
- Dry Anti-Mildew technology
- LED Display
- Lock
- Wifi Control
- Nano-cataylistic Air Filter (Optional)
Fully-closed air outlet
The air outlet can be completely closed to avoid dust from entering, safeguarding the health of your family.
Side filter design
The filter can be drawn from one side. It is easy to detach and clean. Enjoy easy cleaning.
Easy maintenance
The front panel structure of the inverter type floor-standing air-conditioner Gree Floor Standing T-Fresh and the special design allowing lateral dismounting of air filters, make cleaning very easy and convenient.
Powerful and elegant
The series of inverter type floor-standing air-conditioners Gree provides the option to set the blowing of outlet air in both vertical and horizontal direction. In combination with the strong air stream, it provides air conditioning throughout the room.
Intuitive interface
Inverter type floor-standing air-conditioners Gree have sensor interface on the indoor unit. This allows you, without the need of remote control, to set some basic commands, such as turning on/off, temperature control while the air-conditioner is in operation, operating mode and selecting the outlet and intensity of air current.
Heavy duty
Heavy duty design, the inverter type floor-standing air-conditioner Gree Floor Standing T-Fresh will satisfy the needs for cooling and heating in every room. This is due to the use of highly efficient compressors operating a refrigerating system of great capacity.
Gree Floor Standing T-Fresh offers you A+ energy efficiency in cooling and A in heating. It guarantees a high power and reliable air conditioning for big premises (up to 80 sq.m.) such as restaurants, shops and offices.
Description
9.4 kW Cooling
10.3 kW Heating
New Series | Powerful & Elegant | Heavy Duty
NEW PRODUCT RELEASE
