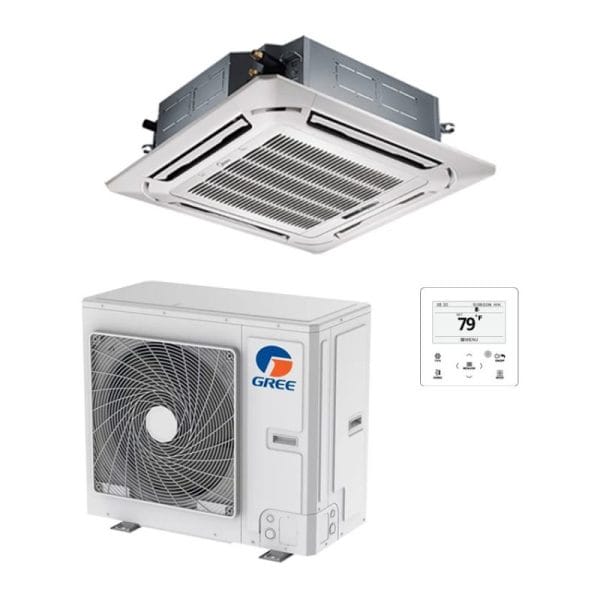

Type | Cassette | ||

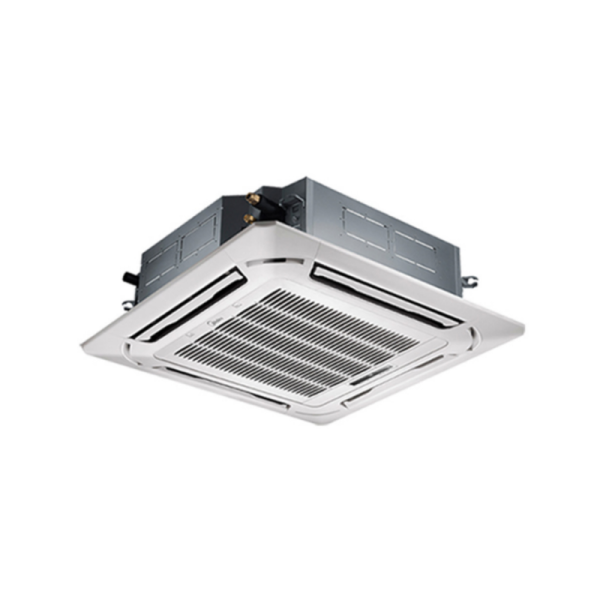

Model | Indoor | GUD50T1/C-S | |

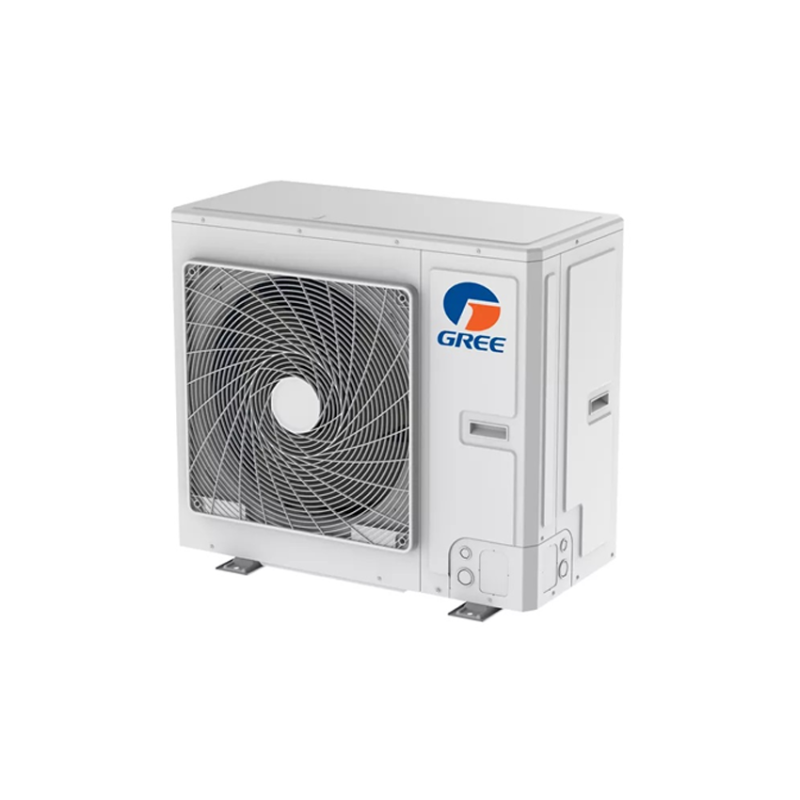

Outdoor | GUD50W1/NhC-S | ||
Panel | TF06 or TF04A | ||
Capacity | Cooling | kW | 5.30 |
Heating | kW | 5.80 | |
Range | Cooling | kW | 2.40~6.00 |
Heating | kW | 2.20~7.00 | |
Power input | Cooling | kW | 1.25 |
Heating | kW | 1.25 | |
AEER / ACOP | W/W | 4.24/4.64 | |
SEER Label Stars | Hot/Ave/Cold | Cool Heat | 4.0 / 3.5 / 2.5 4.0 / 3.5 / 2.5 |
Operation temp | Cooling | °C | –15 ~ 52 |
Heating | °C | –15 ~ 24 | |

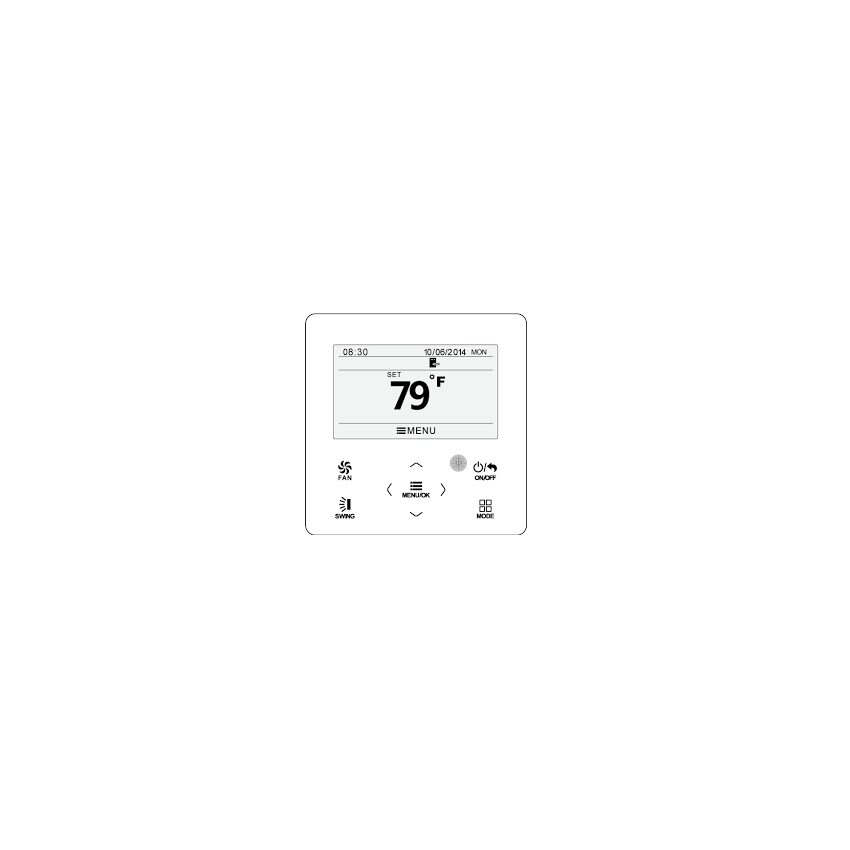

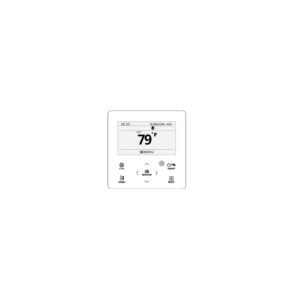

System Operation Control | – | wired controller | |
Air Flow Volume(rated EXP) | l/s | 361 | |
Sound Pressure Level (L/M/H/SH) | dB (A) | 35 / 37 / 43 / 45 | |
Sound Pressure Level Outdoor | dB (A) | 57 | |
Sound Power Level Outdoor | dB(A) | 62 | |
Electrical | |||
Power Supply | V-Hz-Ph | 220-240-50 / 60-1 | |
Recommended Circuit Breaker | A | 16 | |
Input Current | Cooling | A | 5.7 |
Heating | A | 5.7 | |
Dimensions and Weights | |||
Indoor Dimensions (W×D×H) | mm | 840×840×200 | |
Outdoor Dimensions (W×D×H) | mm | 889x340x660 | |
Panel Dimensions (WxDxH) | mm | 950x950x52 | |
Indoor Net Weight | kg | 21 | |
Outdoor Net Weight | kg | 42 | |
Panel Net Weight | kg | 6 | |
Drain Connection | mm | Pump Φ 25mm x 1.5mm | |
Condensate Pump Lift & Head | mm | 1000 | |
Installation | |||
Connection Type | – | Flare | |
Outer Diameter | Liquid Pipe | mm (in) | 9.52 ( 3 / 8″) |
Gas Pipe | mm (in) | 15.88 (5 / 8″) | |
Max Pipe Distance | Height | m | 20* |
Max Pipe Distance | Length | m | 30 |
Refrigerant R32 | Charge | kg | 1.4 |
Pre-charged | m | 15 | |
Additional gas charge | g/m | 16 | |
Power Supply | Outdoor Unit | mm² | 3 x 2.5mm² |
Power Interconnection | mm² | 3 x 1.0mm² | |
Communication wiring | mm² | 2 x 0.75mm² (Screened) | |
Wall Controller wiring | mm² | 2 x 0.75mm² (Screened) |
