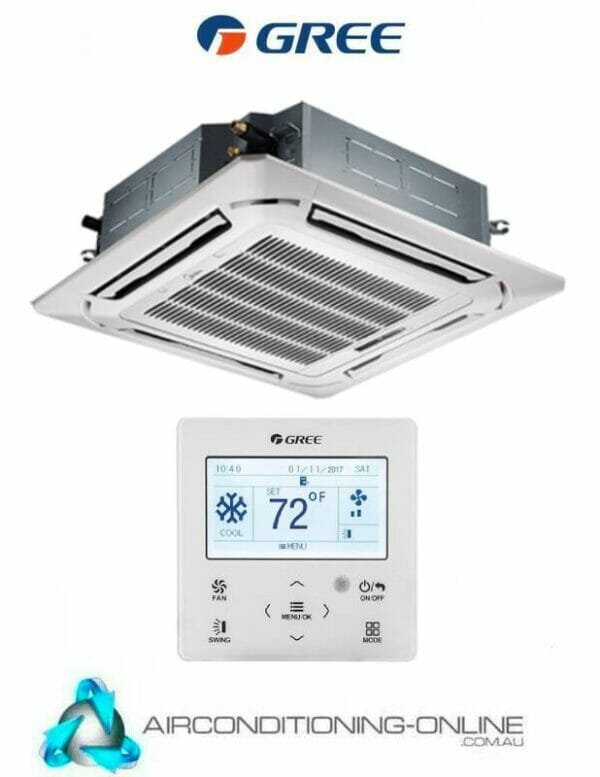

Model | Indoor | GUD71T/B-S | |
Outdoor | GUD71W/Nh B-S | ||
Panel | TF06 | ||
Capacity | Cooling | kW | 7.10 |
Heating | kW | 8.00 | |
Range | Cooling | kW | 2.4~8.0 |
Heating | kW | 2.2~9.0 | |
Power input | Cooling | kW | 2.05 |
Heating | kW | 2.10 | |
AEER / ACOP | W/W | 3.47 / 3.80 | |
SEER Label Stars | Hot/Ave/Cold | Cool Heat | 3.0 / 3.0 / 3.0 3.0 / 2.0 / 1.5 |
Operation temp | Cooling | °C | –15 ~ 52 |
Heating | °C | –15 ~ 24 | |
System Operation Control | – | Standard, XE71-42G wired controller, Optional, YAP1F6 remote controller | |
Air Flow Volume(rated EXP) | l/s | 389 | |
Sound Pressure Level (L/M/H/SH) | dB (A) | 39 / 40 / 42 / 43 | |
Sound Pressure Level Outdoor | dB (A) | 52 | |
Sound Power Level Outdoor | dB(A) | 66 | |
Electrical | |||
Power Supply | V-Hz-Ph | 220-240-50 / 60-1 | |
Recommended Circuit Breaker | A | 20 | |
Input Current | Cooling | A | 9.6 |
Heating | A | 9.8 | |
Dimensions and Weights | |||
Indoor Dimensions (W×D×H) | mm | 840×840×240 | |
Outdoor Dimensions (W×D×H) | mm | 964x340x698 | |
Panel Dimensions (WxDxH) | mm | 950x950x52 | |
Indoor Net Weight | kg | 29 | |
Outdoor Net Weight | kg | 53 | |
Panel Net Weight | kg | 6 | |
Drain Connection | mm | Pump Φ 25mm x 1.5mm | |
Condensate Pump Lift & Head | mm | 1000 | |
Installation | |||
Connection Type | – | Flare | |
Outer Diameter | Liquid Pipe | mm (in) | 9.52 ( 3 / 8″) |
Gas Pipe | mm (in) | 15.88 (5 / 8″) | |
Max Pipe Distance | Height | m | 25* |
Max Pipe Distance | Length | m | 50 |
Refrigerant R32 | Charge | kg | 1.97 |
Pre-charged | m | 20 | |
Additional gas charge | g/m | 25 | |
Power Supply | Outdoor Unit | mm² | 3 x 2.5 |
Power Interconnection | mm² | 3 x 1.0 | |
Communication wiring | mm² | 2 x 0.75 | |
Wall Controller wiring | mm² | 2 x 0.75 |
