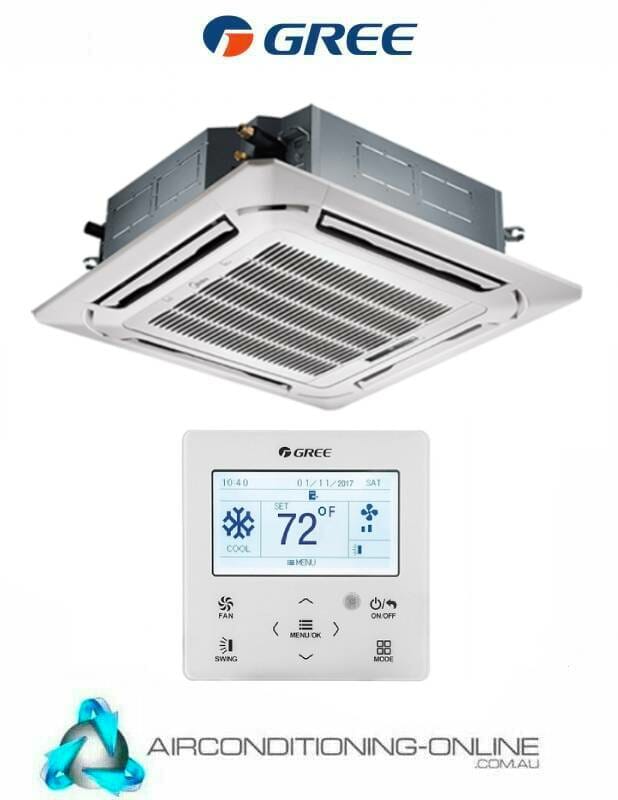

Gree GUD100T/B-S 10.1kW Reverse Cycle Inverter Cassette System
10.1 kW Cooling | 12.0 kW Heating
Gree GUD100T/B-S / GUD100W/NhB-S 10.1kW Reverse Cycle Inverter Cassette AC System | 1 Phase
Includes XE71-42/G Wall Controller and TF06 Fascia
| Model | Indoor | GUD100T/B-S | |
| Outdoor | GUD100W/NhB-S | ||
| Panel | TF06 | ||
| Capacity | Cooling | kW | 10.10 |
| Heating | kW | 12.00 | |
| Range | Cooling | kW | 3.2~11 |
| Heating | kW | 3.0~13.5 | |
| Power input | Cooling | kW | 3.04 |
| Heating | kW | 3.40 | |
| AEER / ACOP | W/W | 3.32 / 3.54 | |
| SEER Label Stars | Hot/Ave/Cold | Cool Heat | 3.0 / 3.0 / 3.0
3.0 / 1.5 / 1.0 |
| Operation temp | Cooling | °C | –15 ~ 52 |
| Heating | °C | –15 ~ 24 | |
| System Operation Control | – | Standard, XE71-42G wired controller, Optional, YAP1F6 remote controller | |
| Air Flow Volume(rated EXP) | l/s | 528 | |
| Sound Pressure Level (L/M/H/SH) | dB (A) | 42 / 46 / 48 / 50 | |
| Sound Pressure Level Outdoor | dB (A) | 59 | |
| Sound Power Level Outdoor | dB(A) | 71 | |
| Electrical | |||
| Power Supply | V-Hz-Ph | 220-240-50 / 60-1 | |
| Recommended Circuit Breaker | A | 32 | |
| Input Current | Cooling | A | 14.2 |
| Heating | A | 15.9 | |
| Dimensions and Weights | |||
| Indoor Dimensions (W×D×H) | mm | 840×840×290 | |
| Outdoor Dimensions (W×D×H) | mm | 940x460x820 | |
| Panel Dimensions (WxDxH) | mm | 950x950x52 | |
| Indoor Net Weight | kg | 33 | |
| Outdoor Net Weight | kg | 83 | |
| Panel Net Weight | kg | 6 | |
| Drain Connection | mm | Pump Φ 25mm x 1.5mm | |
| Condensate Pump Lift & Head | mm | 1000 | |
| Installation | |||
| Connection Type | – | Flare | |
| Outer Diameter | Liquid Pipe | mm (in) | 9.52 ( 3 / 8″) |
| Gas Pipe | mm (in) | 15.88 (5 / 8″) | |
| Max Pipe Distance | Height | m | 30* |
| Max Pipe Distance | Length | m | 65 |
| Refrigerant R32 | Charge | kg | 3.02 |
| Pre-charged | m | 20 | |
| Additional gas charge | g/m | 35 | |
| Power Supply | Outdoor Unit | mm² | 3 x 4.0 |
| Power Interconnection | mm² | 3 x 1.0 | |
| Communication wiring | mm² | 2 x 0.75 | |
| Wall Controller wiring | mm² | 2 x 0.75 | |
- Subtle appearance fits a variety of spaces
- Four way air discharge delivers even climate control across the roof
- Multi speed fan for ultimate flexibility
- Swing louver ensures consistent spread and avoids cold or hot pockets
- Cleanable air filter
G10 Inverter
Each U-Match is powered by Gree’s own energy efficient G10 inverter module and variable speed compressor. Our G10 inverter technology saves energy, reduces outdoor noise and keeps room temperatures steady.
Six Year Warranty
With an industry leading “Six Year, Parts and Labour Warranty”. And there are no strings attached, so if your installer is industry qualified that’s OK by Gree.
To view the Brochure of Gree Cassette System Click here
Description
10.1 kW Cooling
12.0 kW Heating
Includes Wall Controller
