Indoor | SRK71ZRA-W | ||
Outdoor | SRC71ZRA-W | ||
Power Supply | 1 Phase 220 ~ 240V 50Hz | ||
Capacity | Cooling T1 | kW | 7.1 (2.3 ~ 8.3) |
Heating H1 | 8.0 (2.0~ 10.9) | ||
Input | Cooling T1 | kW | 1.84(0.48 ~2.4) |
Heating H1 | 2.02 (0.4 ~3.4) | ||
Energy label | Cooling T1 | Stars | 3 |
Heating H1 | 3 | ||
EER | Cooling T1 | 3.86 | |
COP | Heating H1 | 3.96 | |
Sound power level (JIS C9612) | Cooling (Outdoor) | dB(A) | 65 |
Heating (Outdoor) | 63 | ||
Sound pressure level (JIS C9612) | Cooling (Indoor) | dB(A) | 43-40-36-24 |
Heating (Indoor) | 46-39-35-28 | ||
Silent mode sound pressure level | Cooling (Outdoor) | dB(A) | 43 |
Heating (Outdoor) | 41 | ||
Airflow | Cooling (Indoor) | I/s | 342-310-270-174 |
Heating (Indoor) | 425-330-288-222 | ||
External dimensions (HxWxD) | Indoor | mm | 339X1197X262 |
Outdoor | 750X880(+88)X340 | ||
Net weight | Indoor | Kg | 15.5 |
Outdoor | 58 | ||
Refrigerant piping | Liquid line | mm | ᵩ6.35 |
Gas line | ᵩ15.88 | ||
Connection method | Flare connection | ||
Refrigerant R32 | Quantity | Kg | 1.6 |
Pre charged to pipe length | m | 15 | |
Clean filter | Allergen Clear & Photocatalytic Washable Deodorizing Filter |

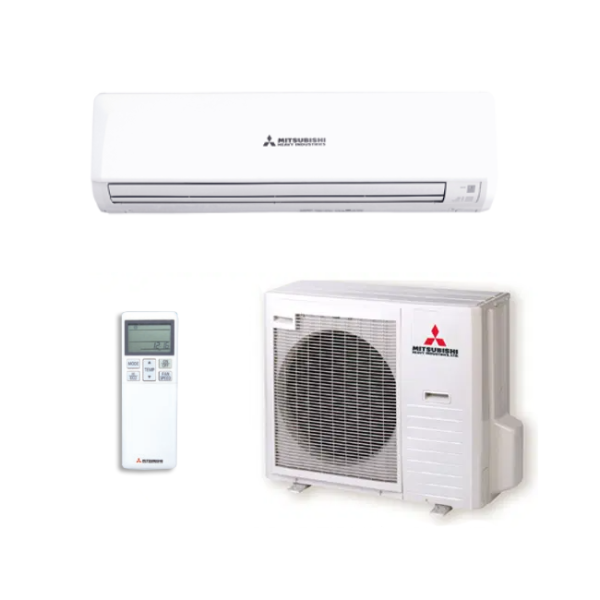

Fully Installed Package Mitsubishi Heavy Industries Bronte SRK71ZRA-W 7.1kW
Fully Installed Split System Air Conditioning
Mitsubishi Heavy Industries SRK71ZRA-W / DXK24ZRA-W
Bronte Reverse Cycle Inverter Split System Air Conditioner
Indoor SRK71ZRA-W Outdoor SRC71ZRA-W
7.1kW Cooling Capacity – 8.0kW Heating Capacity
Ideal for Dining or entertaining room 35 – 50 sqm
WHAT IS INCLUDED –
- Installed by Licensed and Arctick Certified Installers
- Single Storey House
- Back to Back Installation
- Up to 3 metres of refrigeration piping and interconnecting cables.
- Weatherproof isolator placed at outdoor condenser unit.
- Includes 20 AMP electrical circuit up to 15 metres.
- 5 years Full Manufacturer’s Warranty on Parts and Labour
- Sydney, Central Coast, and Newcastle Only
*T and C Applies
Description
7.1 kW Cooling
8.0 kW Heating
Clean & Jet Air Technology
