Fully Installed Package Daikin FDYAN160A-CV 15.5kW Inverter Ducted System | Back lit Controller |1 Phase

SKU: FDYAN160A-CV Fully Installed

Fully Installed Ducted System Air Conditioning

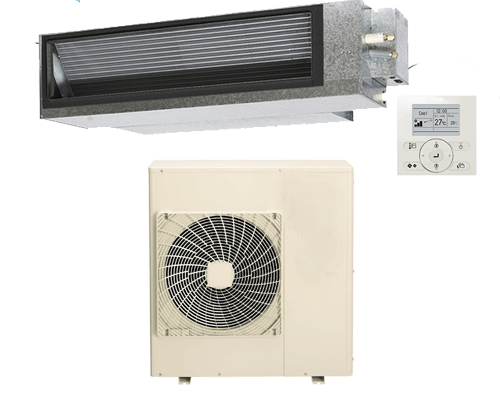

DAIKIN FDYAN160A-CV 15.5kW Inverter Ducted System | Backlit Controller 1 Phase

15.5 kW Cooling
18.0 kW Heating

Indoor: FDYAN160AV1
Outdoor: RZA160CV1
Controller: BRC1E63





zip money

INDOOR UNIT FDYAN160AV1
OUTDOOR UNIT RZA160CV1
Rated Capacity Cool (kW) 15.5
Heat (kW) 18.0
Capacity Range Cool (kW) 7.3-16.3
Heat (kW) 7.3-18.2
Power Input (Rated) Cool (kW) 4.95
Heat (kW) 4.90
E.E.R/C.O.P C/H 3.13/3.67
TCSPF (Residential) Hot/Average/ Cold 4.05/3.76/3.87
HSPF (Residential) Hot/Average/ Cold 3.87/3.53/3.12
Airflow Rate  (Nominal/Max) l/s 950/1120
Indoor Sound Level (H)  @ 1.5m dBA (C/H) 47.9/50.7
Piping Length m 50
Indoor Fan Speeds H/M/L
Dimensions (HxWxD) Indoor (mm) 360x1520x935
Outdoor (mm) 1430x940x320
Weight Indoor (kg) 55
Outdoor (kg) 78
Power Supply V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type Hermetically Sealed Swing Type
Refrigerant R32
Pipe Sizes Liquid (mm) 9.5 (Flare)
Gas (mm) 15.9 (Flare)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 245×1152
Return Air Opening mm 2×400  (Oval)
Outdoor Operating  Range Cool (°CDB) -5 to 46
Heat (°CWB) -15 to 16
EPA Sound Power  Level dBA 75
Outdoor Sound Level  (H) @ 1m Pressure dBA (C/H) 56/58



FDYQN160LA-LV is the old model which has been replaced by FDYAN160A-CV [R32]

Description

15.5 kW Cooling
18.0 kW Heating

Inverter Ducted Technology | R32 New Model
