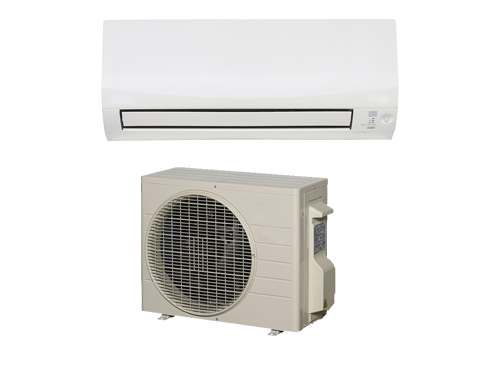

Fully Installed Package DAIKIN Cora FTXV50W 5.0kW

SKU: FTXV50W | Fully Installed

Fully Installed Split System Air Conditioning

Daikin FTXV50W Reverse Cycle Inverter Split System / R32 refrigerant

Ideal for sitting room or home theatre 25-35 sqm

WHAT IS INCLUDED –

  • Installed by Licensed and Arctick Certified Installers
  • Single Storey House
  • Back to Back Installation
  • Up to 3 metres of refrigeration piping and interconnecting cables.
  • Weatherproof isolator placed at outdoor condenser unit.
  • Includes 20 AMP electrical circuit up to 15 metres.
  • 5 years Full Manufacturer’s Warranty on Parts and Labour
  • Sydney, Central Coast, and Newcastle Only
    *T and C Applies


zip money

INDOOR UNIT FTXV46UVMA
OUTDOOR UNIT RXV46UVMA
Rated Capacity Cool (kW) 4.6
Heat (kW) 4.7
Capacity Range Cool (kW) 0.9-5.5
Heat (kW) 1.0-6.7
Indoor Airflow Rate (Hi) Cool (l/s) 203
Heat (l/s) 202
Indoor Fan Speeds C/H 5 steps, quiet and automatic
Energy Label/Star Ratings Cool 3
Heat 3.5
Front Panel Colour White
Power Supply  1 phase, 220-240V, 50Hz
Power Input (Rated) Cool (kW) 1.20
Heat (kW) 1.13
E.E.R / C.O.P Cool/Heat 3.83/4.16
A.E.E.R / A.C.O.P Cool/Heat 3.79/4.03
Dimensions (HxWxD) Indoor (mm) 285x770x223
Outdoor (mm) 695x930x350
Weight Indoor (kg) 9
Outdoor (kg) 51
Compressor Type Hermetically sealed swing type
Refrigerant Type R32
Max Pipe Length (m) 30
Max Level Difference (m) 20
Pipe Sizes Liquid (mm) 6.4
Gas (mm) 12.7
Outdoor Operating Range (Outdoor Temp) Cool (CDB) -10 to 46
Heat (CWB) -15 to 18
Indoor Sound Level (H/SL) Cool (dBA) 44/26
Heat (dBA) 43/26
Outdoor Sound Level (H/SL) Cool (dBA) 47/44
Heat (dBA) 48/45
Outdoor EPA Sound Power Level (H) Cool (dBA) 59
Heat (dBA) 60

Description

5.0 kW Cooling
6.0 kW Heating

Fully Installed Package
