Fully Installed Daikin FDYAN125A-CV 12.5kW Inverter Ducted System | Back lit Controller 1 Phase

SKU: FDYAN125A-CV | Package

Fully Installed Ducted System Air Conditioning

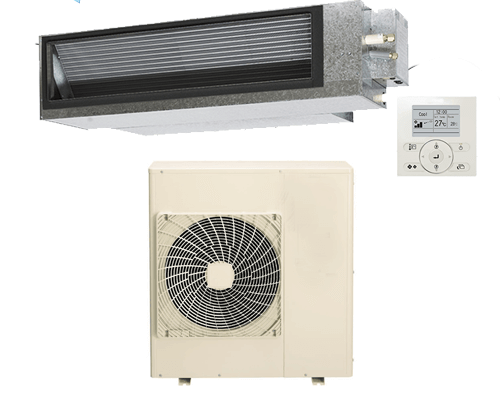

DAIKIN FDYAN125A-CV 12.5kW Inverter Ducted System | Back lit Controller 1 Phase

Indoor: FDYAN125AV1
Outdoor: RZA125CV1
Controller : BRC1E63

WHAT IS INCLUDED –

  • Installed by Licensed and Arctick Certified Installers
  • Single Storey House
  •  6-7 Outlets with 2 Zones | Round or MDO Square Type Grills
  • 25 AMP electrical circuit up to 15 metres.
  • Outdoor unit positioned on PVC slab | PVC mounting blocks | Rubber feet.
  • 5 years Full Manufacturer’s Warranty on Parts and Labour
    *T and C applies

$7,995.00

zip money
INDOOR UNIT FDYAN125AV1
OUTDOOR UNIT RZA125CV1
Rated Capacity Cool (kW) 12.5
Heat (kW) 15.0
Capacity Range Cool (kW) 4.0-14.0
Heat (kW) 4.1-16.0
Power Input (Rated) Cool (kW) 3.94
Heat (kW) 4.00
E.E.R/C.O.P C/H 3.17/3.75
TCSPF (Residential) Hot/Average/ Cold 4.26/3.91/4.02
HSPF (Residential) Hot/Average/ Cold 4.31/3.31/2.77
Airflow Rate  (Nominal/Max) l/s 755/840
Indoor Sound Level (H)  @ 1.5m dBA (C/H) 44.2/45.5
Piping Length m 50
Indoor Fan Speeds H/M/L
Dimensions (HxWxD) Indoor (mm) 360x1520x935
Outdoor (mm) 990x940x320
Weight Indoor (kg) 55
Outdoor (kg) 78
Power Supply V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type Hermetically Sealed Swing Type
Refrigerant R32
Pipe Sizes Liquid (mm) 9.5 (Flare)
Gas (mm) 15.9 (Flare)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 185×852
Return Air Opening mm 2×400 (Oval)
Outdoor Operating  Range Cool (°CDB) -5 to 46
Heat (°CWB) -15 to 16
EPA Sound Power  Level dBA 72
Outdoor Sound Level  (H) @ 1m Pressure dBA (C/H) 53/56



Description

12.5 kW Cooling
15.0 kW Heating

Fully Installed Package | R32 New Model
