Fully Installed Daikin FDYAN100A-CV 10.0kW Inverter Ducted System | Back lit Controller 1 Phase

SKU: FDYAN100A-CV Fully Installed

Fully Installed Ducted System Air Conditioning

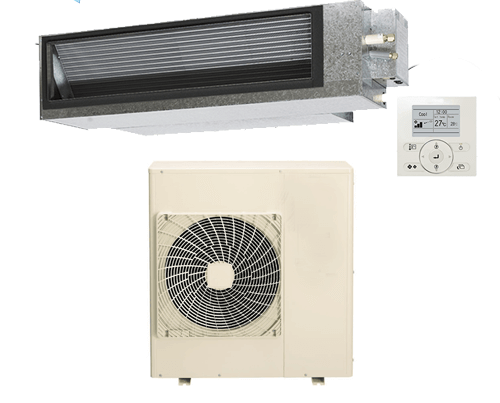

DAIKIN FDYAN100A-CV 10.0kW Inverter Ducted System | Backlit Controller 1 Phase

Indoor: FDYAN100AV1

Outdoor: RZA100CV1

Controller : BRC1E63

Single Fan Outdoor

  • 5 Outlets and 2 Zones
  • Based on Single Storey dwelling
  • Installed by License and Arctick Certified Installers
  • Outdoor unit to be placed on Concrete slab | PVC Slab | PVC Mounting Blocks.
  • Weatherproof isolator placed at outdoor.
  • Use of PVC or Colourbond Ducts.
  • Includes electrical circuit up to 15 metres.
  • 5 years full manufacturer warranty on Parts and Labour.
    *T and C Applies



zip money

INDOOR UNIT FDYAN100AV1
OUTDOOR UNIT RZA100CV1
Rated Capacity Cool (kW) 10.0
Heat (kW) 12.5
Capacity Range Cool (kW) 3.2-11.2
Heat (kW) 3.5-14.0
Power Input (Rated) Cool (kW) 3.10
Heat (kW) 3.35
E.E.R/C.O.P C/H 3.23/3.73
TCSPF (Residential) Hot/Average/ Cold 4.28/3.88/3.97
HSPF (Residential) Hot/Average/ Cold 3.85/3.48/3.04
Airflow Rate  (Nominal/Max) l/s 680/800
Indoor Sound Level (H)  @ 1.5m dBA (C/H) 43.5/45.8
Piping Length m 50
Indoor Fan Speeds H/M/L
Dimensions (HxWxD) Indoor (mm) 300x1210x900
Outdoor (mm) 990x940x320
Weight Indoor (kg) 45
Outdoor (kg) 69
Power Supply V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type Hermetically Sealed Swing Type
Refrigerant R32
Pipe Sizes Liquid (mm) 9.5 (Flare)
Gas (mm) 15.9 (Flare)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 185×852
Return Air Opening mm 2×350
(Oval)
Outdoor Operating  Range Cool (°CDB) -5 to 46
Heat (°CWB) -15 to 16
EPA Sound Power  Level dBA 71
Outdoor Sound Level  (H) @ 1m Pressure dBA (C/H) 52/54

FDYQN100LB-LV is the old model and has been replaced by  FDYAN100A-CV [R32].

Description

10.0 kW Cooling
12.5 kW Heating

Single Fan Outdoor | Night Quiet Mode
