Indoor Unit
Outdoor Unit
Operation Type |
ASTH30KMTD
AOTH03KMTD Reverse Cycle |
Power Source V/Ph/Hz | 230 / 1 / 50 |
Cooling Capacity kW (Rated (Min – Max)) | 8.50 (2.9 – 10.5) |
Heating Capacity kW (Rated (Min – Max)) | 9.00 (2.7 – 11.2) |
Input Power Cooling kW (Rated (Min – Max)) | 2.49 (0.6 – 4) |
Input Power Heating kW (Rated (Min – Max)) | 2.39 (0.48 – 3.6) |
EER Cooling kW/kW | 3.41 |
COP Heating kW/kW | 3.77 |
Star Rating Cooling (0-10) (Hot / Average / Cold) | 4 / 3.5 / 4 |
Star Rating Heating (0-10) (Hot / Average / Cold) | 4 / 3 / 2 |
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.56 / 5.284 / 5.716 |
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.55 / 4.534 / 3.841 |
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 6.233 / 6.729 / 7.766 |
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.611 / 5.02 / 4.353 |
Running Current amps (Cooling / Heating) | 11 / 10.6 |
Moisture Removal l/hr | 4.4 |
Indoor Sound Pressure Cooling dBA (High / Quiet) | 51 / 32 |
Indoor Sound Pressure Heating dBA (High / Quiet) | 48 / 32 |
Outdoor Sound Pressure dBA (Cooling / Heating) | 53 / 55 |
Outdoor Sound Power dBA | 65 |
Air Circulation (Indoor – High Fan) Cooling l/sec | 381 |
Air Circulation (Indoor – High Fan) Heating l/sec | 350 |
Indoor Unit Dimensions mm (Height x Width x Depth) | 340 x 1150 x 280 |
Indoor Unit Weight kg | 16.50 |
Outdoor Unit Dimensions mm (Height x Width x Depth) | 788 x 940 x 320 |
Outdoor Unit Weight kg | 53.00 |
Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
Pipe Length m (Max (Precharged)) | 50 (20) |
Max Height Difference m | 30 |
Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
Operation Range Heating °CDB (Min to Max) | -15 to 24 |
Refrigerant Type | R32 |

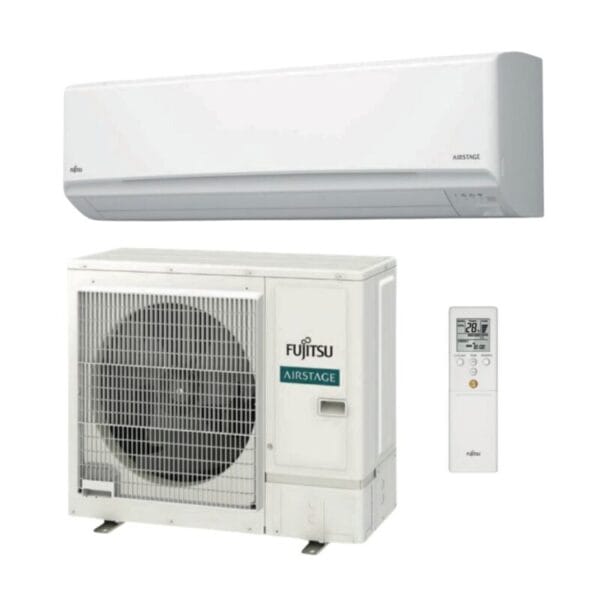

FUJITSU SET-ASTH30KMTD 8.5kW Lifestyle Inverter Split System Air Conditioner
8.5kW Cooling | 9.0kW Heating
Fujitsu Lifestyle Range SET-ASTH30KMTD Inverter Split System Air Conditioner
Includes Indoor ASTH30KMTD | Outdoor AOTH30KMTD
Wireless Remote
Comfort Functions
- 10º C Heat Operation The room temperature can be set to go no lower than 10°C, ensuring that the room does not get too cold when not occupied.
- Up/Down Swing Louvre The up/down louvre automatically swings up and down. Right/Left Swing Louvre¹ The right/left louvre automatically swings in either direction.
- Double Swing Automatic¹ Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
- Automatic Louvre The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
- Auto Shut Louvre The auto shut louvres close or open automatically when the unit stops or starts.
- Automatic Air Flow Adjustment When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
- Auto Restart Should there be temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
- Auto-Changeover The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
- Powerful Mode Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable
Convenience Functions
- Sleep Timer The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
- Program Timer This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
- Filter Sign Set the interval frequency to be reminded to clean the air filter on your unit.
- On-Off Timer ON-OFF timer can be set to operate once every 24 hours.
- Weekly Timer Different ON-OFF timers can be set for up to 7 days.
- Auto-Off Timer² The unit automatically stops operating when a fixed time has elapsed.
Description
8.5 kW Cooling
9.0 kW Heating
Human Sensor Inbuilt | Super Quiet Mode
