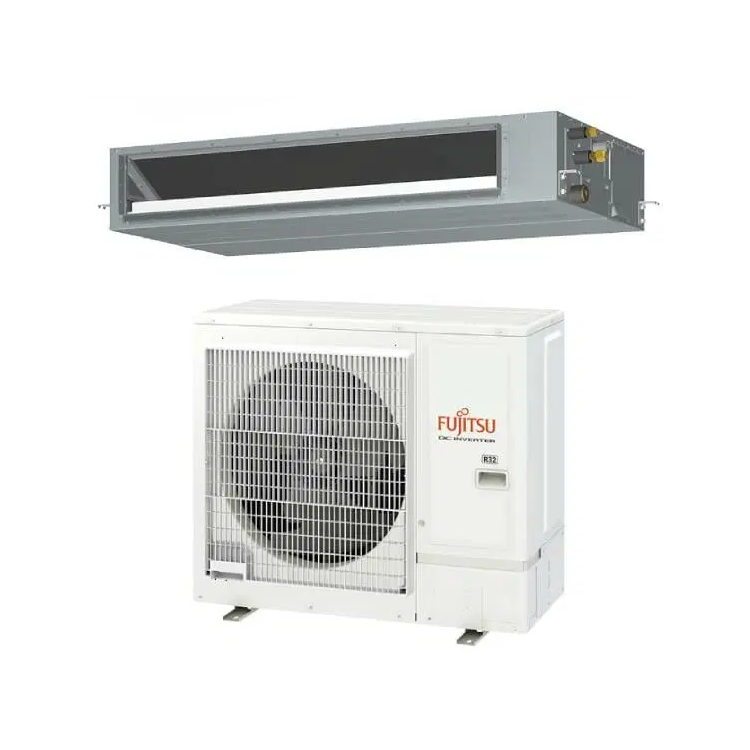

FUJITSU SET-ARTH24KMTAP-HP 7.1kW Mid Static Ducted Slimline High Performance Air Conditioner

SKU: SET-ARTH24KMTAP-HP / ARTH24KMTAP-HP / AOTH24KCTA

7.1 kW Cooling | 8.0 kW Heating | 1 Phase
FUJITSU SET-ARTH24KMTAP-HP 7.1kW Mid Static Ducted Slimline High Performance Air Conditioner
Indoor ARTH24KMTAP-HP | Outdoor AOTH24KCTA (HP)
Wired Controller | Blue Fin Heat Exchanger | Compact 240mm high chassis
5 Years Manufacturer’s Warranty

- 7.1kW
- 8.5kW

$3,320.00

Or own it from $127.69 weekly for 6 months*

Or pay in slices, no interest ever

6.35 x 12.7mm (1/4 x 1/2)> Ducted Air Conditioner Systems> Fujitsu Air Conditioning> Fujitsu Ducted Air Conditioners> Fujitsu Mid Static Slimline R32 (HP) Air Conditioners> View All Ducted Systems

Set Code				SET-ARTH24KMTAP-HP
Model No.	Indoor unit			ARTH24KMTAP-HP
	Outdoor unit			AOTH24KCTA
Power Source	V / Ph / Hz			230 / 1 / 50
Capacity	Cooling (Rated (Min – Max))		kW	7.10 (3.3 – 8.5)
	Heating (Rated (Min – Max))		kW	8.00 (3.6 – 10.5)
Input Power	Cooling (Rated (Max))		kW	1.85 (2.72)
	Heating (Rated (Max))		kW	1.93 (2.89)
EER	Cooling		kW / kW	3.84
COP	Heating		kW / kW	4.15
Star Rating	Cooling: Hot/Average/Cold			3 / 2.5 / 2.5
	Heating: Hot/Average/Cold			3 / 2.5 / 3
TCSPF1	Residential (Hot/Average/Cold)		kW	4.712 / 4.474 / 4.598
HSPF2	Residential (Hot/Average/Cold)		kW	4.962 / 4.491 / 4.043
Running current	Cooling/Heating		amps	8.0 / 8.4
Moisture Removal			I/hr	1.7
Sound Pressure Level	Indoor (Cooling)	High/Quiet	dBA	38 / 27
	Indoor (Heating)	High/Quiet		38 / 27
	Outdoor (Cooling/Heating)	High		48 / 50
Sound Power Level	Outdoor	High		67
Static Pressure Range	Min – Max		PA	50 – 150
Air Circulation	Indoor (Cooling)	High Fan	I/sec	416
	Indoor (Heating)	High Fan		416
Dimensions H x W x D	Indoor		mm	240 x 1000 x 700
	Outdoor			988 x 940 x 320
Net Weight	Indoor		kg	31
	Outdoor			63
Connection Pipe Diameter (Liquid/Gas)			mm	6.35 / 12.7
Pipe Length (Max (Precharged))			m	75 (30)
Max Height Difference			m	30
Operation Range	Outdoor (Min – Max)	Cooling	°CDB	-10 to 50
		Heating		-15 to 24
Refrigerant	Type			R32
	Charge		kg	1,800

The Fujitsu General Mid Static Slimline R32 (HP) models are designed with a narrow 240mm high chassis and a built-in drain pump, for easy installation in tighter bulkhead and ceiling applications. With a maximum pipe length of 75m, these models are ideal for installation on the roof and in plant rooms in residential apartment buildings.

Key features

Auto Changeover The unit automatically switches between operating modes based on the temperature setting and room temperature.
Auto Restart Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
Blue Fin Heat Exchanger Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
Connectable Fresh Air Duct Allows introduction of fresh air to the occupied space.
Connectable Distributing Duct Systems are capable of attaching a field-supplied branch ducts distributing the airflow.
Economy Mode Limits the maximum operation current, and performs operation with the power consumption suppressed.
Fresh Air Intake Fresh air can be taken in by a fan which can be connected using an external control unit.

Filter Sign Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

On-Off Timer ON-OFF timer can be set to operate once every 24 hours.

Program Timer This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

Weekly Timer Different ON-OFF times can be set for up to 7 days.

All DC With All DC, electricity loss is decreased and power consumption reduced.
Automatic Air Flow Adjustment The micro-processor automatically adjusts the air flow to follow changes in room temperature.

FUJITSU SET-ARTH24KMTAP-HP 7.1kW Mid Static Ducted Slimline High Performance Air Conditioner – Brochure

Ducted air conditioning is surely the ultimate in comfort. The Fujitsu ducted models offer quiet, efficient operation, are easy to maintain, and operated via a wall mounted LCD control that controls all functions of the system.
