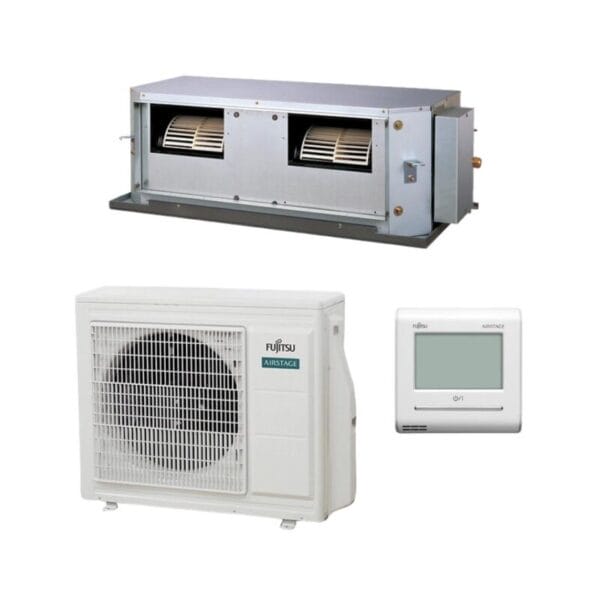

SET: SET-ARTH24KHTA
Indoor unit | ARTH24KHTA |
Outdoor unit | AOTH24KBTA |
Operation Type | Reverse Cycle |
Power Source V/Ph/Hz |
230 / 1 / 50 |
Cooling Capacity kW (Rated (Min – Max)) |
7.10 (1.8 – 8.1) |
Heating Capacity kW (Rated (Min – Max)) |
8.00 (2 – 9.1) |
Input Power Cooling kW (Rated (Max)) |
2.14 (2.53) |
Input Power Heating kW (Rated (Max)) |
2.05 (2.45) |
EER Cooling kW/kW |
3.32 |
COP Heating kW/kW |
3.9 |
Star Rating Cooling (0-10) (Hot / Average / Cold) |
3 / 3 / 3 |
Star Rating Heating (0-10) (Hot / Average / Cold) |
3 / 2.5 / 1.5 |
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) |
4.912 / 4.611 / 4.875 |
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) |
4.825 / 4.11 / 3.444 |
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) |
5.299 / 5.489 / 5.931 |
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) |
4.831 / 4.41 / 3.707 |
Running Current amps (Cooling / Heating) |
9.4 / 9 |
Moisture Removal l/hr |
0.5 |
Indoor Sound Pressure Cooling dBA (High / Quiet) |
34 / 27 |
Indoor Sound Pressure Heating dBA (High / Quiet) |
34 / 27 |
Outdoor Sound Pressure dBA (Cooling / Heating) |
48 / 50 |
Outdoor Sound Power dBA |
68 |
Static Pressure Range PA (Min to Max) |
60 to 210 |
Air Circulation (Indoor – High Fan) Cooling l/sec |
500 |
Air Circulation (Indoor – High Fan) Heating l/sec |
500 |
Indoor Unit Dimensions mm (Height x Width x Depth) |
400 x 1050 x 500 |
Indoor Unit Weight kg |
38.00 |
Outdoor Unit Dimensions mm (Height x Width x Depth) |
716 x 820 x 315 |
Outdoor Unit Weight kg |
42.00 |
Piping Connects mm Ø (Liquid / Gas) |
6.35 / 12.7 |
Pipe Length m (Max (Precharged)) |
30 (20) |
Max Height Difference m |
25 |
Operation Range Cooling °CDB (Min to Max) |
-10 to 50 |
Operation Range Heating °CDB (Min to Max) |
-15 to 24 |
Refrigerant Type | R32 |
Refrigerant Amount g |
1,250 |
