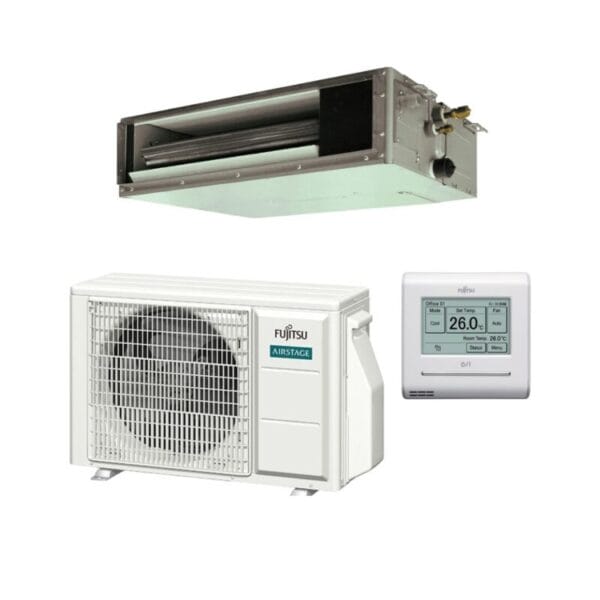

FUJITSU SET-ARTH12KSLAP 3.5kW Inverter Bulkhead Ducted System
FUJITSU SET-ARTH12KSLAP 3.5kW Inverter Bulkhead Ducted System
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 240 / 1 / 50 |
| Cooling Capacity kW (Rated (Min – Max)) | 3.50 (0.9 – 4.1) |
| Heating Capacity kW (Rated (Min – Max)) | 4.00 (0.9 – 5.1) |
| Input Power Cooling kW (Rated (Max)) | 0.98 (1.41) |
| Input Power Heating kW (Rated (Max)) | 1.1 (1.97) |
| EER Cooling kW/kW | 3.57 |
| COP Heating kW/kW | 3.64 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3 / 2.5 / 2.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 2.5 / 2 / 1.5 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.645 / 4.269 / 4.374 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.371 / 3.934 / 3.492 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.97 / 5.006 / 5.313 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.373 / 4.109 / 3.73 |
| Running Current amps (Cooling / Heating) | 4.6 / 5.1 |
| Moisture Removal l/hr | 1.5 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 31 / 23 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 31 / 23 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 47 / 48 |
| Outdoor Sound Power dBA | 61 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 181 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 181 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 198 x 700 x 450 |
| Indoor Unit Weight kg | 15.50 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 542 x 799 x 290 |
| Outdoor Unit Weight kg | 32.00 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 9.52 |
| Pipe Length m (Max (Precharged)) | 20 (15) |
| Max Height Difference m | 15 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 46 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 850 |
- Features a compact design to allow for flexible installation in the best available space.
-
All DCWith All DC, electricity loss is decreased and power consumption reduced.
-
Auto RestartShould there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
-
Auto ChangeoverThe unit automatically switches between operating modes based on the temperature setting and room temperature.
-
Blue Fin Heat ExchangerCorrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
-
Connectable Distributing DuctSystems are capable of attaching a field-supplied branch ducts distributing the airflow.
-
Economy ModeLimits the maximum operation current, and performs operation with the power consumption suppressed.
-
On-Off TimerON-OFF timer can be set to operate once every 24 hours.
-
Weekly + Setback TimerWeekly + setback timer can set temperature for two-time spans and for each day of the week.
-
Error Code Display
Ducted air conditioning is surely the ultimate in comfort. The Fujitsu ducted models offer quiet, efficient operation, are easy to maintain, and operated via a wall mounted LCD control that controls all functions of the system.
Description
3.5 kW Cooling
4.0 kW Heating
450mm Deep Bulkhead | R32
