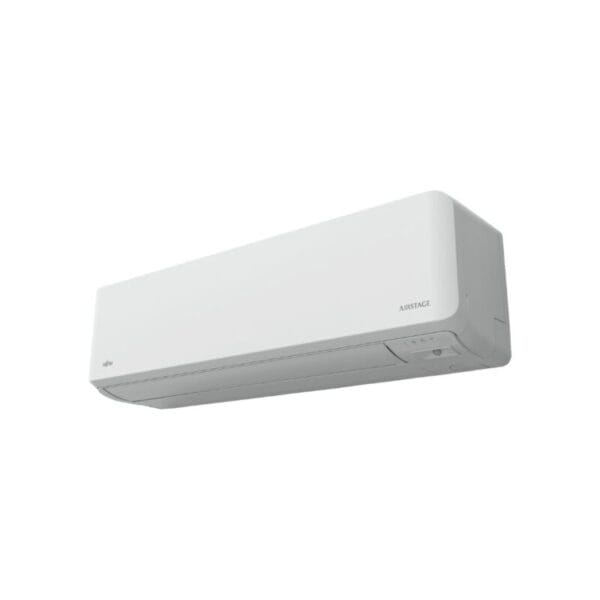

FUJITSU ASTH18KMTD 4.9kW Multi Type System Air Conditioner Indoor Unit Only | R32

SKU: ASTH18KMTD

Fujitsu. Wall Mounted Lifestyle | Multi Type System Air Conditioner | Indoor Unit Only

Indoor unit: ASTH18KMTD | R32

Part of a Multi System
5 Years Manufacturer’s Warranty



Model

Operation Type

ASTH18KMTD

Reverse Cycle

Power Source V/Ph/Hz 230 / 1 / 50
Capacity Class kW 5
Running Current amps (Cooling / Heating) 0.35 / 0.35
Indoor Sound Pressure Cooling dBA (High / Quiet) 45 / 29
Indoor Sound Pressure Heating dBA (High / Quiet) 46 / 29
Air Circulation (Indoor – High Fan) Cooling l/sec 272
Air Circulation (Indoor – High Fan) Heating l/sec 283
Indoor Unit Dimensions mm (Height x Width x Depth) 280 x 980 x 240
Indoor Unit Weight kg 12.50
Piping Connects mm Ø (Liquid / Gas) 6.35 / 12.7
Operation Range Cooling °CDB (Min to Max) 18 to 32
Operation Range Heating °CDB (Min to Max) 16 to 30
Refrigerant Type R32

FUJITSU ASTH18KMTD 4.9kW Multi Type System Air Conditioner Indoor Unit Only | R32 – Brochure

Description

4.9 kW Cooling
5.5 kW Heating

Part of a Multi System | R32 Range
