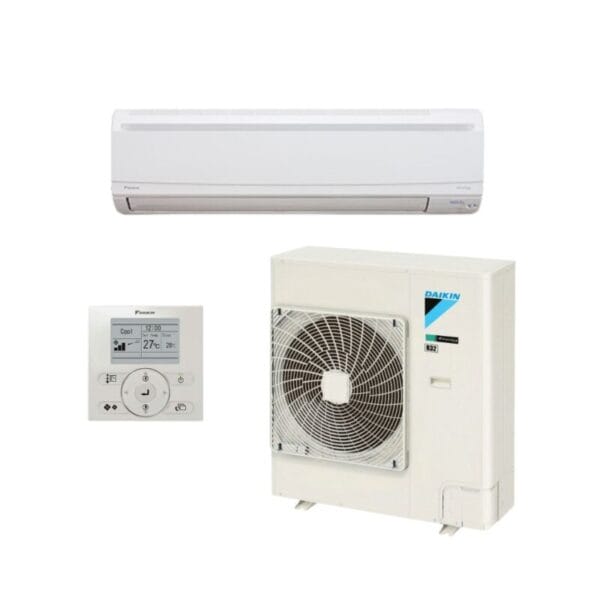

DAIKIN SKY AIR FTXC71A-AV 7.1kW Reverse Cycle Split System Air Conditioner | 1 Phase

SKU: FTXC71A-AV

DAIKIN SKY AIR FTXC71A-AV 7.1kW Reverse Cycle Split System Air Conditioner | 1 Phase





zip money

71


Model Name

Indoor unit FTXC71AV1A
Outdoor unit RXC71AV1A
Power supply 1 Phase, 220-240V, 50Hz
Cooling capacity1,3 Rated (Min. – Max.)

kW

7.1

(3.2-8.0)

Heating capacity2,3 Rated (Min. – Max.)

kW

8.0

(3.5-9.0)

Power consumption Cooling1 kW 2.22
Heating2 kW 2.37
EER Cooling kW/kW 3.20
COP Heating kW/kW 3.38
AEER Cooling 3.13
ACOP Heating 3.31
TCSPF (Cooling) Commercial / Residential Hot 4.86 / 4.46
Average 4.89 / 3.94
Cold 5.20 / 4.02
HSPF (Heating) Commercial / Residential Hot 4.47 / 4.46
Average 4.16 / 3.94
Cold 3.79 / 3.52
Indoor unit Colour Fresh white
Airflow rate (H / M / L) /s 300 / 267 / 233
m3/min 18.0 / 16.0 / 14.0
Sound pressure level4 (H / M / L) dB(A) 45.0 / 42.0 / 40.0
Sound power level (H / M / L) dB(A) 61 / 58 / 56
Dimensions (HXWXD) mm 290X1,050X238
Machine weight kg 13
Certified operation range Cooling °CWB 14 to 25
Heating °CDB 15 to 27
Outdoor Colour Ivory White
unit Compressor Type Hermetically sealed swing type
Motor output kW 2.4
Refrigerant charge (R-32)

kg

2.60

(Charged for 30 m)

Sound pressure level 4 Cooling / Heating dB(A) 48 / 50
Night quiet mode dB(A) 44
Sound power level dB(A) 67
Dimensions (HXWXD) mm 990X940X320
Machine weight kg 69
Certified operation range Cooling °CDB -5 to 50
Heating °CWB -15 to 15.5
Piping connections Liquid (Flare) mm o/ 9.5
Gas (Flare) mm o/ 15.9
Drain Indoor unit mm VP13 (I.D.o/ 13XO.D. o/ 18)
Outdoor unit mm o/ 26.0 (Hole)
Max. interunit piping length m 75 (Equivalent length 90)
Max. installation height difference m 30
Heat insulation Both liquid and gas piping



71                                                        85                                                       100


Model Name

Indoor unit FAA71BVMA FAA85BVMA FAA100BVMA
Outdoor unit RZAV71CY1 RZAV85CY1 RZAV100CY1
Power supply 3 Phase, 380-415V, 50Hz
Cooling capacity1,3 Rated (Min. – Max.)

kW

7.1

(3.2-8.0)

8.5

(4.0-10.0)

10.0

(5.0-11.2)

Heating capacity2,3 Rated (Min. – Max.)

kW

8.0

(3.5-9.0)

10.0

(4.1-11.2)

11.2

(5.1-12.5)

Power consumption Cooling1 kW 2.22 2.59 3.11
Heating2 kW 2.37 3.01 3.48
EER Cooling kW/kW 3.20 3.28 3.22
COP Heating kW/kW 3.38 3.32 3.22
AEER Cooling 3.13 3.22 3.17
ACOP Heating 3.31 3.27 3.17
TCSPF (Cooling) Commercial / Residential Hot 4.86 / 4.46 5.01 / 4.61 5.03 / 4.63
Average 4.89 / 3.94 5.07 / 4.12 5.13 / 4.18
Cold 5.20 / 4.02 5.41 / 4.23 5.49 / 4.33
HSPF (Heating) Commercial / Residential Hot 4.47 / 4.46 4.49 / 4.48 4.66 / 4.64
Average 4.16 / 3.94 4.17 / 3.93 4.25 / 3.95
Cold 3.79 / 3.52 3.77 / 3.49 3.77 / 3.42
Indoor unit Colour Fresh White
Airflow rate (H / M / L) /s 300 / 267 / 233 433 / 383 / 317
m3/min 18.0 / 16.0 / 14.0 26.0 / 23.0 / 19.0
Sound pressure level4 (H / M / L) dB(A) 45.0 / 42.0 / 40.0 49.0 / 45.0 / 41.0
Dimensions (HXWXD) mm 290X1,050X238 340X1,200X240
Machine weight kg 13 17
Certified operation range Cooling °CWB 14 to 25
Heating °CDB 15 to 27
Outdoor Colour Ivory White
unit Compressor Type Hermetically sealed swing type
Motor output kW 2.40 3.30
Refrigerant charge (R-32)

kg

2.60

(Charged for 30 m)

2.90

(Charged for 30 m)

3.75

(Charged for 30 m)

Sound pressure level4 Cooling / Heating dB(A) 48 / 50 52 / 53 51 / 53
Night quiet mode dB(A) 44 48 47
Sound power level dB(A) 67 71 70
Dimensions (HXWXD) mm 990X940X320 1,430X940X320
Machine weight kg 69 78 93
Certified operation range Cooling °CDB -5 to 50
Heating °CWB -15 to 15.5
Piping connections Liquid (Flare) mm o/ 9.5
Gas (Flare) mm o/ 15.9
Drain Indoor unit mm VP13 (I.D. o/ 13XO.D. o/ 18)
Outdoor unit mm o/ 26.0 (Hole)
Max. interunit piping length m 75 (Equivalent length 90)
Max. installation height difference m 30
Heat insulation Both liquid and gas piping

Description

7.1 kW Cooling
8.0 kW Heating

Includes BRC1E63 Controller
