MODEL | FXUQ71AVEB | ||
Power supply | 1 -phase, 220-240 V, 50 Hz | ||
Cooling capacity | Btu/h | 27,500 | |
kW | 8.2 | ||
Heating capacity | Btu/h | 30,700 | |
kW | 9.0 | ||
Power | Cooling | kW | 0.090 |
consumption | Heating | 0.073 | |
Casing | Fresh White | ||
Airflow rate (H/HM/M/ML/L) | Cooling | l/s | 375/325/267 |
m3/min | 22.5/19.5/16 | ||
Sound level (H/HM/M/ML/L) | Cooling | dB(A) | 40/38/36 |
Heating | 58/56/54 | ||
Dimensions (HxWxD) | mm | 198*950*950 | |
Machine weight | kg | 26 | |
Piping connections | Liquid (Flare) | mm | 9.5 |
Gas (Flare) | 15.9 | ||
Drain | VP20 (External Dia. 26/1nternal Dia. 20) | ||

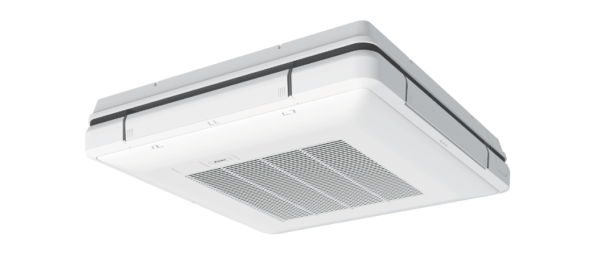

- Unit body and suction panel adopted round shapes and realised a slim appearance design. The unit can be used for various locations such as the ceilings with no cavity and bare ceilings.
- Flaps close automatically when the unit stops, which gives a simple appearance.
- Unified slim height of 198 mm for all models that gives the unified impression even when models with different capacities are installed in the same area.
- With adoption of the individual flap control, airflow direction adjustment can be individually set for each air outlet. 5 directions of airflow and auto-swing can be selected with wired remote controller BRC1E63, which realises the optimum air distribution.
- Control of the airflow rate has been improved from 2-step to 3-step control. Auto airflow rate control can be selected with wired remote controller BRC1E63.
- Built-in electronic expansion valve eliminates the need for a BEV unit, which improves flexibility of installation.
- Energy efficiency has been improved thanks to the adoption of a new heat exchanger with smaller tubes, DC fan motor and DC drain pump motor.
- Drain pump is equipped as a standard accessory, and the lift height has been improved from 500 mm to 600 mm.
- Depending on installation site requirements or room conditions, 2-way, 3-way and 4-way discharge patterns are available.
Description
Cooling: 8.0kW
Heating: 9.0kW
This slim and stylish indoor unit
