MODEL | FXEQ20AV36 | ||
Power supply | 1 -phase, 220-240 V, 50 Hz | ||
Cooling capacity | Btu/h | 7,500 | |
kW | 2.2 | ||
Heating capacity | Btu/h | 8,500 | |
kW | 2.5 | ||
Power | Cooling | kW | 0.026 |
consumption | Heating | 0.022 | |
Casing | Galvanised steel plate | ||
Airflow rate (H/HM/M/ML/L) | Cooling | l/s | 100/90/82/73/67 |
m3/min | 6.0/5.4/4.9/4.4/4. O | ||
Heating | l/s | 100/93/85/78/70 | |
m3/min | 6.0/5.6/5.1/4.7/4.2 | ||
Sound level (H/HM/M/ML/L) | Cooling | dB(A) | 30/29/28/27/26 |
Heating | 33/31/29/28/26 | ||
Dimensions (HxWxD) | mm | 200x840x470 | |
Machine weight | kg | 17 | |
Piping connections | Liquid (Flare) | mm | 6.4 |
Gas (Flare) | 12.7 | ||
Drain | PVC26 (External Dia. 26/1nternal Dia. 20) | ||
Panel (Option) | Model | BYEP40AW1 | |
Colour | Fresh white | ||
Dimensions(HxWxD) | mm | 80x950x550 | |
Weight | kg | 8 |

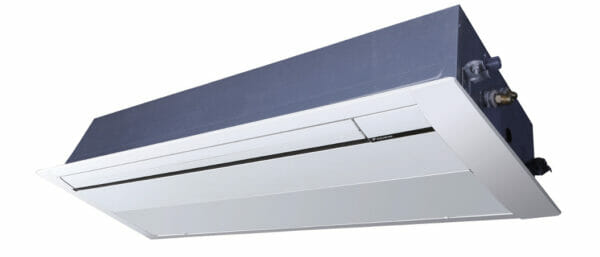

- The body features a compact design with a height of just 200 mm and depth 470 mm, making the installation possible in tight ceiling spaces.
- The swinging of horizontal and vertical swing flaps can be adjusted freely with the remote controller, providing 3D airflow to every corner of the room.
- Control of airflow rate can be selected from 5-step control and quiet operation mode, which provides comfortable airflow.
- DC motor is adopted both in the fan and drain pump of the indoor unit, not only enhancing the energy saving performance, but also reducing the operating sound and the vibration incurred to the unit.
- While creating a cozy indoor environment, the unit can prevent the suspended ceiling from being soiled by adjusting its louvre angle.
- The novel smooth panel design makes dust difficult to accumulate, thus causing the cleaning more conveniently.
- Drain pump is equipped as standard accessory with 850 mm lift.
- Servicing of common parts such as the control box etc. can be performed easily only with the suction panel removed.
Description
Cooling: 2.2kW
Heating: 2.5kW
Slim design for flexible installation
