Model Name |

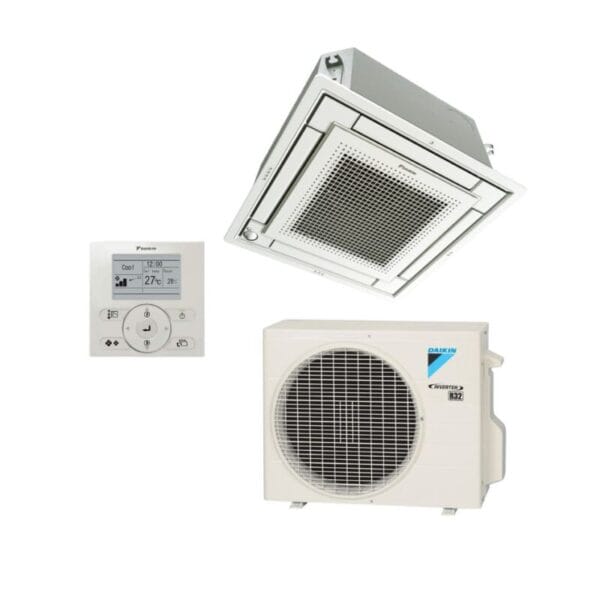

Indoor unit | FFA25AVM | ||
Outdoor unit | RZAC25EVM | |||
Power supply | 1 Phase, 220-240V / 220-230V, 50 / 60Hz | |||
Cooling capacity1,3 Rated (Min. – Max.) | kW | 2.5 (1.2-3.0) | ||
Heating capacity2,3 Rated (Min. – Max.) | kW | 3.2 (1.0-3.7) | ||
Power consumption | Cooling1 | kW | 0.54 | |
Heating2 | kW | 0.75 | ||
EER | Cooling | kW/kW | 4.63 | |
COP | Heating | kW/kW | 4.27 | |
AEER | Cooling | 4.47 | ||
ACOP | Heating | 4.16 | ||
TCSPF (Cooling) Commercial / Residential | Hot | 6.08 / 5.61 | ||
Average | 5.92 / 4.78 | |||
Cold | 6.18 / 4.72 | |||
HSPF (Heating) Commercial / Residential | Hot | 4.75 / 4.75 | ||
Average | 4.52 / 4.39 | |||
Cold | 4.14 / 3.93 | |||
Indoor unit | Colour | Unit | ——— | |
Decoration panel | White | |||
Airflow rate (H / M / L) | /s | 150 / 133 / 108 | ||
m3/min | 9.0 / 8.0 / 6.5 | |||
Sound pressure level4 (H / M / L) | dB(A) | 31.0 / 28.5 / 25.0 | ||
Sound power level | dB(A) | 48 | ||
Dimensions (HXWXD) | Unit | mm | 260X575X575 (+63) 5 | |
Decoration panel | mm | 46X620X620 | ||
Machine weight | Unit | kg | 16 | |
Decoration panel | kg | 2.8 | ||
Certified operation range | Cooling | °CWB | 14 to 23 | |
Heating | °CDB | 10 to 30 | ||
Outdoor | Colour | Ivory White | ||
unit | Compressor | Type | Hermetically sealed swing type | |
Motor output | kW | 0.8 | ||
Refrigerant charge (R-32) | kg | 0.73 (Charged for 10 m) | ||
Sound pressure level 4 | Cooling / Heating | dB(A) | 46 / 47 | |
Sound power level | dB(A) | 59 | ||
Dimensions (HXWXD) | mm | 550X675X284 | ||
Machine weight | kg | 28 | ||
Certified operation range | Cooling | °CDB | -10 to 46 | |
Heating | °CWB | -15 to 18 | ||
Piping connections | Liquid (Flare) | mm | o/ 6.4 | |
Gas (Flare) | mm | o/ 9.5 | ||
Drain | Indoor unit | mm | VP20 (I.D. o/ 20XO.D. o/ 26) | |
Outdoor unit | mm | o/ 16.0 (Hole) | ||
Max. interunit piping length | m | 20 (Equivalent length 45) | ||
Max. installation height difference | m | 15 | ||
Heat insulation | Both liquid and gas piping |
