DAIKIN FDYQN200LC-MY 19.5kW Inverter Ducted System | Backlit Controller 3 Phase

SKU: FDYQN200LC-MY

Daikin FDYQN200LC-MY Inverter R410A. Indoor FDYQN200LCV1  – Outdoor RZQ200MY1
19.5kW Cooling – 22.4kW Heating capacity
Wall Controller BRC1E63
3 Phase



zip money

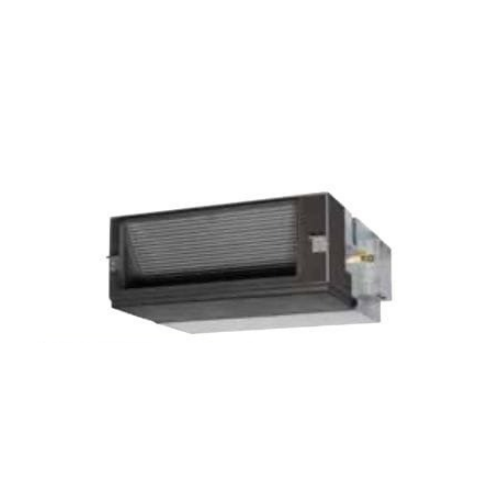

INDOOR UNIT FDYQN200LCV1

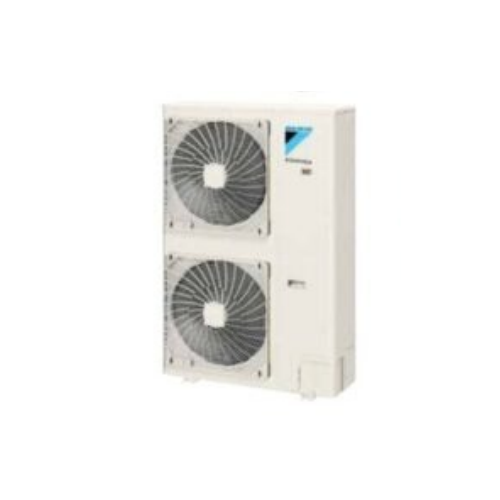

OUTDOOR UNIT RZQ200MY1
Rated Capacity Cool (kW) 19.5
Heat (kW) 22.4
Capacity Range Cool (kW) 10.1-19.5
Heat (kW) 11.2-22.4
Power Input (Rated) Cool (kW) 6.11
Heat (kW) 6.85
E.E.R/C.O.P C/H 3.19/3.27
TCSPF (Residential) Hot/Average/ Cold 3.57/3.14/3.11
HSPF (Residential) Hot/Average/ Cold 3.25/2.97/2.63
Airflow Rate  (Nominal/Max) l/s 1400/1600
Indoor Sound Level (H) @ 1.5m dBA (C/H) 46.0/46.0
Piping Length m 50
Indoor Fan Speeds H/M/L
Dimensions (HxWxD) Indoor (mm) 470x1400x997
Outdoor (mm) 1430x940x320
Weight Indoor (kg) 85
Outdoor (kg) 138
Power Supply V/Hz 3 Phase, 380-415V, 50Hz
Compressor Type Hermetically Sealed Scroll Type
Refrigerant R410A
Pipe Sizes Liquid (mm) 9.5 (Brazed)
Gas (mm) 19.1 (Brazed)
Drain (mm) BSP 3/4 inch Internal Thread
Supply Air Opening mm (HxW, Flange) 350×1118
Return Air Opening mm 393×1118 (Flange)
Outdoor Operating Range Cool (°CDB) -5 to 43
Heat (°CWB) -20 to 16
EPA Sound Power Level dBA 74
Outdoor Sound Level (H) @ 1m Pressure dBA (C/H) 58/59



Improved Energy Efficiency

Improved Energy Efficiency

Achieved through the use of a DC Fan motor, cross-pass heat exchanger and increased outdoor coil passes.

Ultra-Compact

Compact Indoor Unit

Low profile height of ≤360mm to fit comfortably into the tight roof space of a modern home.

Compact-Footprint

Space Saving Outdoor Unit

Models up to 19.5kW are encased in a space saving side discharge outdoor unit allowing for flexible placement.

Night Quiet Mode

Night Quiet Mode

Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.

R22-Retrofit Capability

R22 Retrofit Capability

Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (5.0-15.5kW Models).

Australian-Made

Australian Made

Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.



Description

19.5 kW Cooling
22.4 kW Heating

R410A | Night Quiet Mode
