Model name |
CDXM25RVMA | |||
Power supply | 1 phase, 220-240 V, 50 Hz / 1 phase, 220-230 V, 60 Hz | |||
Indoor air ow rate | H | Cooling | l/s | 158 (335) |
Heating | (cfm) | 158 (335) | ||
Indoor sound pressure level*1 | H/L/SL | Cooling | dB(A) | 35/31/29 |
Heating | 35/31/29 | |||
Indoor sound power level | H | Cooling | dB(A) | 49 |
Heating | 49 | |||

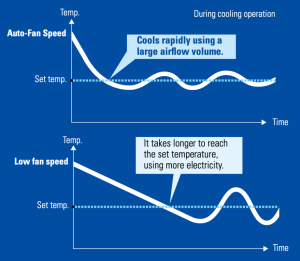

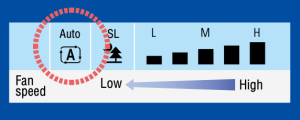

Fan speed | 5 steps, quiet and automatic | |||
Temperature control | Microcomputer control | |||
Dimensions | H x W x D | mm | 200 x 900 x 620 | |
Machine weight | kg | 25 | ||
Piping connections | Liquid ( are) |
mm |
ø6.4 | |
Gas ( are) | ø9.5 | |||
Drain | VP 20 (Inside diameter ø20, Outside diameter ø26) | |||
Heat insulation | Both liquid and gas pipes | |||
External static pressure | 40 |
