Brivis Ice ADD-ON COOLING DIXU22Z/ DOSC22Z91 22kW Non-Inverter R410A Three Phase

SKU: DIXU22Z/ DOSC22Z91

Single Phase Indoor Coil: DIXU18Z

Single Phase CDU: DOSC18Z91



Add on ICE™ – DualComfort™
System Overview 22
Power Supply V-ph-Hz 415-3-50
Mode Conventional
Nominal Capacity kW 22
Rated Capacity kW 22.2
Capacity Range kW NA
Rated Input W 5.84
AEER 3.8
ICE™ Outdoor Unit DO-SC22Z91
Power Supply V-ph-Hz 415-3-50
Maximum Input Current A 20.9
Compressor Type Scroll
Sound Pressure Level @3m dB(A) 56
Sound Power Level dB(A) 70
Dimensions (L x W x H) mm 1258 × 450 × 1390
Net Weight kg 144
Refrigerant Type R410A
Gas Connection Size mm 28.6
Liquid Connection Size 12.7
Recommended Interconnecting Pipe Size – Gas (mm) 1 – 10m 28.6
Recommended Interconnecting Pipe Size – Gas (mm) 10 – 30m 28.6
Recommended Interconnecting Pipe Size – Liquid (mm) 1 – 10m 12.7
Recommended Interconnecting Pipe Size – Liquid (mm) 10 – 30m 12.7
Precharged Length m 15
Max. Pipe Length m 30
Max. Height Diff (CDU below) m 8
Max. Height Diff (CDU above) m 8
Ambient Temperature Limits ºC  -5 ~ 46

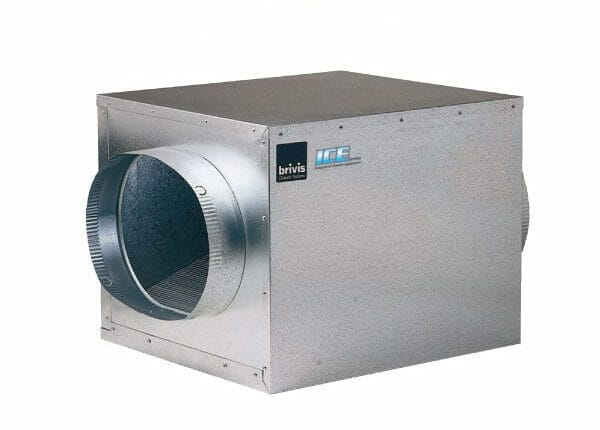

ICE™ Indoor Unit DI-XU22Z
Power Supply V-ph-Hz NA
Airflow Rated L/s 1100
Airflow Minimum L/s 900
Dimensions (L x W x H) mm 777 x 748 × 549
Net  Weight kg 41
Duct Connection (Outlet) mm Ø 500
Duct Connection (Inlet) mm Ø 450
Condensate Drain Connection mm 20
Gas Refrigerant Pipe Connections mm 28.6
Liquid Refrigerant Pipe Connections mm 12.7
Operating Temperature Limits ºC 17 ~ 32
Rated capacities rated in accordance with AS3823 with 5m charged length. With our policy of continuous improvement, we reserve the right to change, or discontinue at any time, specifications or designs without notice.

Description

22 kW Cooling
