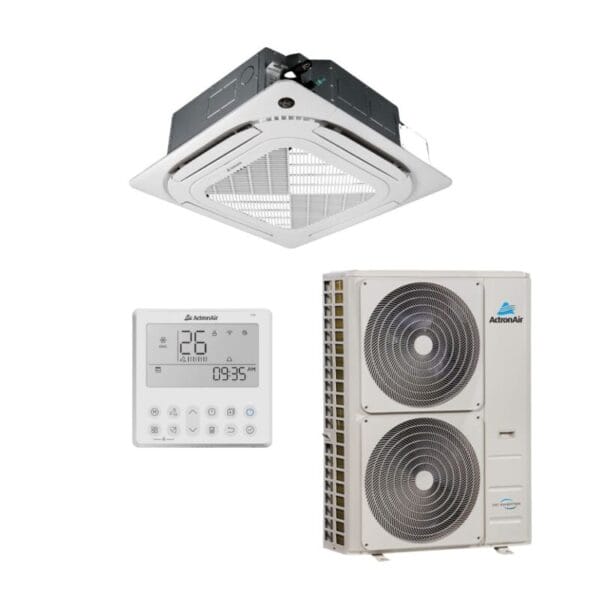

ActronAir CRE-100CS 10.0kW Inverter Cassette Split System Air Conditioner
10.95 kW Cooling | 11.95 kW Heating
ActronAir CRE-100CS / CRC-100CS / C4-P3 10.0kW Reverse Cycle Inverter Cassette Air Conditioner 1 Phase
Premium Wired Controller Included.
Built In Drain Pump Fitted as Standard
Includes Cassette 4-way Panel
Note: Requires panel C4-P3
| Technical Information | ||
| OUTDOOR MODEL |
CRC-100CS |
|
| INDOOR MODEL |
CRE-100CS |
|
| Nett (Rated) Capacity (kW) (AS/NZS3823.1.1) | Cooling (min – max) |
10.95 (3.60 – 16.00 |
| Heating (min – max) |
11.95 (2.75 – 17.30) |
|
| Input Power (kW) (AS/NZS3823.1.1) | Cooling Rated |
2.58 |
| Heating Rated |
2.84 |
|
| 1 EER Rated (AS/NZS3823.1.1)
2 COP Rated (AS/NZS3823.1.1) |
Cooling |
4.24 |
| Heating |
4.21 |
|
|
Star Rating (AS/NZS3823.1.1) |
Cooling |
5 / 4 / 4.5 |
| Heating |
3.5 / 3 / 2.5 |
|
| Power Supply – (V / Ph / Hz) | Outdoor | 220 – 240 V / 1Ph+N / 50Hz |
|
Rated Load Amps (AS/NZS3823.1.1) |
Cooling | 11.7 |
| Heating | 12.2 | |
| Full Load Amps (AS/NZS3823.1.1) | 31.0 | |
| Circuit Breaker Amps | 32.0 | |
| 3 Suggested Minimum Mains Cable Size | 6.0mm2 | |
| 3 Suggested Minimum Indoor to Outdoor Power Cable Size & Type | 1.0mm2
2 Core + Earth |
|
|
IP Rating |
Outdoor | IPX4 |
| Indoor | IPX0 | |
| Compressor Type | Inverter Twin-Rotary | |
| Refrigerant | R32 | |
|
Airflow Range Indoor (l/s) |
High | 505 |
| Medium | 459 | |
| Low | 350 | |
|
Outdoor Dimensions (mm) |
Depth | 415 |
| Height | 1333 | |
| Width | 952 | |
|
Indoor Dimensions (mm) |
Depth | 830 |
| Height | 287 | |
| Width | 830 | |
|
Indoor Panel Dimensions (mm) |
Depth | 950 |
| Height | 55 | |
| Width | 950 | |
|
4 Nominal Weight (kgs) |
Outdoor | 95.1 |
| Indoor | 35.3 | |
| Indoor Sound Pressure Level (dBA) (Low / Med / High) |
54 / 49 / 46 |
|
| 5 Outdoor Sound Pressure Level (dBA) 1m | 59.9 | |
| 6 Outdoor Sound Power Level (dBA) | 71 | |
|
Outdoor Operating Range (°C) |
Cooling | 0°C to 50°C |
| Heating | -20°C to 24°C | |
| MEPS Compliant | Yes | |
A perfect fit for suspended or ‘floating’ ceilings, the ceiling-mounted Cascade cassette system covers a wide range of applications, such as residential, retail and commercial spaces.
The Cascade has many state-of-the-art features, including 360° airflow, which delivers air from not only all four sides but from all four corners as well. It’s also stylishly attractive, with a discrete design that complements any surroundings.
Stylish, space-saving convenience
Aesthetically pleasing and unobtrusive, Cascade sits well out of the way, providing maximum comfort without attracting attention.
For complete coverage, Cascade delivers 360º airflow from not only its four sides but also from its four corners.
Independent vane control gives you the flexibility to set different angles in each direction allowing you to customise airflow depending on where you need it most.
More cooling in extreme heat
With a market-leading operating range of up to 50°C, Cascade is guaranteed to keep working in hotter temperatures. Not only that, Cascade is also able to maintain far better capacity in extreme heat than comparable systems, which provides you with more cooling comfort right when you need it most.
Twin system for double the comfort
The Cascade cassette system has an additional feature, ideal for especially long rooms, or two adjacent areas of the same size. Intelligent engineering allows you to connect two smaller indoor units to the one outdoor unit. In a format that is essentially a ‘master and slave’ connection between the two indoor heads, it means the single Cascade system is able to condition more than the single space.
| Features | ||
| OUTDOOR MODEL | CRC-IOOCS | |
| INDOOR MODEL | CRE-IOOCS | |
| Wired Controller | WC-02 | |
| Remote Controller – Optional | RC-03 | |
| Easy Connect Wi-Fi App | Optional | |
| Follow Me Function | Yes | |
| Sleep | Yes | |
| Turbo | Yes | |
| Self Clean Operation | Yes | |
| Auto Defrost Function | Yes | |
| Timer On/Off | Yes | |
| 7-Day Scheduler / Weekly timer | Yes | |
| Dehumidification | Yes | |
| Drain Pump | Yes | |
| Hanging Brackets | Yes | |
| Elevating Grill – up to 4m | No | |
| 3600 Airflow | Yes | |
| Independent Louvre Control | Yes | |
| Supply Duct Outlet | Optional | |
| Outside Air Intake | Optional | |
| Hydrophilic Aluminium Coil Protection | Indoor | Yes |
| Outdoor | Outdoor | Yes |
| Louvre Memory | Yes | |
| Demand Response | Ready | |
| Indoor Fan Speed | 5-Speed | |
| Outdoor Fan Speed | 5-Speed | |
| Auto Restart Function | Yes | |
| Fault Alarm Output Port | Yes | |
| Remote On/Off | Yes | |
Description
11.95 kW Heating
Includes Premium Wired Controller | Built In Drain Pump
