ActronAir Advance CRV210T / EAA210S / EFV210S 19.00kW Two Piece Indoor Split Ducted Air Conditioner System | 3 Phase

SKU: CRV210T / EAA210S / EFV210S

ActronAir Advance CRV210T / EAA210S / EFV210S 19.00kW Two Piece Indoor Split Ducted Air Conditioner System | 3 Phase
Includes Indoor EAA210S / EFV210S – 8 Zone Integrated & 20m CAT5E Cable – Yellow | Includes Outdoor CRV210T
Optional Controllers: NEO TOUCH Master Wall Controller (Black/White) / 7 day wall controller (White/Grey)

Optional Zone Barrels:

Supported Insulated Copper Pair Coil
25.4 mm (1″) | 12.7 mm (1/2″)

5 Years Manufacturer’s Warranty

Or own it from $354.23 weekly for 6 months*

Or pay in slices, no interest ever

Select Controller

Clear

Or own it from $354.23 weekly for 6 months*

Or pay in slices, no interest ever

MODEL COMBINATION CAPACITY RATINGS AND ELECTRICAL DATA

Outdoor Unit

Indoor Coil Section

Indoor Fan Section

Total Cooling Capacity (kW)

Total Heating Capacity (kW)

Airflow (l/s) (Min / Nom / Max)

RLA
(OD / ID / Total)

FLA
(OD / ID / Total)

CRV160T

EAA160S

EFV160S

14.25

14.75

600 / 750 / 900

6.0 / 2.2 / 8.2

11.9 / 3.2 / 15.1

CRV180T

EAA180S

EFV180S

16.30

16.70

680 / 850 / 1020

7.8 / 2.7/ 10.5

11.8 / 4.4 / 16.2

CRV210T

EAA210S

EFV210S

19.40

19.60

810 / 1020 / 1230

7.8 / 3.6 / 11.4

16.4 / 5.5 / 21.9

CRV240T

EAA240S

EFV240S

21.55

22.50

900 / 1130 / 1360

8.4 / 3.8 / 12.2

16.6 / 6.0 / 22.6

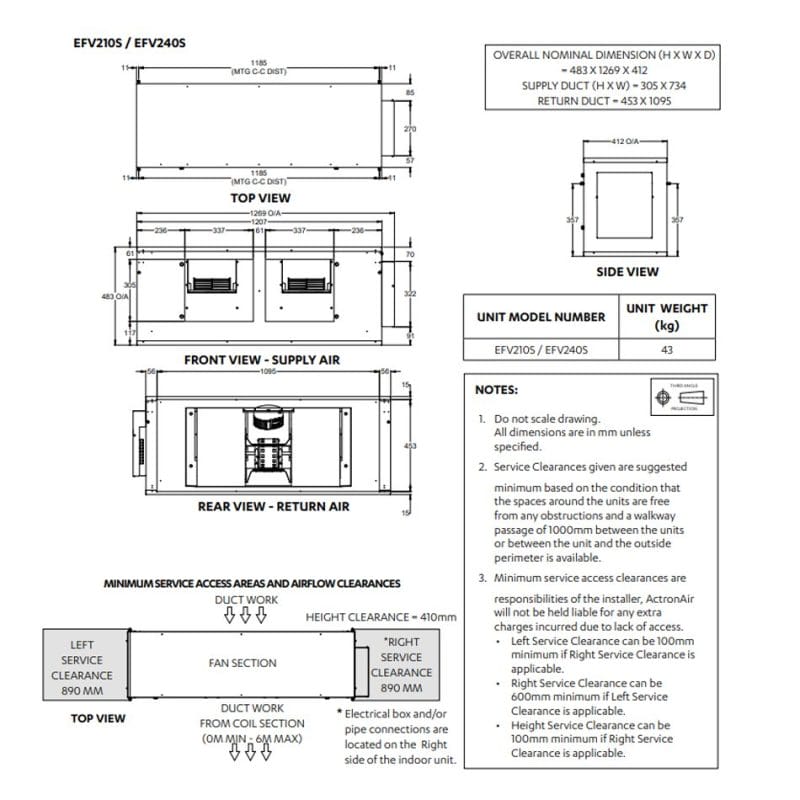

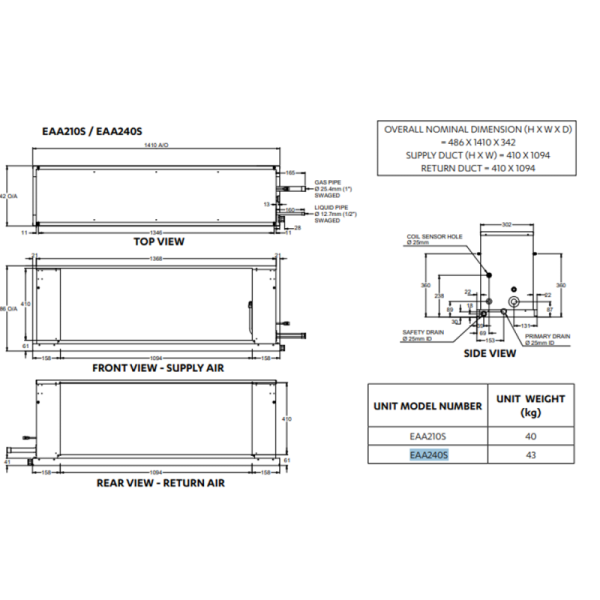

WEIGHTS AND DIMENSIONS
Coil Section	Weight (kg)	Height (mm)	Depth (mm)	Width (mm)	Fan Section	Weight (kg)	Height (mm)	Depth (mm)	Width (mm)
EAA160S	29	410	342	1252	EFV160S	31	408	362	1072
EAA180S	39	435	342	1360	EFV180S	31	408	362	1072
EAA210S	40	486	342	1410	EFV210S	43	483	412	1269
EAA240S	43	486	342	1410	EFV240S	43	483	412	1269

Indoor Features

Integrated zone card
All indoor units come with integrated zoning ready for up to 8 zones.

Additional sensing points
The Advance can support up to 3 wall controllers and 3 remote sensors, each of which can be assigned to a zone to provide better temperature control for better comfort.

Safety Drain Tray included as standard
Removes the need to purchase as an additional accessory.

Outdoor Features

Louvered Grille
The Advance’s powder coated louvered grille guard allows for better airflow and protection against Australia’s extreme weather conditions.

Coated Coil Protection
The Advance uses blue fin epoxy coated protection on its indoor and outdoor coils, which helps to reduce corrosion from the harsh Australian conditions, as well as assisting the defrosting process, thus improving heating efficiency.

Quieter Operation
Our Advance system’s outdoor unit features the latest fan technology to deliver smoother and quieter operation.

Sound Reduction System (SRS) technology
The Advance utilises a compressor jacket (fitted as standard) which helps to muffle the compressor’s noise. Dual vibration absorption rubbers and a compressor plate also work together to enhance vibration absorption, which minimises noise transfer to the base. The outdoor unit also has a unique, stiffened design that reduces vibration transfer throughout the cabinet.
